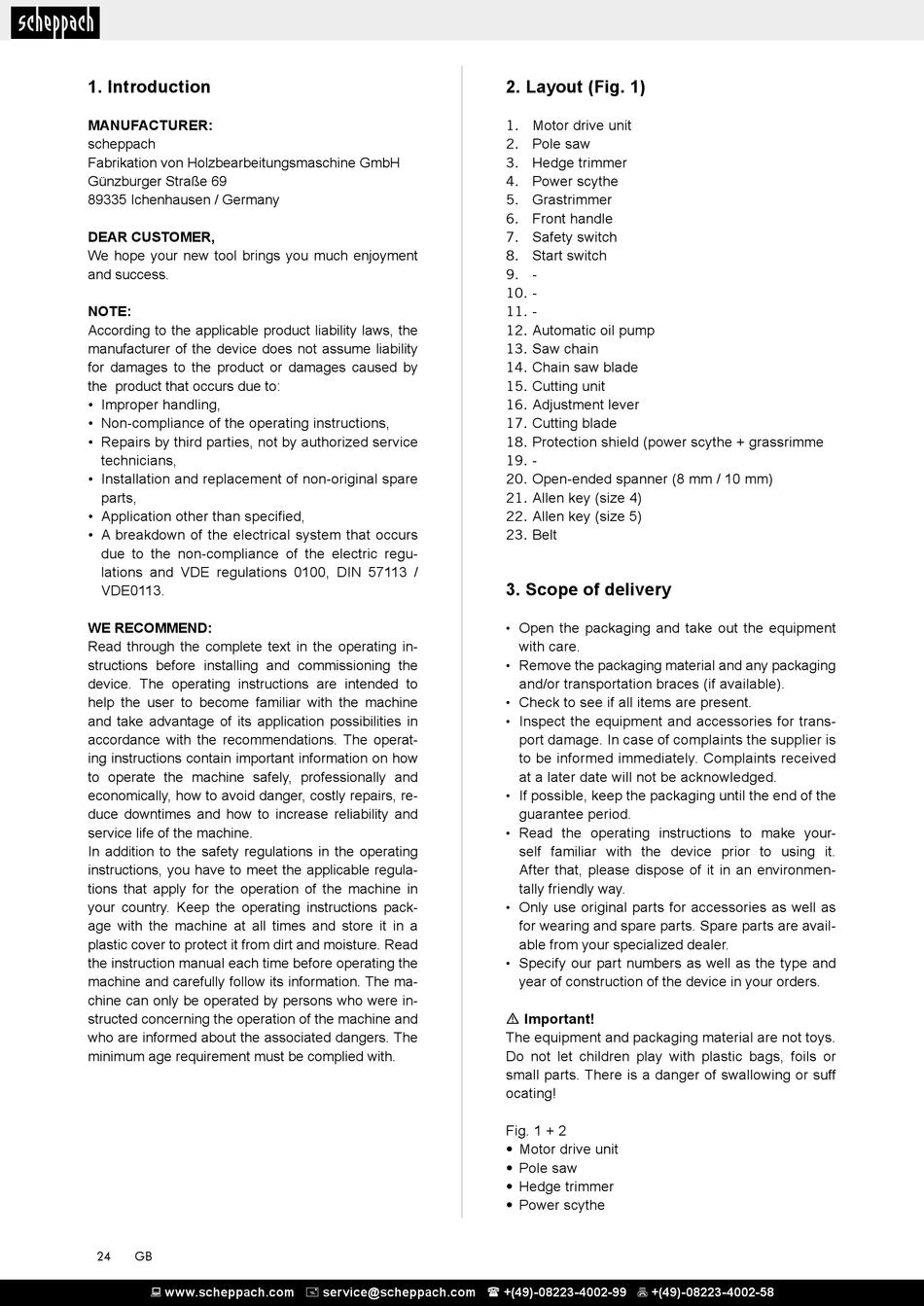

1. Introduction

MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschine GmbH
Günzburger Straße 69
89335 Ichenhausen / Germany
DEAR CUSTOMER,
We hope your new tool brings you much enjoyment
and success.
NOTE:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
• A breakdown of the electrical system that occurs
due to the non-compliance of the electric regu-
lations and VDE regulations 0100, DIN 57113 /
VDE0113.
WE RECOMMEND:
Read through the complete text in the operating in-
structions before installing and commissioning the
device. The operating instructions are intended to
help the user to become familiar with the machine
and take advantage of its application possibilities in
accordance with the recommendations. The operat-
ing instructions contain important information on how
to operate the machine safely, professionally and
economically, how to avoid danger, costly repairs, re-
duce downtimes and how to increase reliability and
service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in
your country. Keep the operating instructions pack-
age with the machine at all times and store it in a
plastic cover to protect it from dirt and moisture. Read
the instruction manual each time before operating the
machine and carefully follow its information. The ma-
chine can only be operated by persons who were in-
structed concerning the operation of the machine and
who are informed about the associated dangers. The
minimum age requirement must be complied with.
24 GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
2. Layout (Fig. 1)
1. Motor drive unit
2. Pole saw
3. Hedge trimmer
4. Power scythe
5. Grastrimmer
6. Front handle
7. Safety switch
8. Start switch
9. -
10. -
11. -
12. Automatic oil pump
13. Saw chain
14. Chain saw blade
15. Cutting unit
16. Adjustment lever
17. Cutting blade
18. Protection shield (power scythe + grassrimme
19. -
20. Open-ended spanner (8 mm / 10 mm)
21. Allen key (size 4)
22. Allen key (size 5)
23. Belt

3. Scope of delivery

Open the packaging and take out the equipment
•
with care.
Remove the packaging material and any packaging
•
and/or transportation braces (if available).
Check to see if all items are present.
•
Inspect the equipment and accessories for trans-
•
port damage. In case of complaints the supplier is
to be informed immediately. Complaints received
at a later date will not be acknow ledged.
• If possible, keep the packaging until the end of the
guarantee period.
Read the operating instructions to make your-
•
self familiar with the device prior to using it.
After that, please dispose of it in an environmen-
tally friendly way.
Only use original parts for accessories as well as
•
for wearing and spare parts. Spare parts are avail-
able from your specialized dealer.
Specify our part numbers as well as the type and
•
year of construction of the device in your orders.
m Important!
The equipment and packaging material are not toys.
Do not let children play with plastic bags, foils or
small parts. There is a danger of swallowing or suff
ocating!
Fig. 1 + 2
• Motor drive unit
• Pole saw
• Hedge trimmer
• Power scythe
