General Information; Overall Dimensions; Safety Devices; Safety Information - FIMAR 7/SN Benutz Und Wartungsanleitung

other reason, before lifting the pot's lid, put the machine in standby by pressing the "START/STOP" key
again. This will also stop the timer, which will resume together with the machine only by first lowering the lid
and then pressing the "START/STOP" button again.
Before lifting the pot's lid, put the machine in standby, otherwise the timer will continue the countdown even if
the machine is in standby. When the time is over, the machine will stop.
If you want to work without the timer, press the key with the "hand" symbol (manual) twice. The LED next to it
will come on (it excludes the timer) and by pressing the "START/STOP" key the machine will start in manual
mode.
Once the cycle has ended, press the "START/STOP" key and the machine will stop.
To turn off the display completely, press the "START/STOP" key and hold it for about 3 seconds.

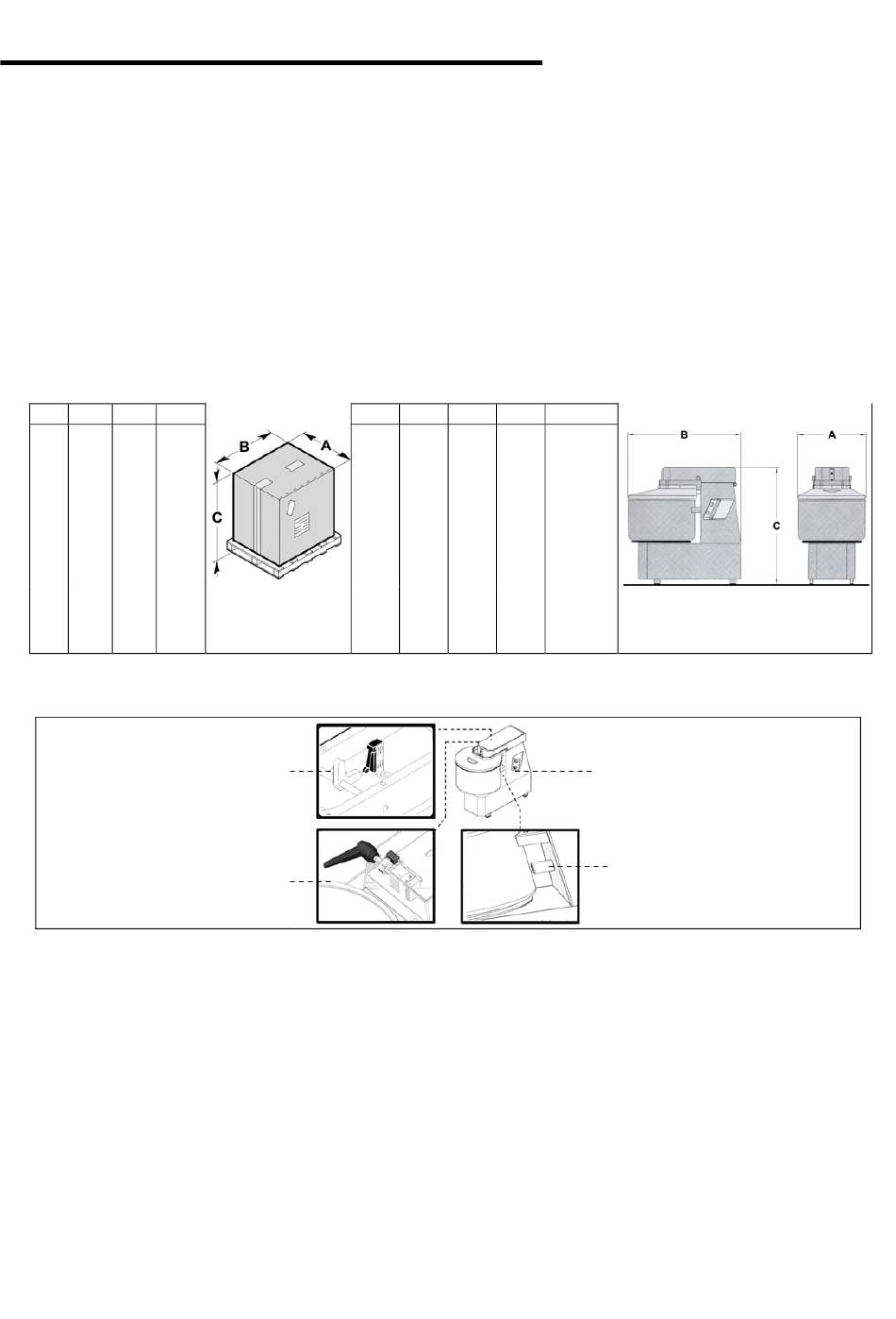

Overall dimensions

mm A B C
7 450 700 720
12 450 700 870
18 450 700 870
20 450 700 870
25 550 850 970
30 550 850 970
38 550 850 970
50 600 950 1150

Safety devices

Microswitch: it will stop the machine
when the pan lid is lifted. When the lid
is closed back, restart the machine by
pressing button I
Microswitch: it will stop the machine
when the head is lifted. When the head
is closed back, restart the machine by
pressing button I (only mod.CNS-FN)

Safety information

•
It is of the greatest importance to carefully read this manual before carrying out installation and use
operations. Consistent compliance with the instructions contained in this manual will guarantee personal
and machine safety.
•
Do not tamper with the safety devices for any reason.
•
We recommend that industrial safety regulations issued nationally by the appointed organisms be strictly
respected.
•
The manufacturer declines all responsability for injures to persons or damages to property, resulting from
failure to comply with these safety rules.
•
Correct machine setting, lighting and workshop cleanness are pre-conditions for personal safety.
•
Do not expose the machine to atmospheric agents.
•
The machine connection and start-up should only be executed by skilled engineers.
•
Check that the plant mains ratings correspond to the specifications printed on the machine data plate.
•
Make sure that the machine is connected to a grounding system.
•
The work area around the machine should always be kept clean and dry.
•
Wear the work attire prescribed by the industrial accident-prevention regulations.
mm A B C
SN
7 280 560 560
12 350 650 600
18 390 670 600
20 390 600 560
25 430 730 690
30 430 680 660
38 480 800 710
50 530 910 920
6
GENERAL
INFORMATION
C
CNS-FN
\
620
620
\
710
\
730
940
Remote control switch: after an
unscheduled power cut, it requests a
specific machine restart control
Sensor: it prevents the machine from
starting if it does not detect the
presence of the pot (CNS mod. only)
1
