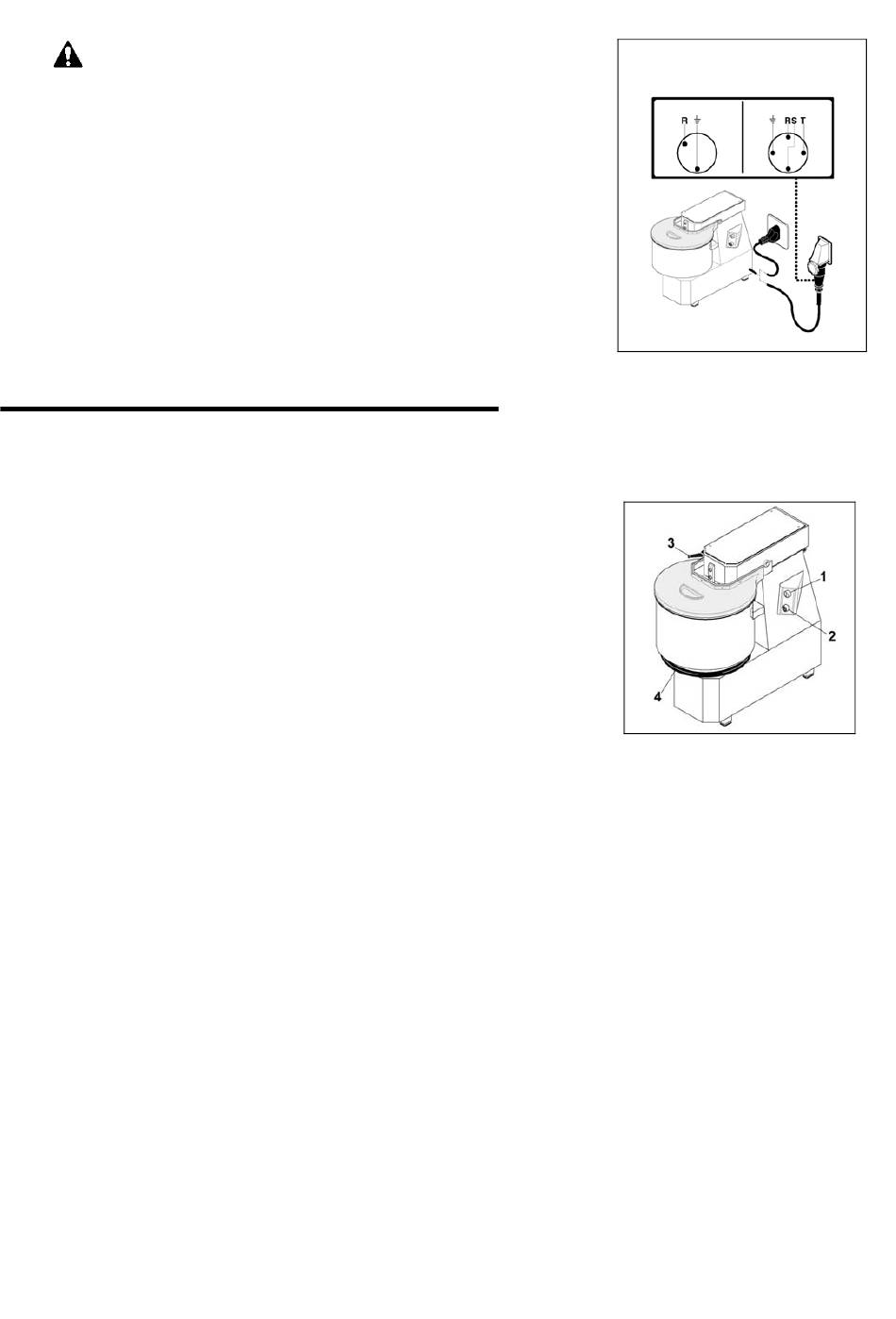

Electric connection

DANGER – CAUTION: Electric connection to the power
mains should be executed by skilled engineers.
Check for the perfect effeciency of the plant grounding system. Make sure
that the line voltage (V) and frequency (Hz) correspond to the machine
ratings (refer to the machine identification plate and wiring diagram). The
machine comes equipped with an electric cable to which a multipolar plug
should be connected. Plug the machine into a main wall switch with
differential.
Three-phase connection
Start the machine for just a few seconds and check that the beater turns in
the right direction. If this is not the case, disconnect power and exchange
two of the three phase wires in the plug.

Control descriptions

1) Start button "I"
Press this button to start the machine.The start button will only be enabled
when the lid is down and the pan is in place.
2) Stop button "0"
Press this button to stop the machine.
3) Locking hand lever for the head (only mod.CNS-FN)
Rotate the hand lever to lift the head (clockwise) or to block it (anti-
clockwise). The start button will only be enabled when the head is down and
blocked.
4) Locking flange for the pan (only mod.CNS)
Rotate the flange to lock the pan (anti-clockwise) or to release it
(clockwise).

Kneader Operation

•
Lift the pan lid and put the required mix ingredients into the pan.
•
Close the pan lid.
•
Tighten the locking hand lever of the head for mod.CNS-FN.
•
Lock the pan by means of the flange below for mod.CNS.
•
Start the machine by pressing the start button "I"; machine start can only be controlled if the lid is down
and if the pot is blocked on the flange.
•
After operation completion, press the stop button "0".
•
Lift the lid to empty it of the processed product.
•
After any operation cycle has been completed, wash the pan and spiral by hot water and soap.
•
Wipe inner face of the lid with a damp sponge.
2-speed version
•
Lift the pan lid and put the required mix ingredients into the pan.
•
Close the pan lid.
•
Tighten the locking hand lever of the head for mod.CNS-FN.
•
Lock the pan by means of the flange below for mod.CNS.
•
Rotate the speed selector to position 2.
•
Start the machine by pressing the start button "I"; machine start can only be controlled if the lid is down
and if the pot is blocked on the flange.
•
When the dough becomes a rather compact mixture (about 5 minutes later) stop the machine by
pressing the stop button "0" and rotate the speed selector to position 1.
•
Restart the machine by pressing the start button "I", until the required consistency is achieved.
•
After operation completion, press the stop button "0".
•
Lift the lid to empty it of the processed product.
•
After any operation cycle has been completed, wash the pan and spiral by hot water and soap.
•
Wipe inner face of the lid with a damp sponge.
OPERATION AND
8
Single-phase
connection
230V – 1Ph 230/400V – 3Ph
CLEANING
Three-phase
connection
3
