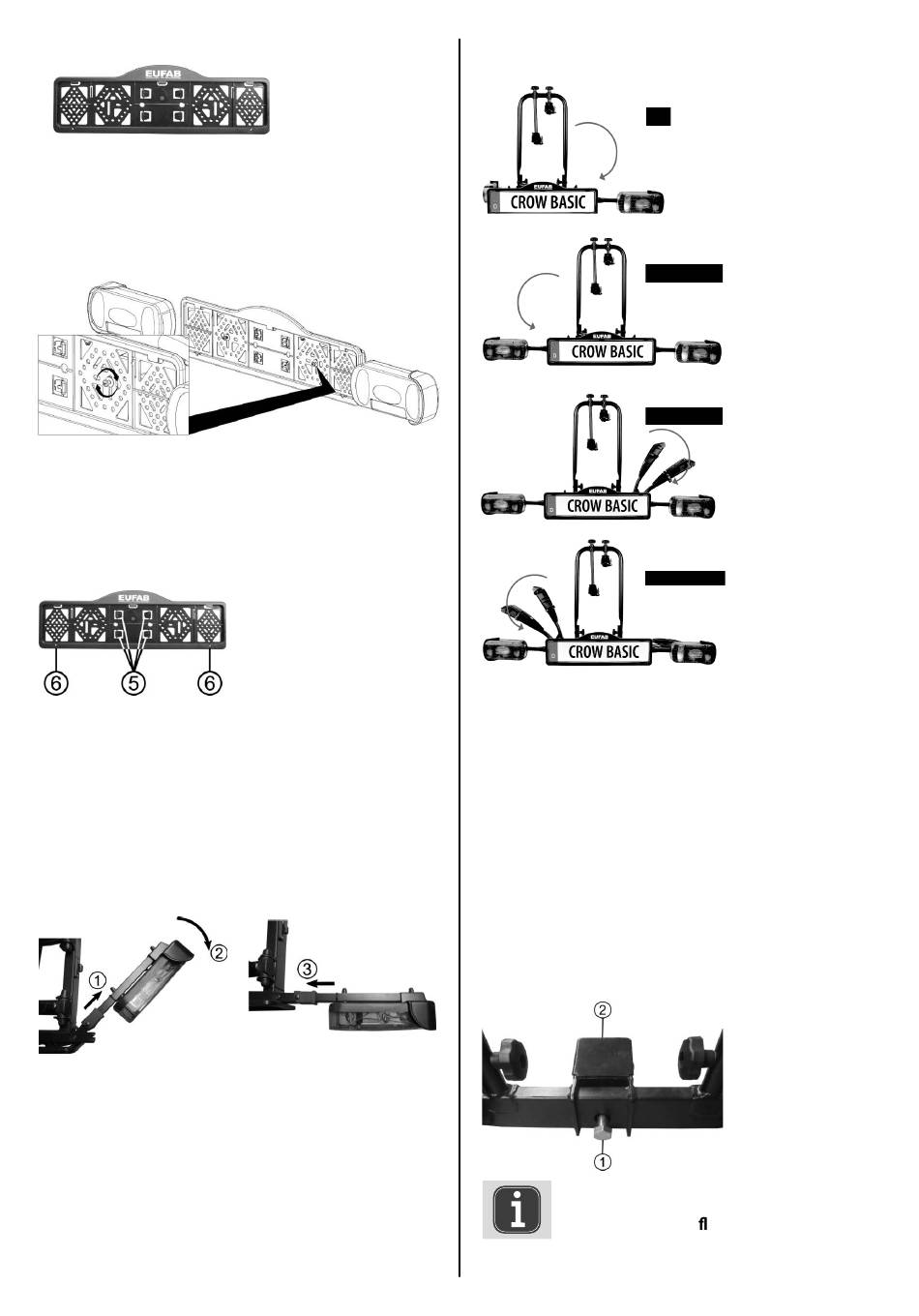

5.1.2 MOUNTING THE LICENSE PLATE HOLDER

Remove both cross-headed screws from the rear cross-bracket of the
bicycle rack.
Insert the screws into the license plate holder and screw fi rmly to
be bicycle rack as shown in Figure 5. Ensure that the license plate
is centred and at the same height as the lights for the license plate.
Figure 5: Mounting the license plate holder
The mounting clips (5) for securing the license plate are push-out
parts in the holder. Break out two of the clips. Slide the license plate
into the holder, then push the clips into the cut-outs (6) to secure
the license plate.

5.2 DISMANTLING THE BICYCLE RACK

In order to unfold the bicycle rack, start by swivelling the rear
lights outwards. The light mounts are clipped onto the rack table.
Pull the light mounts out of the clips. Pull the locking mechanism
back (Position 1 in Figure 12). Hold the locking mechanism in this
position. Swivel the light mount out fully (Position 2 in Figure 12).
Now release the locking mechanism (Position 3 in Figure 12), the
light mount is now secured to prevent it from folding back in.
Figure 12: Locking the light mounts
Figure 4: License plate holder
Figure 6: Mounting the license
plate
Fold open the bicycle rack as shown in the following Figures.
1. Fold out the right rear light 1. Fold out the right rear light
2. Fold out the left rear light 2. Fold out the left rear light
3. Fold out the right wheel rail 3. Fold out the right wheel rail
4. Fold out the left wheel rail 4. Fold out the left wheel rail

5.3 MOUNTING THE BICYCLE RACK ON THE TRAILER TOW BAR

Ensure that the trailer tow bar is undamaged, clean and free of
grease. Remove any paint from the coupling ball.
The bicycle rack is placed with the base horizontally on the trailer
tow bar from above. Insert the screw M16 (Position 1 in Figure 13)
into the base (Position 2 in Figure 13). Tighten the M16 screw slight-
ly and align the bicycle rack parallel to the rear of the vehicle. Now
tighten the M16 screw with the installation wrench in such a way
to ensure that the rack is securely attached and can no longer be
rotated.
Regularly check the fi rm seating of the rack on the trailer tow bar as
well as the functionality of the lighting systems.
Slight signs of pressure on the tow bar ball are
normal and do not in uence the functionality.
Figure 13: Screw base
