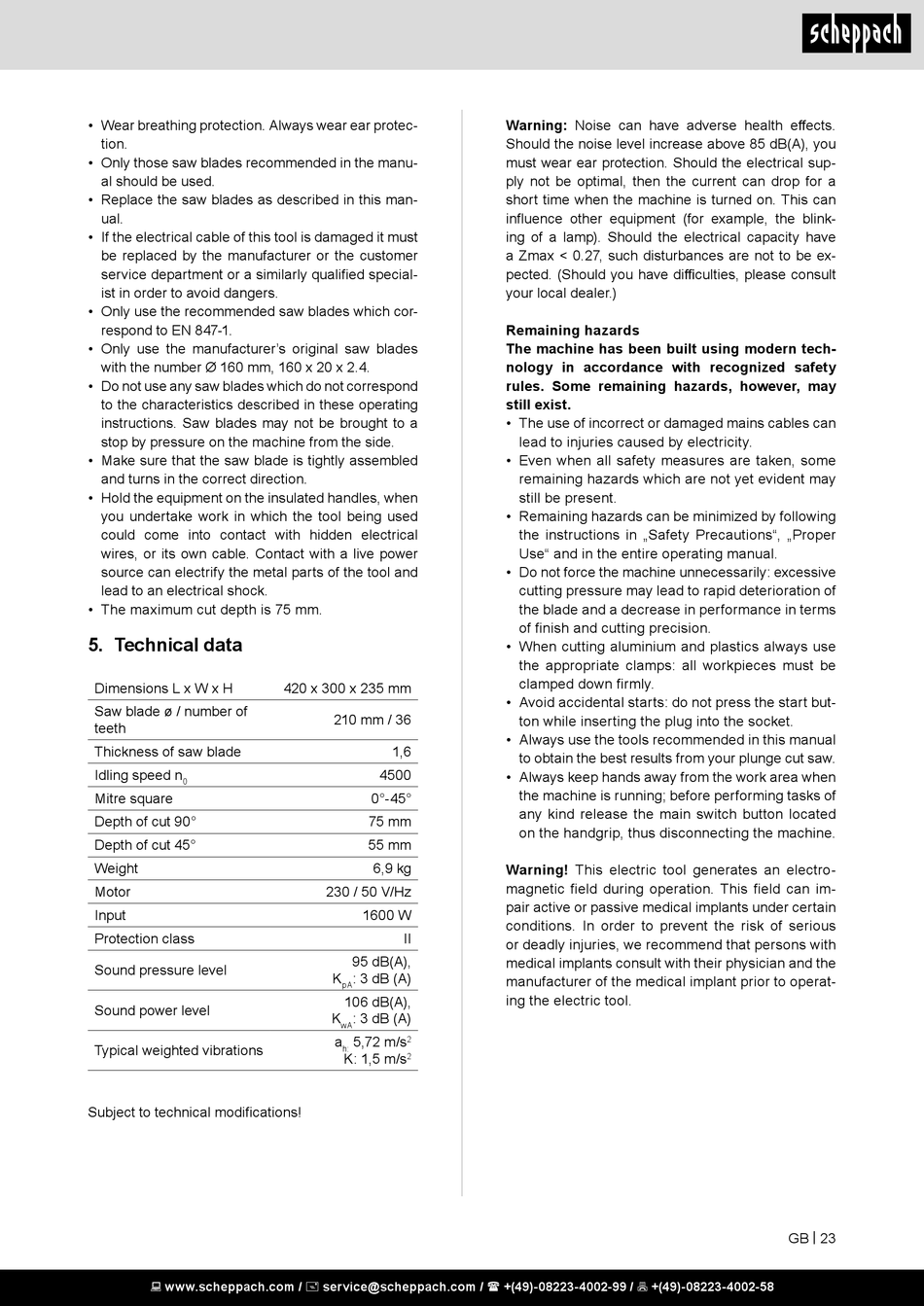

• Wear breathing protection. Always wear ear protec-
tion.
• Only those saw blades recommended in the manu-
al should be used.
• Replace the saw blades as described in this man-
ual.
• If the electrical cable of this tool is damaged it must
be replaced by the manufacturer or the customer
service department or a similarly qualified special-
ist in order to avoid dangers.
• Only use the recommended saw blades which cor-
respond to EN 847-1.
• Only use the manufacturer's original saw blades
with the number Ø 160 mm, 160 x 20 x 2.4.
• Do not use any saw blades which do not correspond
to the characteristics described in these operating
instructions. Saw blades may not be brought to a
stop by pressure on the machine from the side.
• Make sure that the saw blade is tightly assembled
and turns in the correct direction.
• Hold the equipment on the insulated handles, when
you undertake work in which the tool being used
could come into contact with hidden electrical
wires, or its own cable. Contact with a live power
source can electrify the metal parts of the tool and
lead to an electrical shock.
• The maximum cut depth is 75 mm.

5. Technical data

Dimensions L x W x H
Saw blade ø / number of
teeth
Thickness of saw blade
Idling speed n
0
Mitre square
Depth of cut 90°
Depth of cut 45°
Weight
Motor
Input
Protection class
Sound pressure level
Sound power level
Typical weighted vibrations
Subject to technical modifications!
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
420 x 300 x 235 mm
210 mm / 36
1,6
4500
0°-45°
75 mm
55 mm
6,9 kg
230 / 50 V/Hz
1600 W
II
95 dB(A),
K : 3 dB (A)
pA
106 dB(A),
K : 3 dB (A)
wA
a 5,72 m/s
2
h:
K: 1,5 m/s
2
Warning: Noise can have adverse health effects.
Should the noise level increase above 85 dB(A), you
must wear ear protection. Should the electrical sup-
ply not be optimal, then the current can drop for a
short time when the machine is turned on. This can
influence other equipment (for example, the blink-
ing of a lamp). Should the electrical capacity have
a Zmax < 0.27, such disturbances are not to be ex-
pected. (Should you have difficulties, please consult
your local dealer.)
Remaining hazards
The machine has been built using modern tech-
nology in accor dance with recognized safety
rules. Some remaining hazards, how ever, may
still exist.
• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Even when all safety measures are taken, some
remaining hazards which are not yet evident may
still be present.
• Remaining hazards can be minimized by following
the instructions in „Safety Precautions", „Proper
Use" and in the entire operating manual.
• Do not force the machine unnecessarily: excessive
cutt ing pressure may lead to rapid deterioration of
the blade and a decrease in performance in terms
of finish and cutting precision.
• When cutting aluminium and plastics always use
the app ro priate clamps: all workpieces must be
clamped down firmly.
• Avoid accidental starts: do not press the start but-
ton while inserting the plug into the socket.
• Always use the tools recommended in this manual
to obtain the best results from your plunge cut saw.
• Always keep hands away from the work area when
the ma chine is running; before performing tasks of
any kind release the main switch button located
on the handgrip, thus disconnecting the machine.
Warning! This electric tool generates an electro-
magnetic field during operation. This field can im-
pair active or passive medical implants under certain
conditions. In order to prevent the risk of serious
or deadly injuries, we recommend that persons with
medical implants consult with their physician and the
manufacturer of the medical implant prior to operat-
ing the electric tool.
