The mask for measuring the unbalance on alloy rims is displayed.
Wheel data acquisition
Geometric data relating to the actual balancing planes rather than the rated wheel data
(as in standard ALU programmes) have to be set. The balancing planes where the adhesive
weights are to be applied may be selected by the user according to the specific shape of
the rim. However, bear in mind that it is always preferable to select balancing planes as
far apart as possible in order to reduce the quantity of the weight to be applied; if the
distance between the two planes is less than 37 mm (1.5"), the A 5 message is displayed.

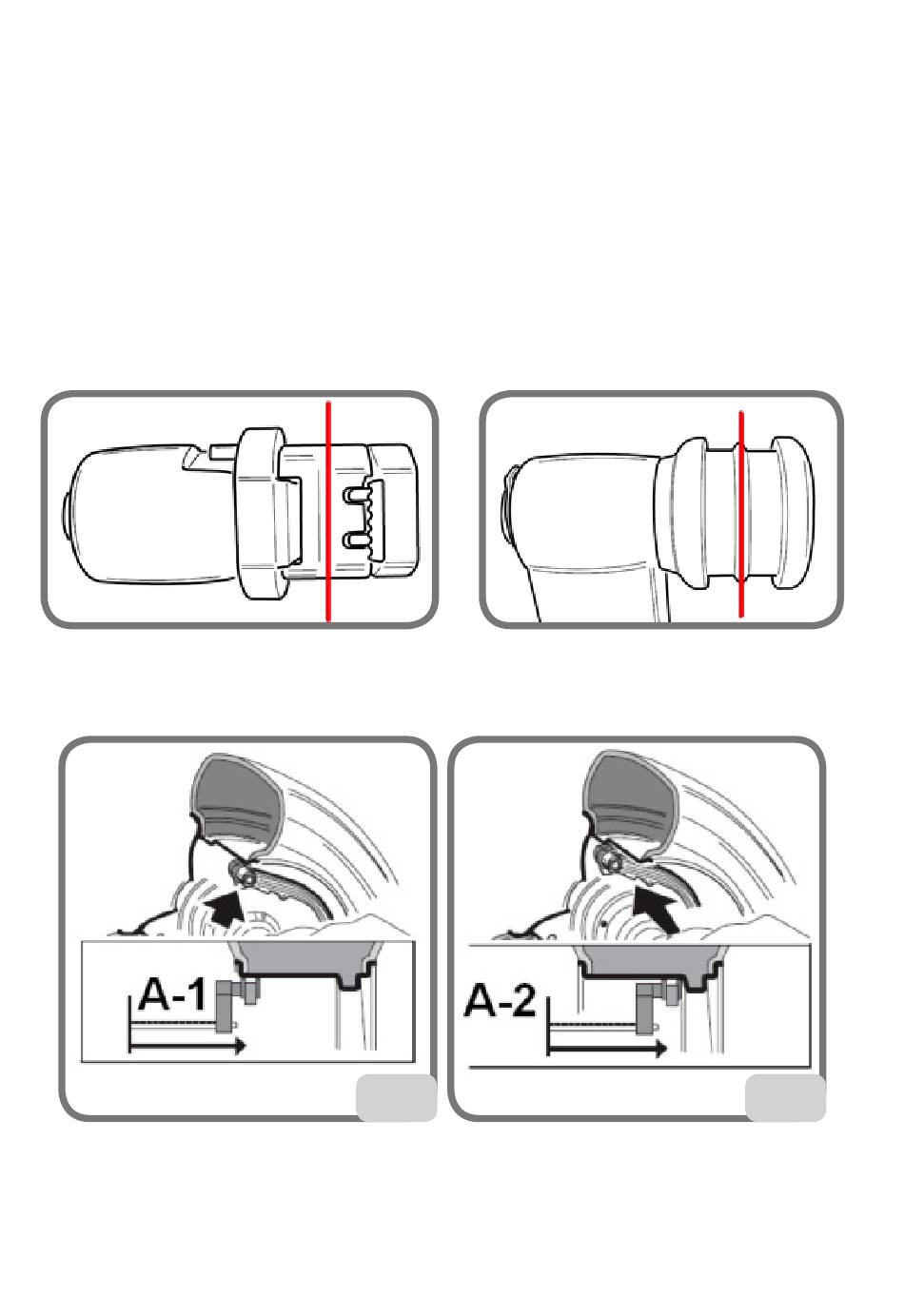

Move the end of the automatic measuring arm in line with the plane selected for the ap-
plication of the inner weight. In ALU1P, the reference of the weight mid-point is the centre
of the gripper cavity.
Centre of the weight-holder gripper cavity
ALU1P
106
Centre of the gripper cavity without
weight-holder
18
