Pumped liquids
The pumps must not be used for
pumping combustible, flammable, or
corrosive liquids.
The pumps are designed for transferring the following
liquids:
• sewage
• drainage and surface water
• sludge with minimal dry-solids content
• effluent.
Intended use
These pumps are designed for pumping sewage and
wastewater in a wide range of private and industrial
applications.
Identification

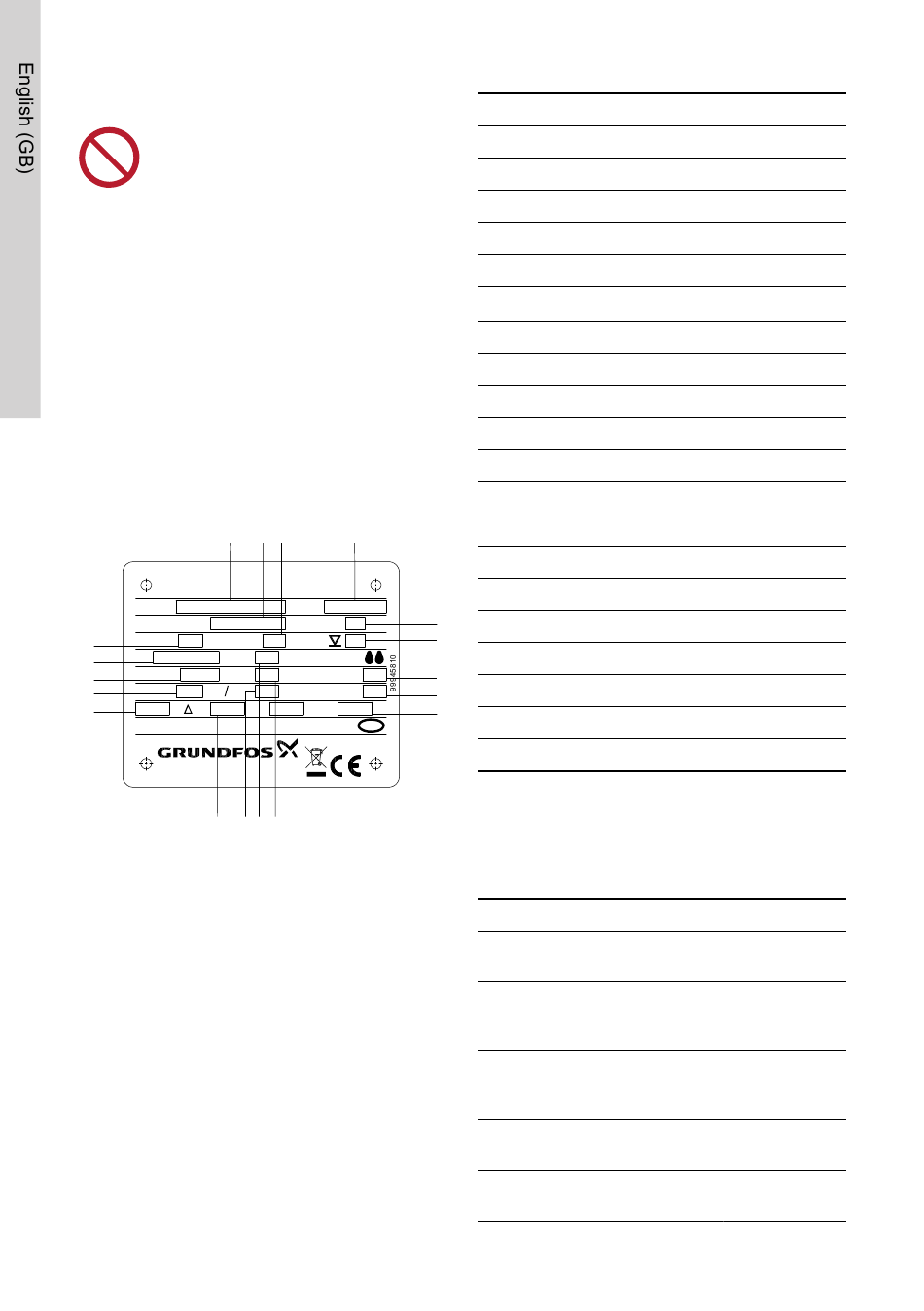

Nameplate
Fix the extra nameplate supplied with the pump at the
installation site or keep it in the cover of this booklet.
1
Type
Model No.
Hmax Qmax
2
n min
-1
8
Motor ~ Hz
11
P1/P2
14
V A
17
DK-8850 Bjerringbro,Denmark
18 15
6
3 6 5
Date
Temp. ºC
m³/h
kg IP68
Insul. class
kW cos Ф
V Y A
Made in
DE
Germany
9 12 19
Pos. Description
1 Type designation
2 Maximum head [m]
3 Product number
4 Maximum liquid temperature [°C]
5 Production code, year and week
6
Maximum flow rate [m
7 Maximum installation depth [m]
8 Speed [rpm]
9 Net weight [kg]
10 Enclosure class
11 Phase
12 Frequency [Hz]
13 Insulation class
14 Motor input power P1 [kW]
15 Motor input power P2 [kW]
4 16 Cos φ, 1/1 load
7
10
17 Rated voltage [V], delta connection
13
18 Rated current [A], delta connection
16
20
19 Rated voltage [V], star connection
20 Rated current [A], star connection
Type key
Fix the extra nameplate supplied with the pump at the
installation site or keep it in the cover of this booklet
Example: AP80.80.13.3.V
Code Description
Wastewater/
AP
sewage pump
Maximum
80 solids size 80 =
80 mm
Nominal outlet
80 diameter 80 =
80 mm
Output power
13
P2 07 = 0.7 kW
Single-phase
1
motor
3
/h]
Explanation
Pump type
Pump passage
Pump outlet
Power [kW]
Number of
phases
