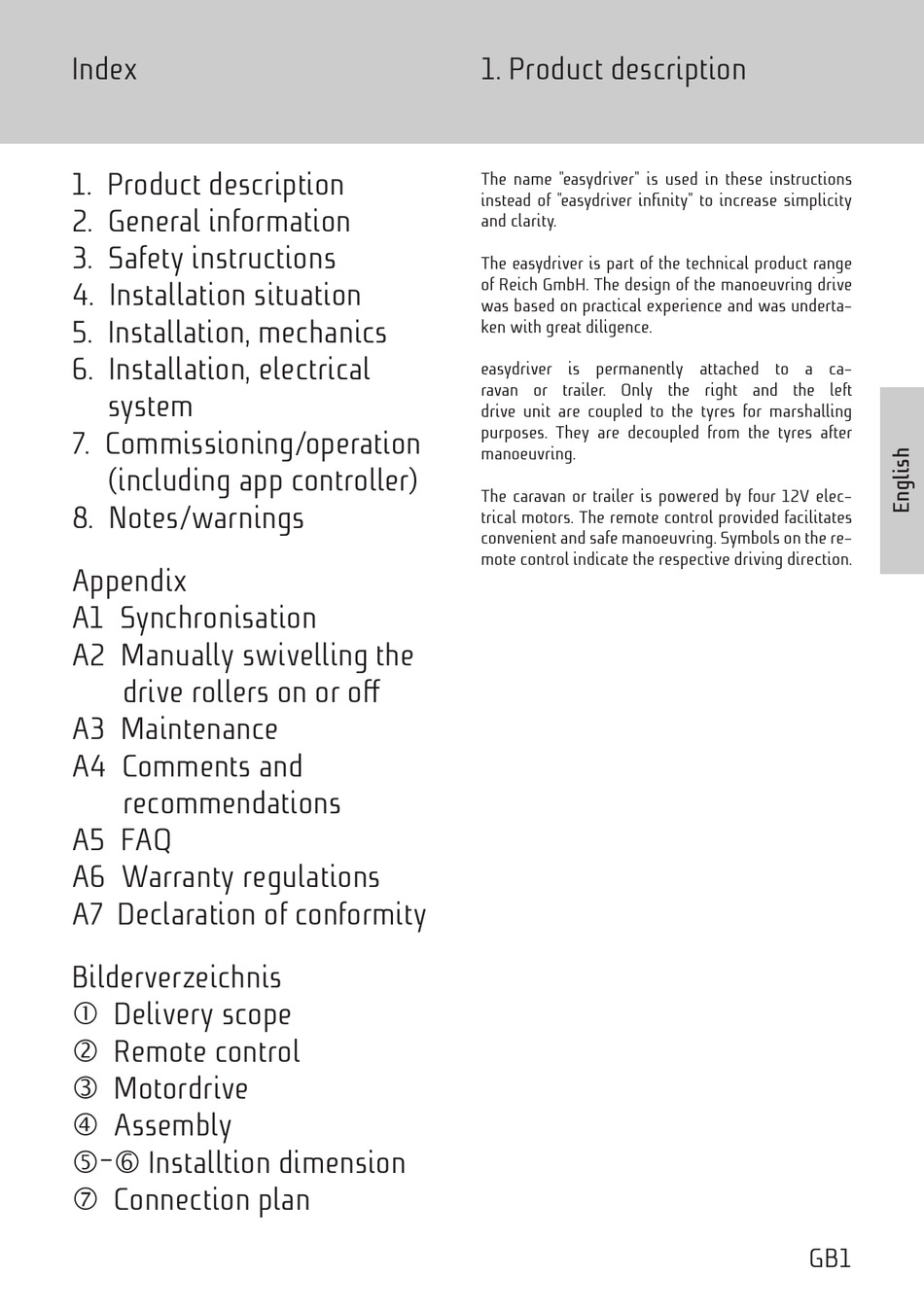

Index
1. Product description
2. General information
3. Safety instructions
4. Installation situation
5. Installation, mechanics
6. Installation, electrical
system
7. Commissioning/operation
(including app controller)
8. Notes/warnings
Appendix
A1 Synchronisation
A2 Manually swivelling the
drive rollers on or off
A3 Maintenance
A4 Comments and
recommendations
A5 FAQ
A6 Warranty regulations
A7 Declaration of conformity
Bilderverzeichnis
 Delivery scope
‚ Remote control
ƒ Motordrive
„ Assembly
 -  Installtion dimension
‡ Connection plan
1. Product description
The name "easydriver" is used in these instructions
instead of "easydriver infinity" to increase simplicity
and clarity.
The easydriver is part of the technical product range
of Reich GmbH. The design of the manoeuvring drive
was based on practical experience and was underta-
ken with great diligence.
easydriver is permanently attached to a ca-
ravan or trailer. Only the right and the left
drive unit are coupled to the tyres for marshalling
purposes. They are decoupled from the tyres after
manoeuvring.
The caravan or trailer is powered by four 12V elec-
trical motors. The remote control provided facilitates
convenient and safe manoeuvring. Symbols on the re-
mote control indicate the respective driving direction.
GB1
