COSMO High‐efficiency pump CPH 2.0
7.3.5. Rotating the user interface
If the pump is installed in a horizontal pipe run, the user interface with the electronic
unit must be rotated through 90° to ensure that the IP protection mode is maintained,
and that the user has easy access to the graphical operating interface.
Before rotating the pump, it must be drained completely.
The electronic control unit must always be mounted in the vertical position.
Before removing the pump, the system must be drained, or the shut‐off valves on
both sides of the pump must be closed. The conveyed liquid can reach very high
temperatures and high pressures.

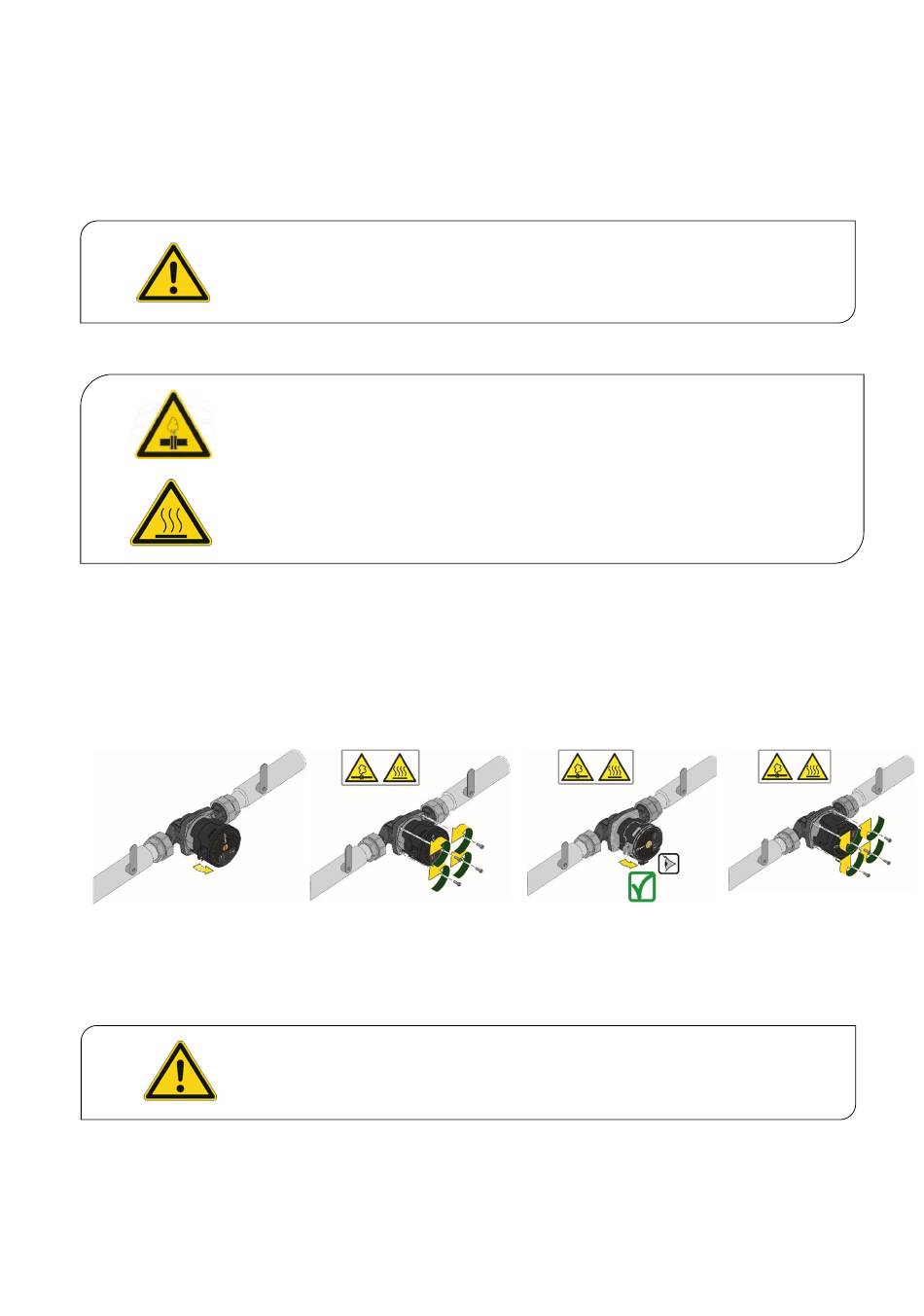

Proceed as follows to rotate the CPH 2.0 circulation pump:
1. Remove the 4 fixing screws from the pump head.
2. Depending on position, rotate the motor housing with electronic unit through 90°
to left or right.
3. Reassemble, and secure the pump head with the 4 fixing screws.
Caution – damage due to incorrect installation
Prevent additional loads on the device.
o Ensure a stress‐free installation of the pump in the pipework.
