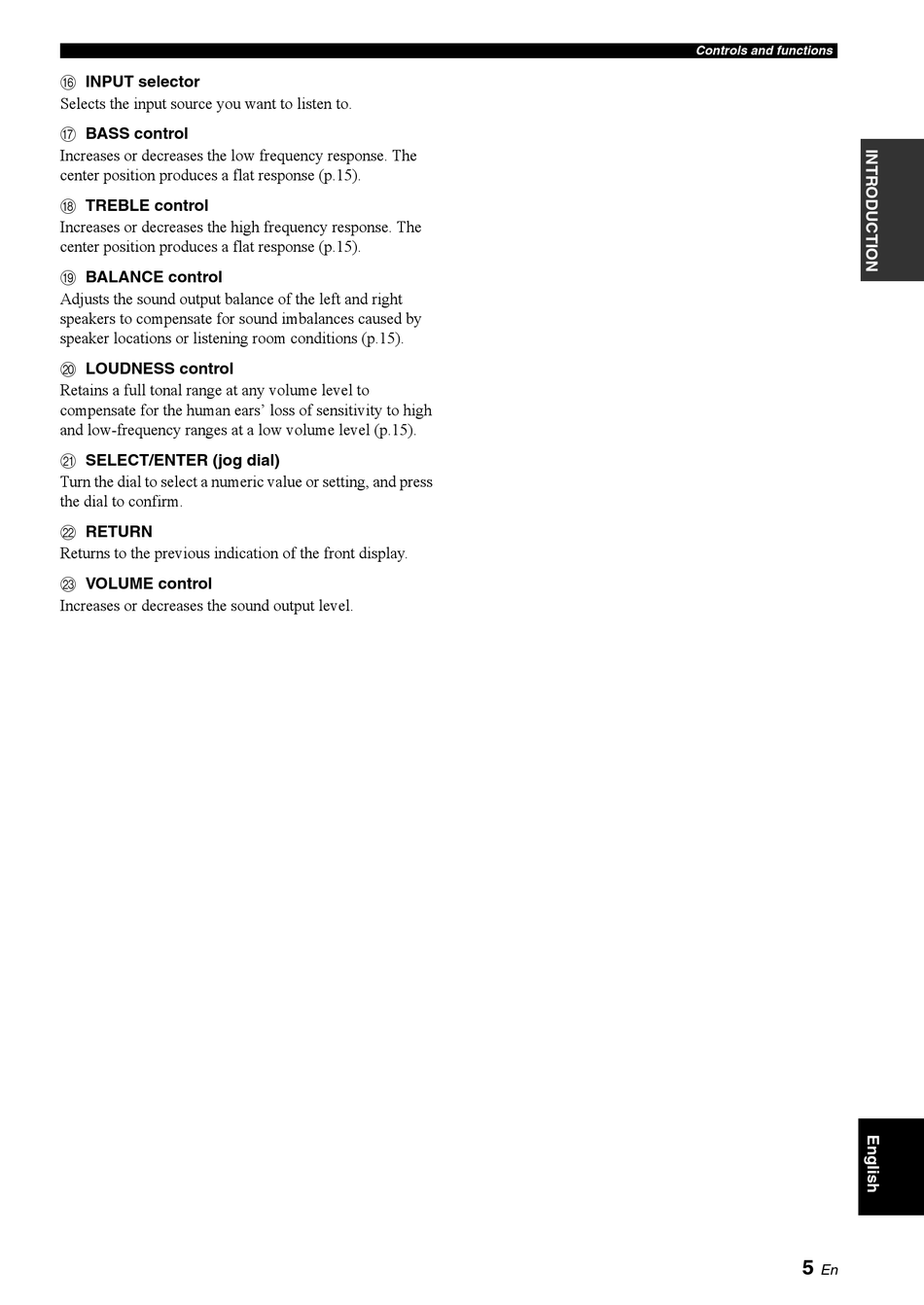

Yamaha R-N500 Bedienungsanleitung Seite 7

Controls and functions
F INPUT selector
Selects the input source you want to listen to.
G BASS control
Increases or decreases the low frequency response. The
center position produces a flat response (p.15).
H TREBLE control
Increases or decreases the high frequency response. The
center position produces a flat response (p.15).
I BALANCE control
Adjusts the sound output balance of the left and right
speakers to compensate for sound imbalances caused by
speaker locations or listening room conditions (p.15).
J LOUDNESS control
Retains a full tonal range at any volume level to
compensate for the human ears' loss of sensitivity to high
and low-frequency ranges at a low volume level (p.15).
K SELECT/ENTER (jog dial)
Turn the dial to select a numeric value or setting, and press
the dial to confirm.
L RETURN
Returns to the previous indication of the front display.
M VOLUME control
Increases or decreases the sound output level.
5
En
