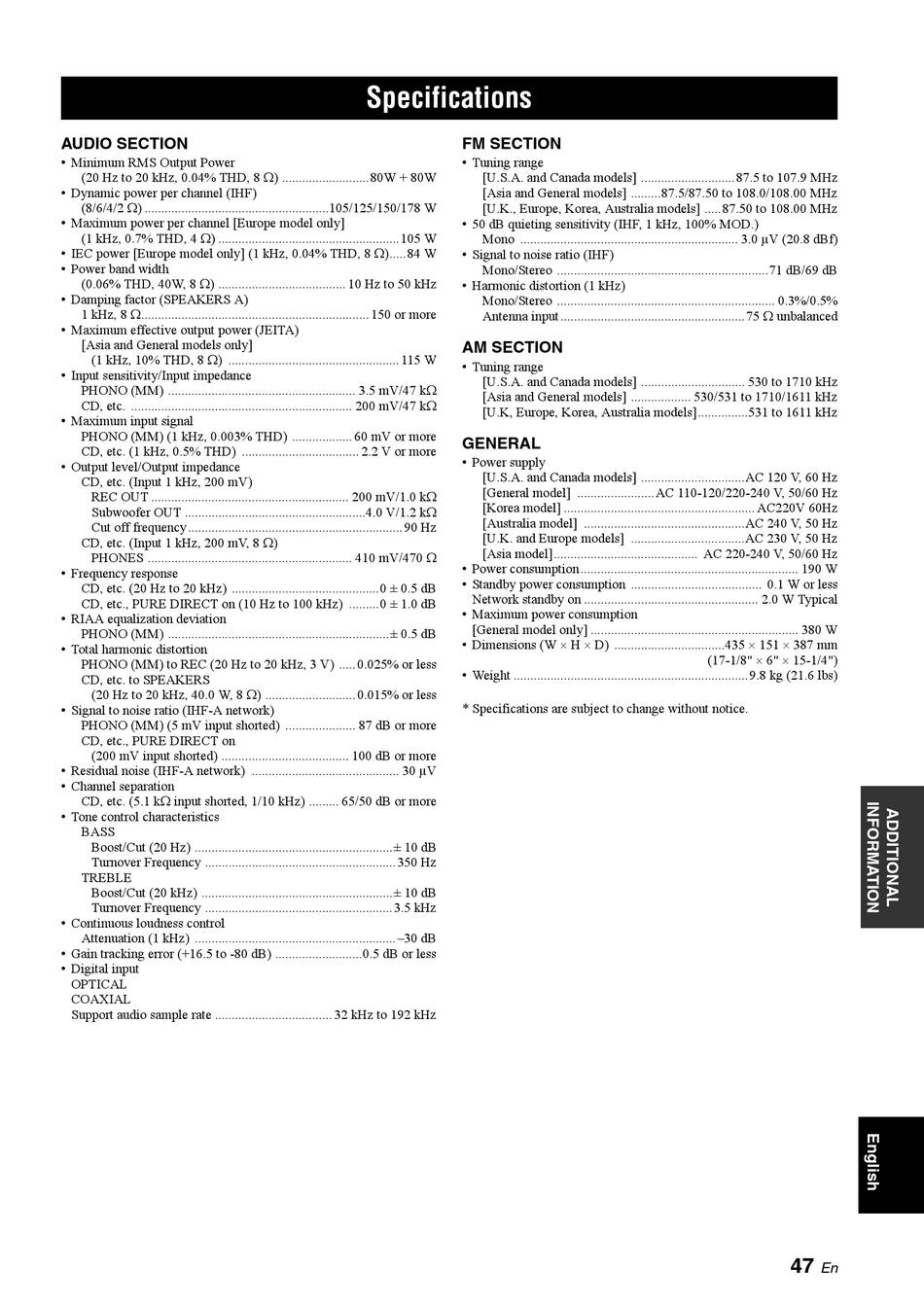

Specifications - Yamaha R-N500 Bedienungsanleitung

AUDIO SECTION
• Minimum RMS Output Power
(20 Hz to 20 kHz, 0.04% THD, 8 ) ..........................80W + 80W
• Dynamic power per channel (IHF)
(8/6/4/2 ) .......................................................105/125/150/178 W
• Maximum power per channel [Europe model only]
(1 kHz, 0.7% THD, 4 ) ......................................................105 W
• IEC power [Europe model only] (1 kHz, 0.04% THD, 8 ).....84 W
• Power band width
(0.06% THD, 40W, 8 ) ...................................... 10 Hz to 50 kHz
• Damping factor (SPEAKERS A)
1 kHz, 8 .................................................................... 150 or more
• Maximum effective output power (JEITA)
[Asia and General models only]
(1 kHz, 10% THD, 8 ) ................................................... 115 W
• Input sensitivity/Input impedance
PHONO (MM) ........................................................ 3.5 mV/47 k
CD, etc. .................................................................. 200 mV/47 k
• Maximum input signal
PHONO (MM) (1 kHz, 0.003% THD) .................. 60 mV or more
CD, etc. (1 kHz, 0.5% THD) ................................... 2.2 V or more
• Output level/Output impedance
CD, etc. (Input 1 kHz, 200 mV)
REC OUT ........................................................... 200 mV/1.0 k
Subwoofer OUT ......................................................4.0 V/1.2 k
Cut off frequency................................................................ 90 Hz
CD, etc. (Input 1 kHz, 200 mV, 8 )
PHONES ............................................................. 410 mV/470 
• Frequency response
CD, etc. (20 Hz to 20 kHz) ............................................0 ± 0.5 dB
CD, etc., PURE DIRECT on (10 Hz to 100 kHz) .........0 ± 1.0 dB
• RIAA equalization deviation
PHONO (MM) ..................................................................± 0.5 dB
• Total harmonic distortion
PHONO (MM) to REC (20 Hz to 20 kHz, 3 V) ..... 0.025% or less
CD, etc. to SPEAKERS
(20 Hz to 20 kHz, 40.0 W, 8 ) ........................... 0.015% or less
• Signal to noise ratio (IHF-A network)
PHONO (MM) (5 mV input shorted) ..................... 87 dB or more
CD, etc., PURE DIRECT on
(200 mV input shorted) ...................................... 100 dB or more
• Residual noise (IHF-A network) ............................................ 30 µV
• Channel separation
CD, etc. (5.1 k input shorted, 1/10 kHz) ......... 65/50 dB or more
• Tone control characteristics
BASS
Boost/Cut (20 Hz) ...........................................................± 10 dB
Turnover Frequency ......................................................... 350 Hz
TREBLE
Boost/Cut (20 kHz) .........................................................± 10 dB
Turnover Frequency ........................................................ 3.5 kHz
• Continuous loudness control
Attenuation (1 kHz) ............................................................ –30 dB
• Gain tracking error (+16.5 to -80 dB) ..........................0.5 dB or less
• Digital input
OPTICAL
COAXIAL
Support audio sample rate ................................... 32 kHz to 192 kHz

Specifications

FM SECTION
• Tuning range
[U.S.A. and Canada models] ............................87.5 to 107.9 MHz
[Asia and General models] .........87.5/87.50 to 108.0/108.00 MHz
[U.K., Europe, Korea, Australia models] ..... 87.50 to 108.00 MHz
• 50 dB quieting sensitivity (IHF, 1 kHz, 100% MOD.)
Mono ................................................................. 3.0 µV (20.8 dBf)
• Signal to noise ratio (IHF)
Mono/Stereo ...............................................................71 dB/69 dB
• Harmonic distortion (1 kHz)
Mono/Stereo ................................................................. 0.3%/0.5%
Antenna input ....................................................... 75  unbalanced
AM SECTION
• Tuning range
[U.S.A. and Canada models] ............................... 530 to 1710 kHz
[Asia and General models] .................. 530/531 to 1710/1611 kHz
[U.K, Europe, Korea, Australia models]...............531 to 1611 kHz
GENERAL
• Power supply
[U.S.A. and Canada models] ...............................AC 120 V, 60 Hz
[General model] .......................AC 110-120/220-240 V, 50/60 Hz
[Korea model] ......................................................... AC220V 60Hz
[Australia model] ................................................AC 240 V, 50 Hz
[U.K. and Europe models] ..................................AC 230 V, 50 Hz
[Asia model]........................................... AC 220-240 V, 50/60 Hz
• Power consumption................................................................. 190 W
• Standby power consumption ....................................... 0.1 W or less
Network standby on .................................................... 2.0 W Typical
• Maximum power consumption
[General model only] .............................................................. 380 W
• Dimensions (W  H  D) .................................435  151  387 mm
• Weight ......................................................................9.8 kg (21.6 lbs)
* Specifications are subject to change without notice.
Specifications
(17-1/8"  6"  15-1/4")
