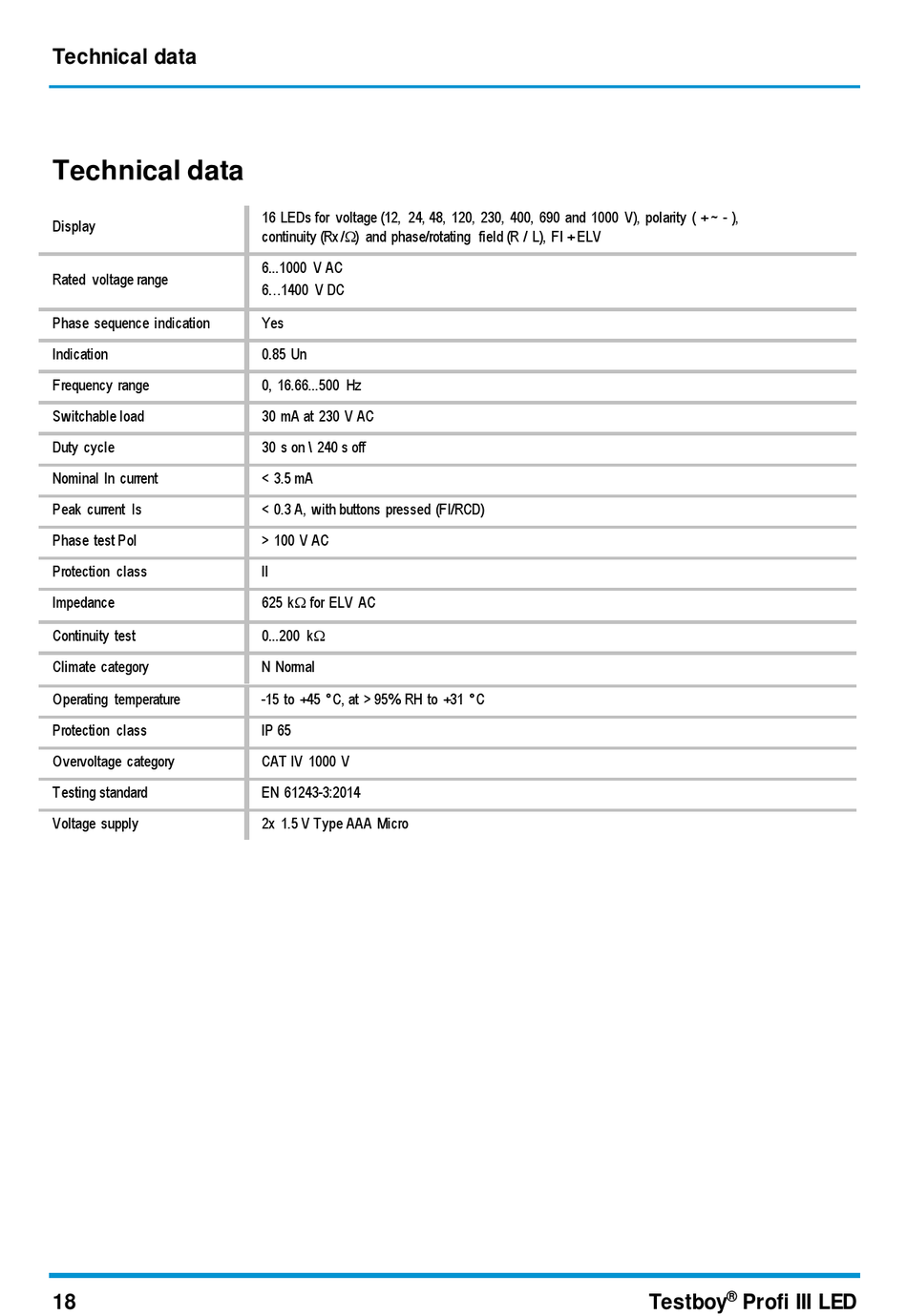

Technical data

Technical data
Display
Rated voltage range
Phase sequence indication
Indication
Frequency range
Switchable load
Duty cycle
Nominal In current
Peak current Is
Phase test Pol
Protection class
Impedance
Continuity test
Climate category
Operating temperature
Protection class
Overvoltage category
Testing standard
Voltage supply
18
16 LEDs for voltage (12, 24, 48, 120, 230, 400, 690 and 1000 V), polarity ( + ~ - ),
continuity (Rx /) and phase/rotating field (R / L), FI + ELV
6...1000 V AC
6...1400 V DC
Yes
0.85 Un
0, 16.66...500 Hz
30 mA at 230 V AC
30 s on \ 240 s off
< 3.5 mA
< 0.3 A, with buttons pressed (FI/RCD)
> 100 V AC
II
625 k for ELV AC
0...200 k
N Normal
-15 to +45 °C, at > 95% RH to +31 °C
IP 65
CAT IV 1000 V
EN 61243-3:2014
2x 1.5 V Type AAA Micro
®
Testboy Profi III LED
