TESTBOY Profi III LCD Bedienungsanleitung
Vorschau ausblenden Andere Handbücher für Profi III LCD:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

®
Testboy
Profi III
LCD
Version 1.1

Werbung

Kapitel

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für TESTBOY Profi III LCD

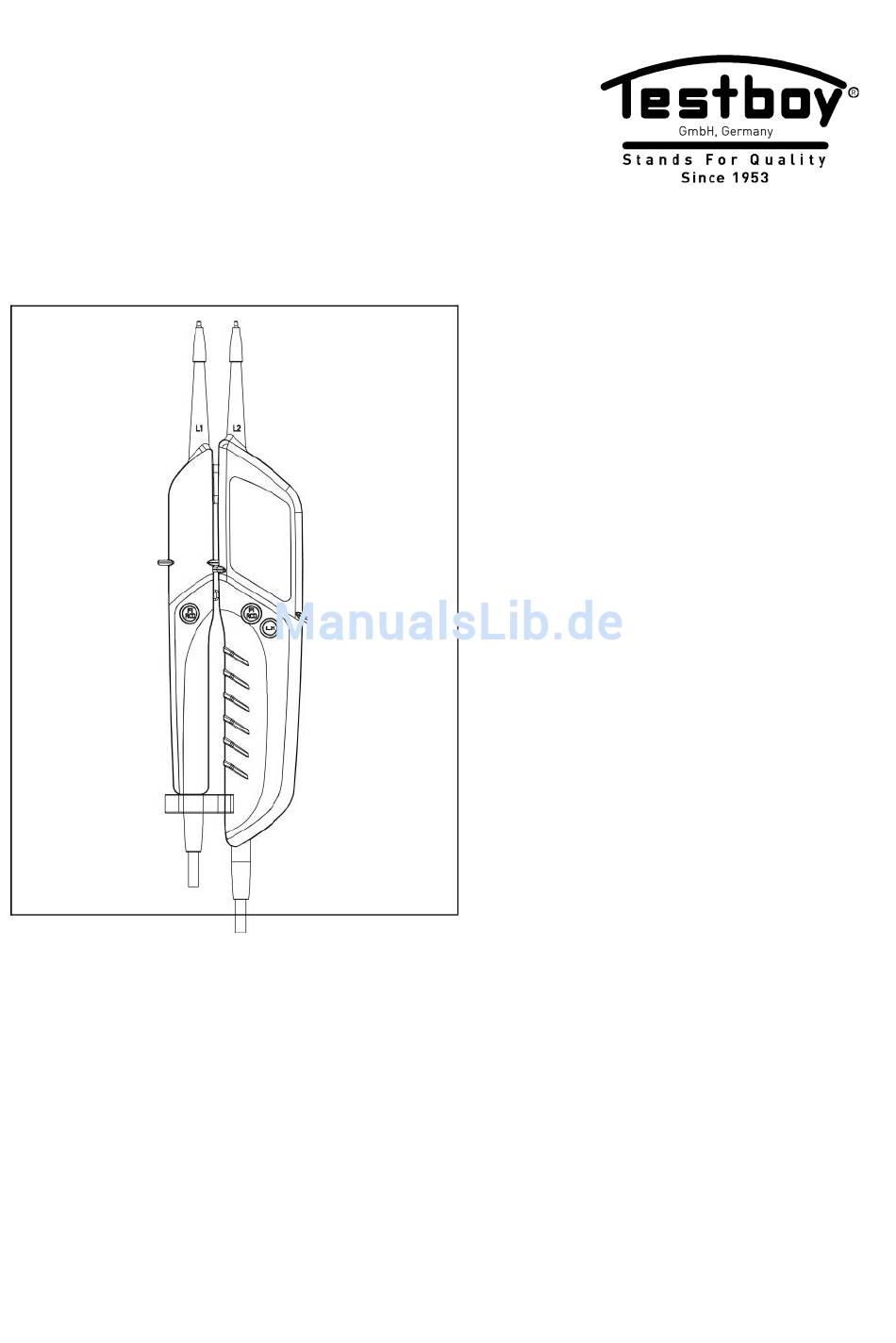

  • Seite 1 ® Testboy Profi III Version 1.1...
  • Seite 2 ® Testboy Profi III LCD Bedienungsanleitung ® Testboy Profi III LCD Operating instructions...
  • Seite 3: Inhaltsverzeichnis

    Inhaltsverzeichnis Inhaltsverzeichnis Inhaltsverzeichnis Hinweise Sicherheitshinweise Allgemeine Sicherheitshinweise Bedienung Sicherheitshinweise Allgemeines Funktion Selbsttest Gleichspannung prüfen Wechselspannung (TRMS) prüfen DATA HOLD-Funktion Phasenprüfung Drehfeldprüfung (max. 400 V) Einhandprüfung Messstellenbeleuchtung Durchgangsprüfung FI/RCD-Auslösetest Hintergrundbeleuchtung Frequenzmessung Batteriewechsel Technische Daten ® Testboy Profi LCD Plus...
  • Seite 4: Hinweise

    Personen führen sowie eine Gefährdung für die Funktion von Gegenständen (z.B. die Beschädigung des Gerätes) sein. WARNUNG Richten Sie den Laserstrahl/ LED Strahl nie direkt oder indirekt durch reflektierende Oberflächen auf das Auge. Laserstrahlung kann irreparable Schäden am Auge hervorrufen. ® Testboy Profi LCD Plus...
  • Seite 5: Allgemeine Sicherheitshinweise

    Vermeiden Sie staubige und feuchte Umgebungsbed- ingungen. Messgeräte und Zubehör sind kein Spielzeug und gehören nicht in Kinderhände! In gewerblichen Einrichtungen sind die Unfallverhütung- svorschriften des Verbandes der gewerblichen Berufsgenossenschaften für elektrische Anlagen und Be- triebsmittel zu beachten. ® Testboy Profi LCD Plus...
  • Seite 6 Lesen Sie vor Inbetriebnahme die Anleitung komplett durch. Dieses Gerät ist CE-geprüft und erfüllt somit die er- forderlichen Richtlinien. Rechte vorbehalten, die Spezifikationen ohne vorherige Ankündigung zu än- dern © Testboy GmbH, Deutschland. ® Testboy Profi LCD Plus...
  • Seite 7 Gewähr übernommen. Änderungen, Druckfehler und Irrtümer vorbehalten. Entsorgung Sehr geehrter Testboy-Kunde, mit dem Erwerb unseres Produktes haben Sie die Möglichkeit, das Gerät nach Ende seines Lebenszyklus an geeignete Sammelstellen für Elektroschrott zurückzugeben. Die WEEE (2002/96/EC) regelt die Rücknahme und das Recy- cling von Elektroaltgeräten.
  • Seite 8 Sammelstellen Ihrer Gemeinde oder überall dort abgeben, wo Batterien/Akkus verkauft werden! 5 Jahre Garantie Testboy-Geräte unterliegen einer strengen Qualitätskontrolle. Sollten während der täglichen Praxis dennoch Fehler in der Funktion auftreten, gewähren wir eine Garantie von 5 Jahren (nur gültig mit Rechnung). Fabri- kations- oder Materialfehler werden von uns kostenlos beseitigt sofern das Gerät ohne Fremdeinwirkung und ungeöffnet an uns zurückgesandt wird.
  • Seite 9 Hinweise Qualitätszertifikat Alle innerhalb der Testboy GmbH durchgeführten, qualitätsrelevanten Tätigkeiten und Prozesse werden permanent durch ein Qualitätsmanage- mentsystem überwacht. Die Testboy GmbH bestätigt weiterhin, dass die während der Kalibrierung verwendeten Prüfeinrichtungen und Instrumente einer permanenten Prüfmittelüberwachung unterliegen. Konformitätserklärung Das Produkt erfüllt die Niederspannungsrichtlinien 2006/95/EG und die EMV-Richtlinien 2004/108/EG.
  • Seite 10: Bedienung

    Dank des drehbaren Abstandhalters ist bei Spannungsmessungen eine Einhandbedienung möglich. ® Der Testboy Profi III LCD ist durch die hohe Schutzart (IP65) auch bei rauem Einsatz verwendbar. Sicherheitshinweise Sie haben sich für ein Gerät entschieden, das Ihnen ein hohes Maß an Sicherheit bietet.
  • Seite 11 Anzeige bei Spannungen > 35 V dienen nur zur Warnung von lebensgefährli- chen Spannungen, nicht zur Messung. Den Warnton vor Prüfung mit Umgebungs- lautstärke auf Hörbarkeit prüfen. Batterien sofort wechseln, wenn das Bat- teriesymbol im Display erscheint. ® Testboy Profi LCD Plus...
  • Seite 12: Allgemeines

    "AC" im Display.Ebenfalls wird die Netzfrequenz angezeigt. Ab einer Spannung von ca. 35 V wird die lebensgefährliche Spannung mittels blinkender LED hinter dem Display und einem akustischen Signal angezeigt. Bei völlig entleerten Batterien wird bei anliegender Spannung ein Warndreieck im Display angezeigt. ® Testboy Profi LCD Plus...
  • Seite 13: Data Hold-Funktion

    Buchstabe "L" im Display erscheint. Der Drehfeldbestimmung muss immer eine Prüfung mit vertauschten Prüfspitzen erfolgen.Dabei muss sich die Drehrichtung än- dern Hinweis: Die Drehfeldprüfung ist ab 200 V, 50/60 Hz (Phase gegen Phase) im geerdeten Drehstromnetz möglich. ® Testboy Profi LCD Plus...
  • Seite 14: Einhandprüfung

    Display die Überlaufanzeige "OL". FI/RCD-Auslösetest ® Der Testboy Profi III LCD besitzt eine Last, die es ermöglicht, einen FI/RCD-Schutzschalter mittels zweier Taster (FI\RCD) auszulösen. Geprüft wird der FI/RCD (max. 30 mA) zwischen Phase und Schutzleiter (max. 240 V).
  • Seite 15: Batteriewechsel

    öffnen. Lösen Sie dazu die Schrauben mittels eines Schraubendrehers. Achten Sie beim Einsatz der neuen Batterien auf die richtige Polarität. Verschliessen und verschrauben Sie das Batteriefach wieder. Batterien gehören nicht in den Hausmüll. Auch in Ihrer Nähe be- findet sich eine Sammelstelle! ® Testboy Profi LCD Plus...
  • Seite 16: Technische Daten

    30mA bei 230V AC Einschaltdauer max. 30 s an \ 240 s aus Durchgangsprüfung 0...50 … Widerstandsmessung 1999 +- 5% Schutzart IP 65 Überspannungskategorie CAT IV 1000 V Prüfnorm IEC/EN 61243-3 Spannungsversorgung 2x 1,5 V Typ AAA Micro ® Testboy Profi LCD Plus...
  • Seite 17: Inhaltsverzeichnis

    Check AC voltage (TRMS) DATA HOLD function Phase test Rotating field test (max. 400 V) One-hand test Lighting of the measurement location Continuity test FI/RCD trip test Backlighting Frequency measurement Replacing the battery Technical data ® Testboy Profi LCD Plus...
  • Seite 18: Notes

    (e.g. damage to the in- strument). WARNING Never point the laser beam/ LED beam towards the eyes di- rectly or indirectly, via reflective surfaces. Laser radiation can cause irreparable damage to the eyes. ® Testboy Profi LCD Plus...
  • Seite 19: General Safety Notes

    Measuring instruments and their accessories are not toys, and must be kept out of the reach of children! In industrial facilities, the accident prevention regulations for electrical systems and equipment, established by the em- ployer’s liability insurance association, must be observed. ® Testboy Profi LCD Plus...
  • Seite 20 Read the instructions completely before beginning the initial commissioning. This instrument is CE-approved and thus fulfils the required guidelines. All rights reserved to alter specifications without prior notice © Testboy GmbH, Germany. ® Testboy...
  • Seite 21 Testboy is not responsible for damage resulting from failure to observe the instructions changes to the product that have not been approved by Testboy or the use of spare parts that have not been manufactured or approved by Testboy the use of alcohol, drugs or medication.
  • Seite 22 5-year warranty Testboy instruments are subject to strict quality control standards. If, during the course of normal daily use, a fault should occur, we provide a 5-year warranty (valid only with invoice). We will repair production or material de- fects free of charge upon return, provided the instrument has not been tam- pered with and is returned to us unopened.
  • Seite 23 Notes Certificate of quality All activities and processes carried out within Testboy GmbH relating to qual- ity are monitored permanently within the framework of a Quality Manage- ment System. Furthermore, Testboy GmbH confirms that the testing equip- ment and instruments used during the calibration process are subject to a permanent inspection process.
  • Seite 24: Operation

    Operation Operation ® Thank you very much for deciding on the Testboy Profi III LCD, a two-pole voltage tester with LCD display. DC voltages of 6V to 1400V and AC voltag- es of 6 V to 1000 V, polarity, rotating field and continuity tests of up to 50 ...
  • Seite 25 > 35 V are only for warning of hazardous voltages, not for meas- urement. Before the test, check the audibility of the warning sound at the ambient volume. Immediately replace the batteries when the battery icon is displayed. ® Testboy Profi LCD Plus...
  • Seite 26: General

    LED behind the display and an acoustic signal is indicated. If the batteries are completely discharged, if voltage is applied, a warn- ing triangle is indicated on the display. ® Testboy Profi LCD Plus...
  • Seite 27: Data Hold Function

    200 V, 50/60 Hz (phase to phase). One-hand test Locking both hand parts is possible due to the distance piece on the meas- urement line. The distance of the measurement probes can be adjusted by simply rotating. ( Schuko/CEE) ® Testboy Profi LCD Plus...
  • Seite 28: Lighting Of The Measurement Location

    FI/RCD trip test ® The Testboy Profi III LCD has a load that makes it possible to trigger a FI/RCD circuit breaker using two buttons (FI\RCD). The FI/RCD (max. 30 mA) is checked between the phase and circuit breaker (max. 240 V).
  • Seite 29: Replacing The Battery

    Use a screwdriver and release the screws. When inserting the batteries, en- sure that the polarity is correct. Close and attach the battery compartment. Batteries must not be disposed of with normal domestic waste. There will be a collection point near you! ® Testboy Profi LCD Plus...
  • Seite 30: Technical Data

    30 s on \ 240 s off Continuity test 0...50 … Resistance measurement 1999 +- 5% Protection class IP 65 Overvoltage category CAT IV 1000 V Testing standard IEC/EN 61243-3 Voltage supply 2 × 1.5 V Type AAA Micro ® Testboy Profi LCD Plus...
  • Seite 32 Testboy GmbH Tel: 0049 (0)4441 / 89112-10 Elektrotechnische Spezialfabrik Fax: 0049 (0)4441 / 84536 Beim Alten Flugplatz 3 D-49377 Vechta www.testboy.de Germany info@testboy.de...
