Alternative 2: In-rail charging (Accessory)
If the in-rail charging option is chosen, the lift unit must be fitted with a charger contact (70200062) and charger rails
before installation. The charger that is included with the lift unit is used.
Alteration of the charging method must be performed by authorized
personnel according to instructions issued by Handicare AB.

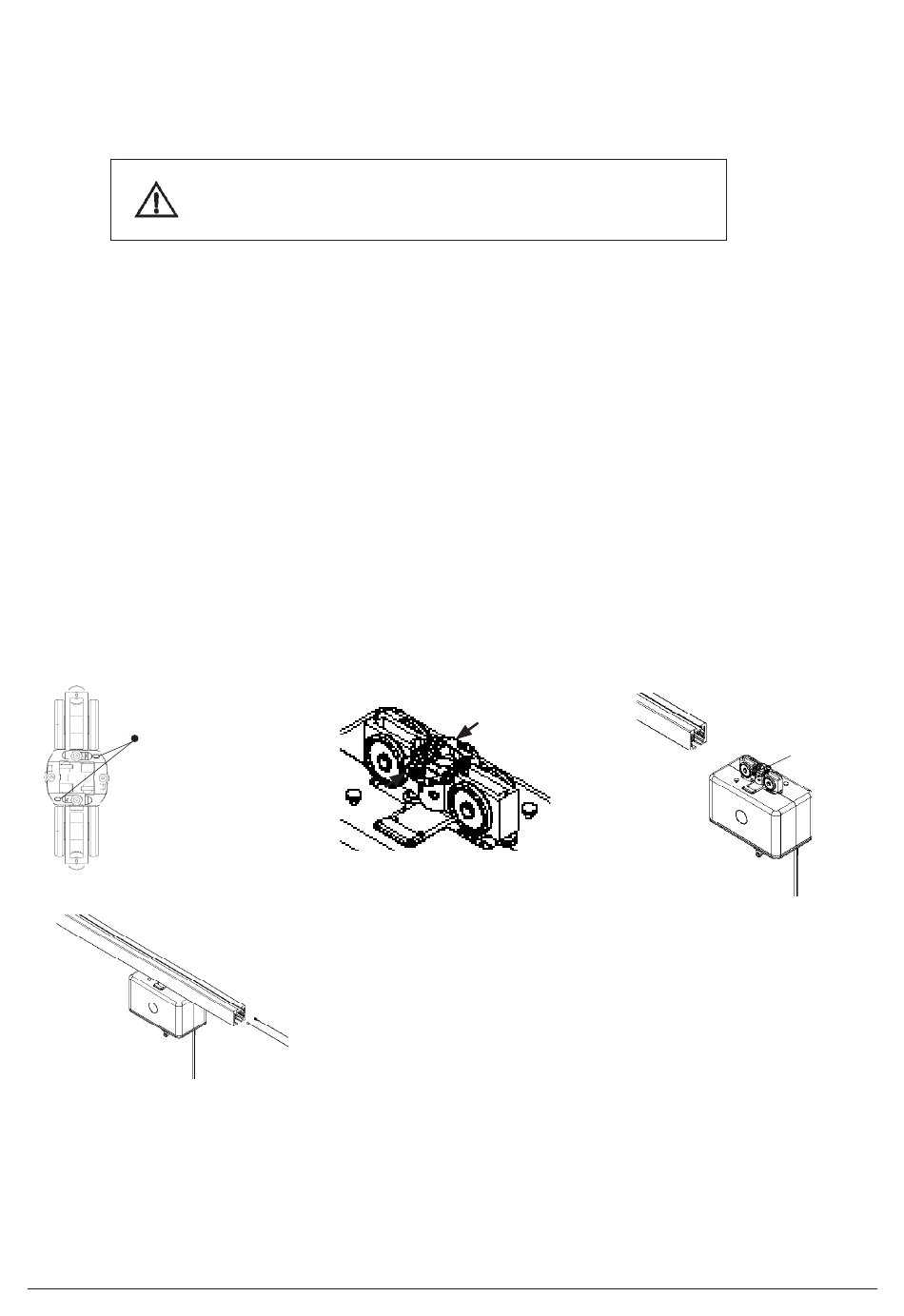

1) Set the charging points for in-rail charging. To set the charging points for in-rail charging, remove the spring pins that
hold the charger plate in place. Then, the dip switch on the circuit board is set for the desired charging function.
2) Check to ensure that the charger plate springs in and out when pressure is applied to the charger plate, see
fig 2.
3) Check to ensure that charger rails have been installed (installation of charger rails is described in the installation
manual for MilkyWay).
4) Guide the lift unit onto the rail so that the plus on the charging point is on the right side, according to fig 3.
5) Connect the red cable to the charger rail on the right side, the charger plate's plus side (positive), and the black cable
on the left side (negative), according to fig 4.
6) Install the end-stop on the rail.
1
NOTE! No spring pin
4
6
2 3
+
SystemRoMedic
M A N U A L
+ Plus
TM
