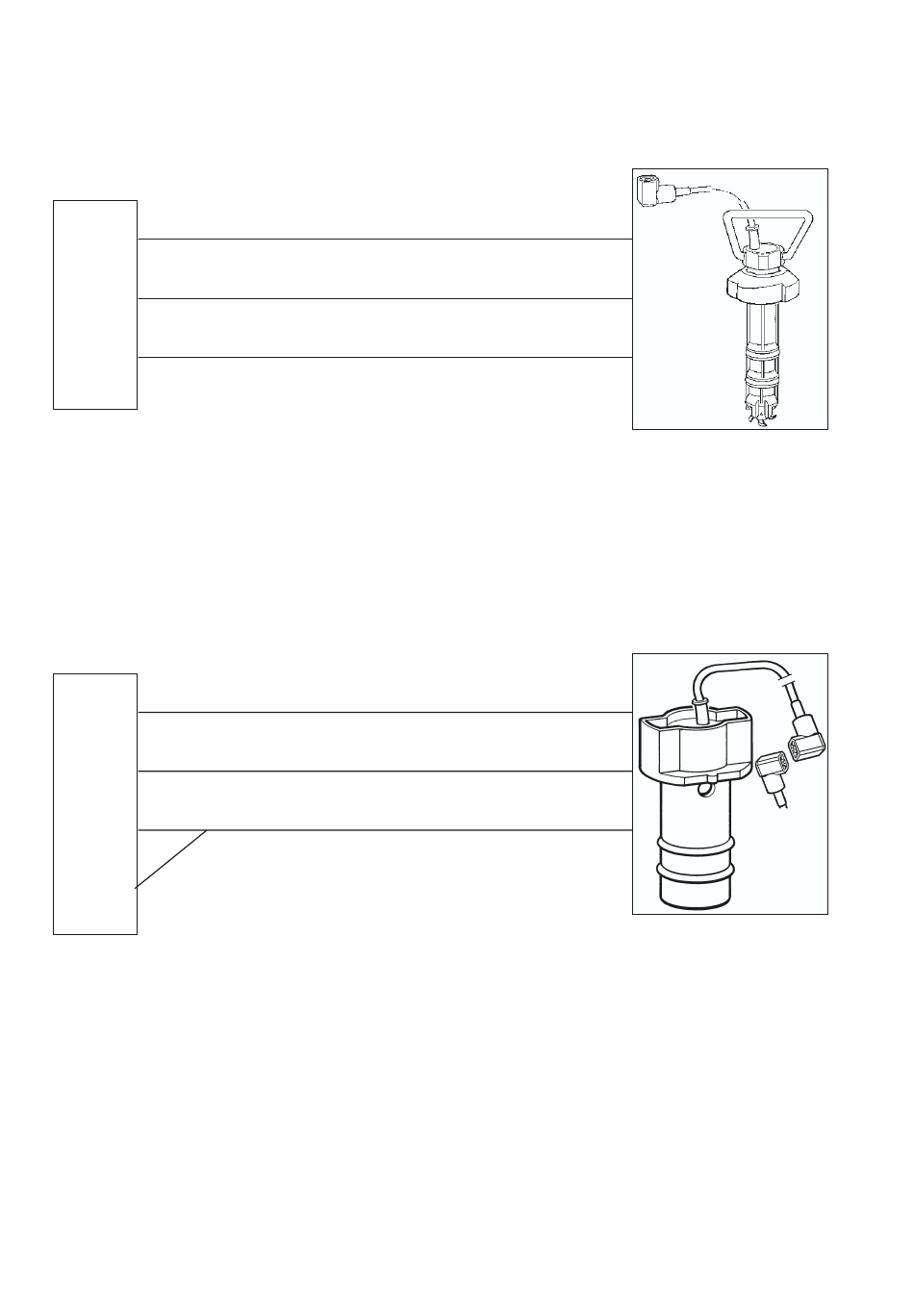

3. Analogue Sumlog transmitter
Sumlog transmitters from the series VDO LOGIC and VDO Ocean Line
can be connected. For this purpose remove the connector at the
transmitter cable and establish the connection according to the
following diagram.
Pin F
Pin M
Pin P
4. VDO Ocean Line sonar transmitter
The sonar transmitter N01 430 402 from the Ocean Line series can also
be connected to the Ocean Line Combi. For this purpose remove the
connector at the transmitter cable and establish the connection
according to the following diagram.
Pin F
Pin K
Pin P
Pin L

7.4 Cable lengths

The permissible cable lengths amount to:
- 10 m for the NMEA transmitter cables,
- 20 m for the analogue transmitter cables,
- 20 m for the CAN bus (ancillary operation),
- 20 m for the Easy Link bus.
The total number of Easy Link indicators connected to the Easy Link bus
must not exceed 20 (refer to page 59).
