7.2 Electrical installation as an ancillary device

CAN cables (pin C and pin D) of main and ancillary devices must be
connected in order to enable communication between the ancillary
device and the main device.
54
P
G

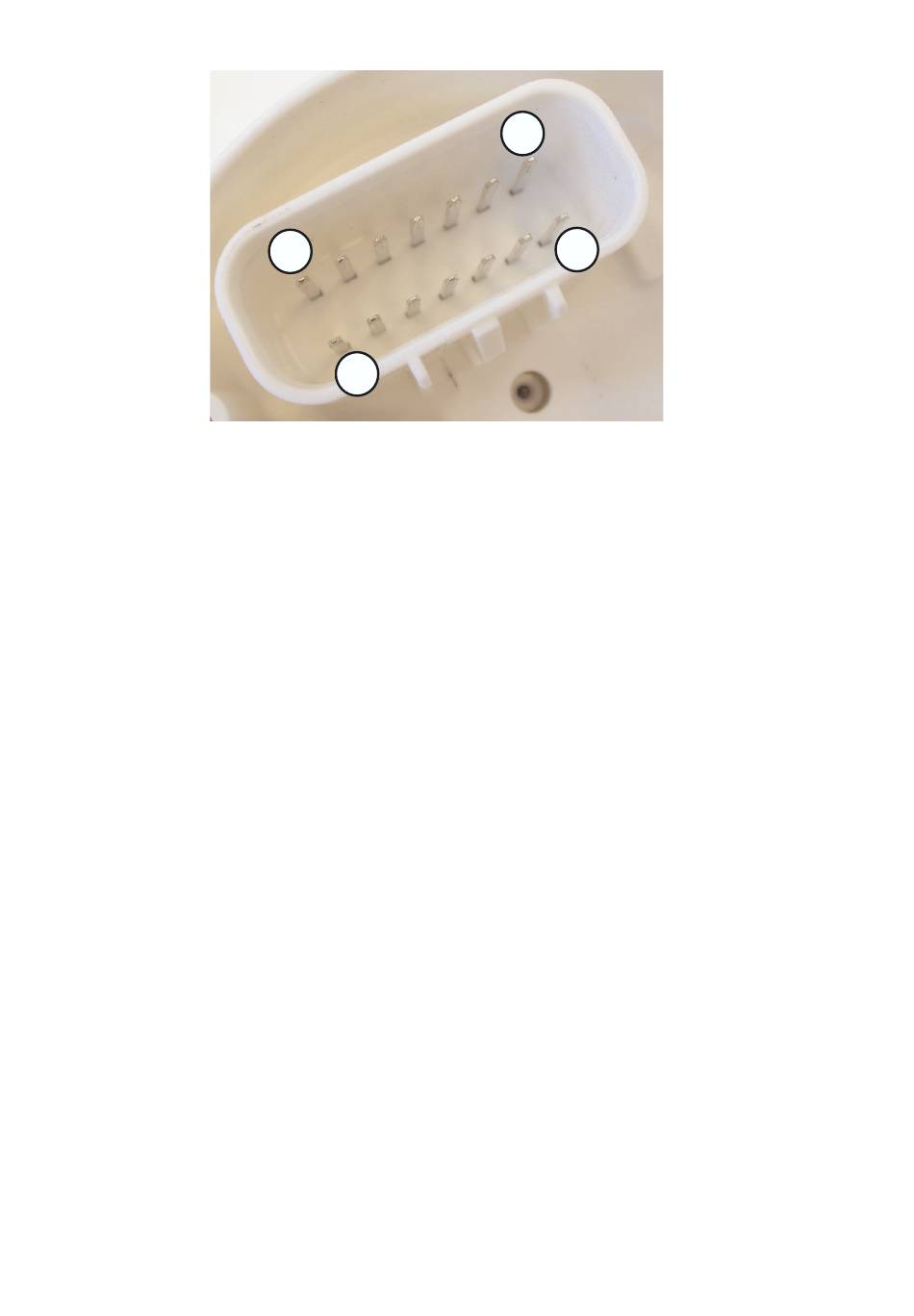

Pin: assignment:
A contact for external push-button
B Easy Link Data
C CAN low
D CAN high
E power supply Easy Link
F free
G power supply Combi (terminal 30)
H external illumination
J Easy Link ground
K free
L free
M free
N ignition Plus (terminal 15)
P ground (terminal 31)
H
A
