DMX operation

Setting the DMX starting address
For operation with a controller with DMX512 protocol, the device is equipped with 17 control channels. To be
able to operate the device with a DMX controller, the DMX starting address must be set. The starting
address depends upon which DMX controller is being used. Please refer to the controller's documentation.
1 Press the arrow button left or right to enter the mode menu.
2 Select SET with the arrow button up or down.
3 Press the OK button twice..
4 Use the arrow button up or down to select DMX Address and press the OK button to confirm.
5 Use the arrow button up or down to set the DMX starting address. Confirm your setting by pressing the
OK button.
6 When DMX control signals are received, the DMX control indicator lights up.
Note: Please make sure that you do not have any overlapping channels in order to control each device
correctly and independently from any other fixture on the DMX chain. If several devices are addressed
similarly, they will work synchronically.

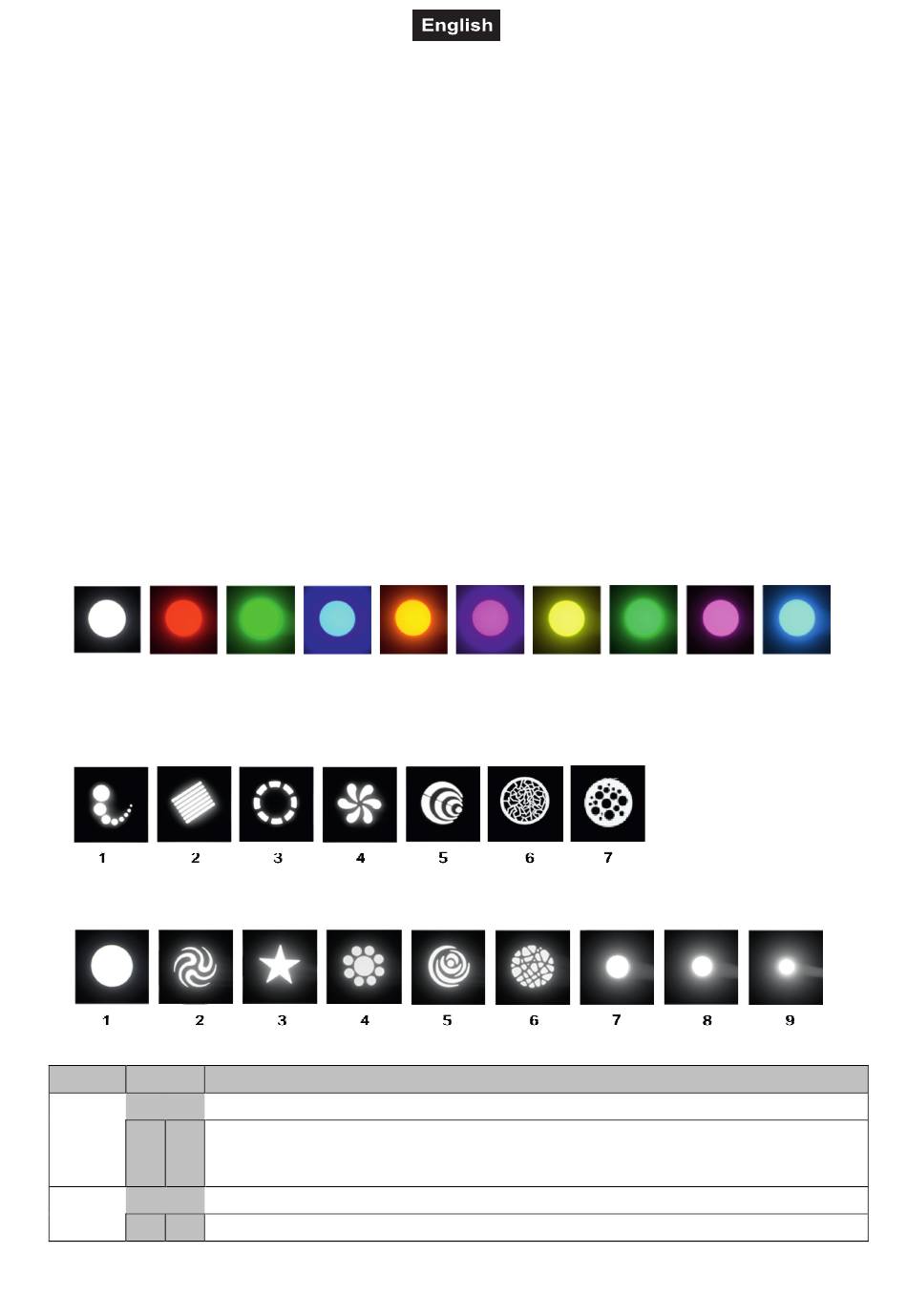

Functions in DMX mode

Farbrad / color wheel
Weiß/ Rot/
White Red
Rotierendes Goborad / rotating gobo wheel
Statisches Goborad / static gobo wheel
Channel Value
Horizontal movement (PAN)
1 Push slider up in order to move the mirror horizontally (PAN). Gradual mirror adjustment
0 255
from one end of the slider to the other (0-255, 128-center). The mirror can be stopped at
any position you wish.
PAN-movement with 16-bit resolution
2
0 255 Fine indexing
Orange/
Grün/ Blau/
Orange
Green Blue
Violett/
Gelb/
Purple
Yellow
Feature
31/36
Hellgrün/ Hellblau/
Pink/
Light green Light blue
Pink
00128934, Version 1.0
