INSTALLATION

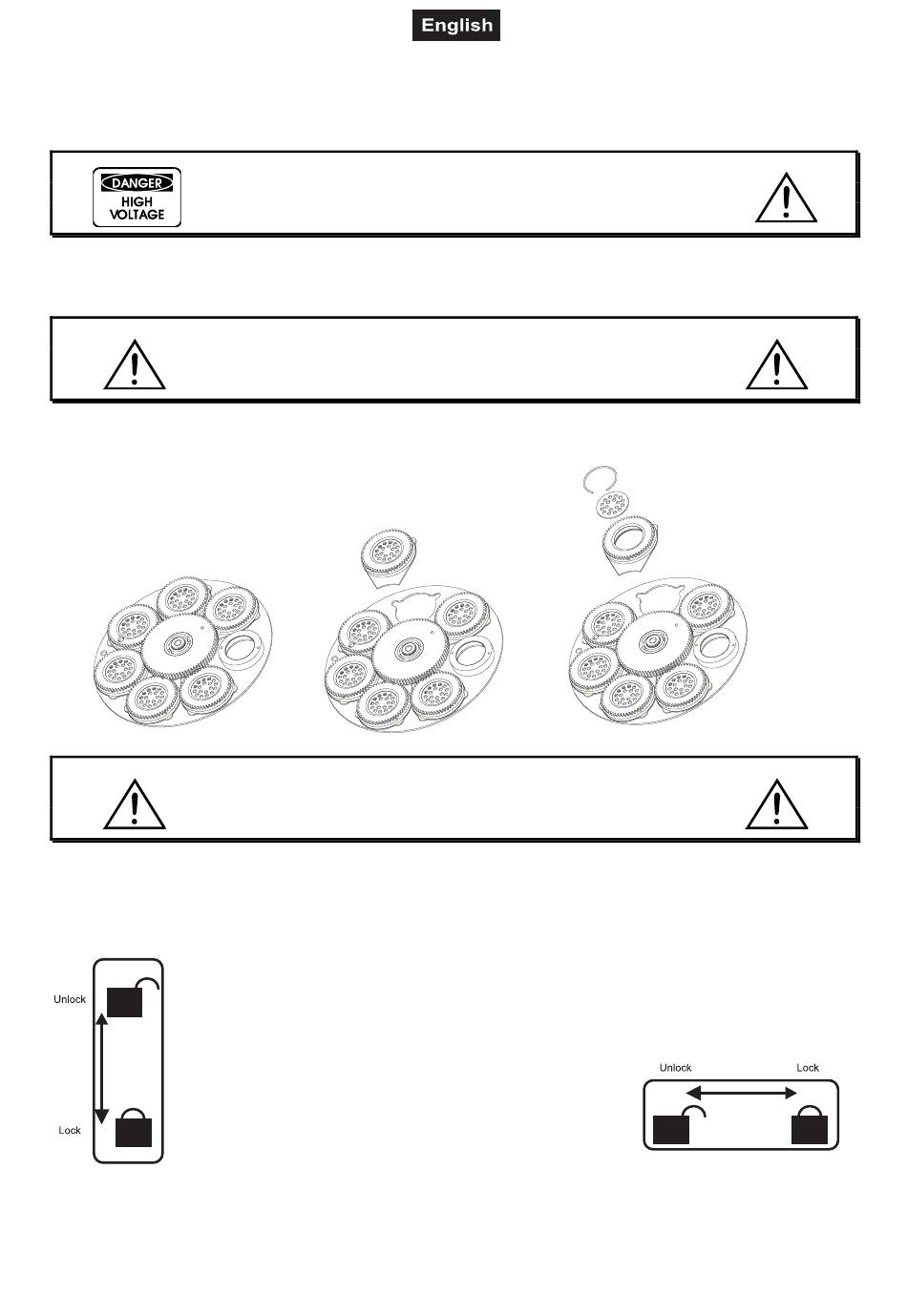

Inserting/Exchanging gobos

If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged, please
follow the instructions below:
Remove the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the
fixation-ring together and insert it in front of the gobo.

Transport safeguards

The device comes with locked transport safeguards in order to avoid damages.
Please note: All transport safeguards must be unlocked before operating the device!
TILT safeguard:
Slide the stop lever at the side of the projector arm from Lock to Unlock. Now, the projector
head can be freely moved in the Y-direction.
PAN safeguard:
Slide the stop lever at the bottom of the projector arm from
Lock to Unlock. Now, the projector head can be freely
moved in the X-direction.
Before transporting the device, please slide all stop levers from Unlock to Lock.
Install the gobos with the device switched off only.
Unplug from mains before!
Never unscrew the screws of the rotating gobo
as the ball bearing will otherwise be opened!
Slot-in gobo-system for exchanging gobos without tools!
Inserting/Exchanging gobos as described above.
DANGER!
CAUTION!
Notes!
25/36 00128934, Version 1.0
