Installation and Assembly
induSENSOR MSC 7210
Downloaded from www.Manualslib.com
7 A
(.28)

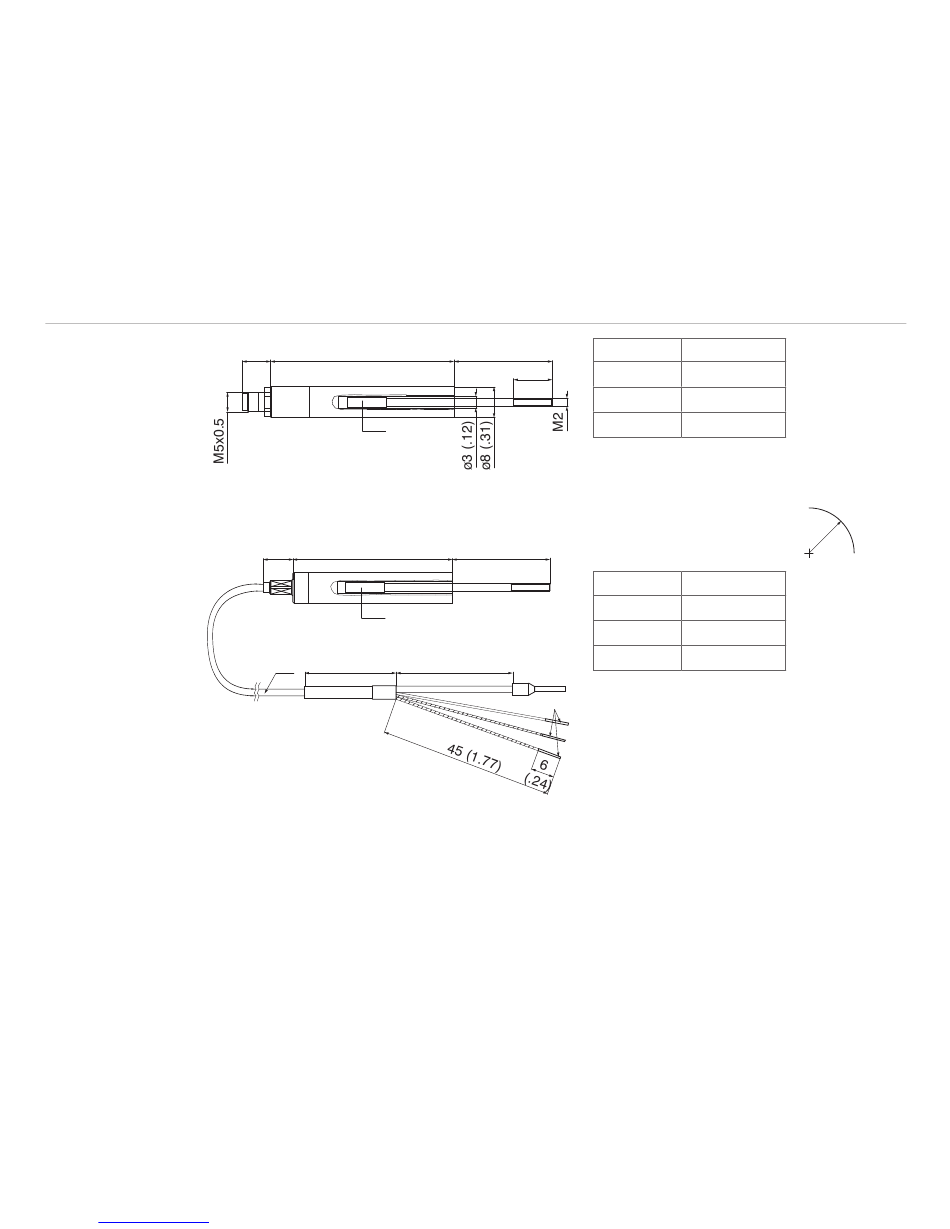

Fig. 6 Dimensional drawing LDR - x - SA, dimensions in mm
(inches), not to scale
6 B
(.24)
ø5 appr. 24 (.94)
(.20)
Fig. 7 Dimensional drawing LDR - x - CA, dimensions in
mm (inches), not to scale
Plunger in start of measuring range
1)
manuals search engine
25 (.98)
1)
10
(.39)
Plunger
25 (.98)
1)
Plunger
30 (1.18)
Leads
Dimension A
LDR-10-SA 47 (1.85)
LDR-25-SA 73 (2.87)
LDR-50-SA 127 (5.00)
Dimension B
LDR-10-CA 41 (1.61)
LDR-25-CA 67 (2.64)
LDR-50-CA 121 (4.76)
Bending radius
sensor cable
C7210-x for
LDR-x-SA:
8 mm (once)
15 mm (conti-
nuous)
Bending
radius sensor
cable C7210-x
for LDR-x-CA:
10 mm (once)
30 mm (conti-
nuous)
