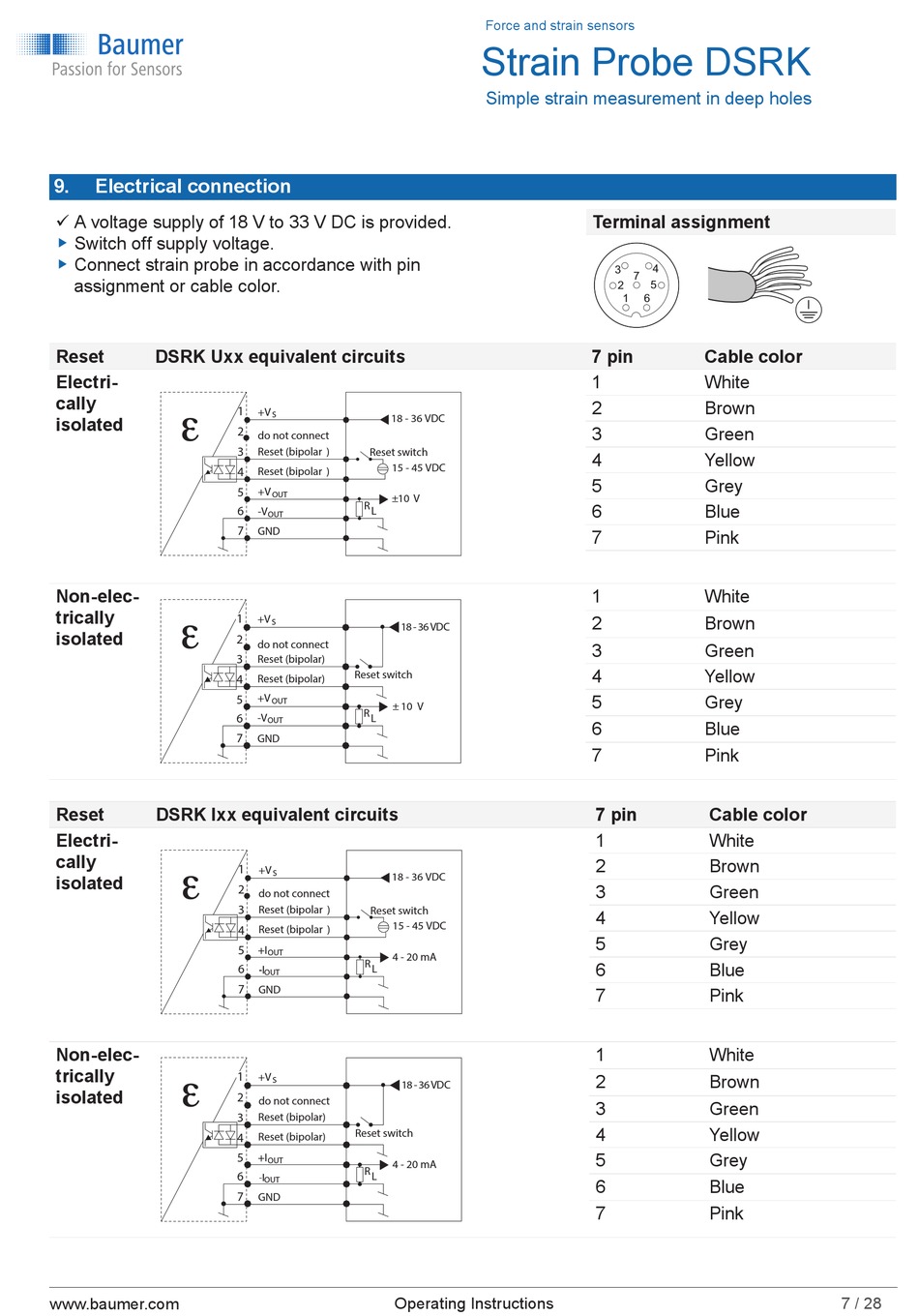

9.

Electrical connection

9 A voltage supply of 18 V to 33 V DC is provided.
Switch off supply voltage.
f
„
Connect strain probe in accordance with pin
f
„
assignment or cable color.
Reset DSRK Uxx equivalent circuits
Electri-
cally
isolated
Non-elec-
trically
isolated
Reset DSRK Ixx equivalent circuits
Electri-
cally
isolated
Non-elec-
trically
isolated
www.baumer.com
1
+V
S
18 - 36 VDC
2
do not connect
3
Reset (bipolar ) Reset switch
15 - 45 VDC
4 Reset (bipolar )
5 +V
OUT
±10 V
R L
6
-V
OUT
7
GND
1
+V
S
18 - 36 VDC
2
do not connect
3
Reset (bipolar)
Reset switch
4 Reset (bipolar)
+V
5
OUT
± 10 V
R L
6 -V
OUT
7
GND
1
+V
S
18 - 36 VDC
2
do not connect
3
Reset (bipolar ) Reset switch
15 - 45 VDC
4 Reset (bipolar )
5
I
OUT
4 - 20 mA
R L
6
OUT
7
GND
1
+V
S
18 - 36 VDC
2
do not connect
3
Reset (bipolar)
Reset switch
4 Reset (bipolar)
5 I
OUT
4 - 20 mA
R L
6
OUT
7
GND
Operating Instructions
Force and strain sensors
Strain Probe DSRK
Simple strain measurement in deep holes
Terminal assignment
4
3
7
2 5
1 6
7 pin
1
2
3
4
5
6
7
1
2
3
4
5
6
7
7 pin
1
2
3
4
5
6
7
1
2
3
4
5
6
7
Cable color
White
Brown
Green
Yellow
Grey
Blue
Pink
White
Brown
Green
Yellow
Grey
Blue
Pink
Cable color
White
Brown
Green
Yellow
Grey
Blue
Pink
White
Brown
Green
Yellow
Grey
Blue
Pink
