Strain Probe DSRK
Simple strain measurement in deep holes

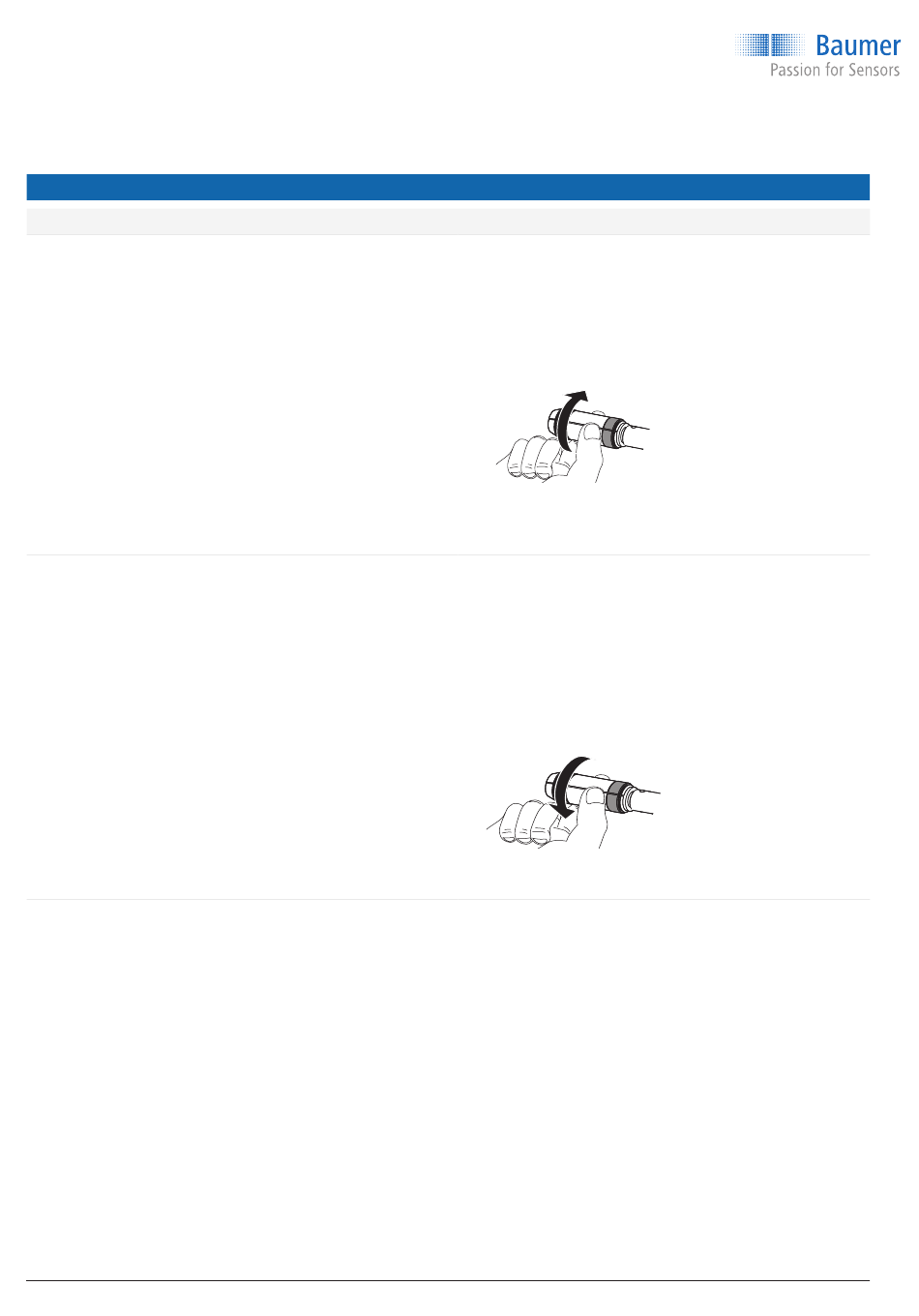

8. Troubleshooting assembly
Problem
Strain probe cannot be
fully inserted into the
hole.
Strain probe cannot be
clamped.
6 / 28
Force and strain sensors
Cause
Tensioning mechanism is
not fully relaxed.
Clamping collars do not
extend.
Operating Instructions
Action
ATTENTION! Measuring error via contaminated
f
„
measuring head. Do not touch scanning
surfaces on the measuring head with bare
hands.
Take the measuring head between the scanning
f „
surfaces and carefully rotate a half to a full turn.
Insert strain probe into the hole again.
f „
Remove strain probe from the hole.
f
„
ATTENTION! Measuring error via contaminated
f
„
measuring head. Do not touch scanning
surfaces on the measuring head with bare
hands.
Take the measuring head between the scanning
f „
surfaces and carefully rotate a quarter to a half
turn.
The clamping collars will come apart.
