Strain Probe DSRK
Simple strain measurement in deep holes
4.
Compatibility
The DSRK strain probe is fully compatible with
older strain probes in the DSRH series.
5.
Symbols in warning signs
Symbol
Warning term
DANGER
WARNING
CAUTION
ATTENTION
6.
Transport and storage
ATTENTION! Function errors via contaminated
f
„
measuring head. Do not touch scanning
surfaces on the measuring head with bare
hands. Follow safety instructions on the
packaging.
Check packaging and strain probe for damage.
f
„
7.
Preparing for assembly
LM
Ø DS
LM + 30

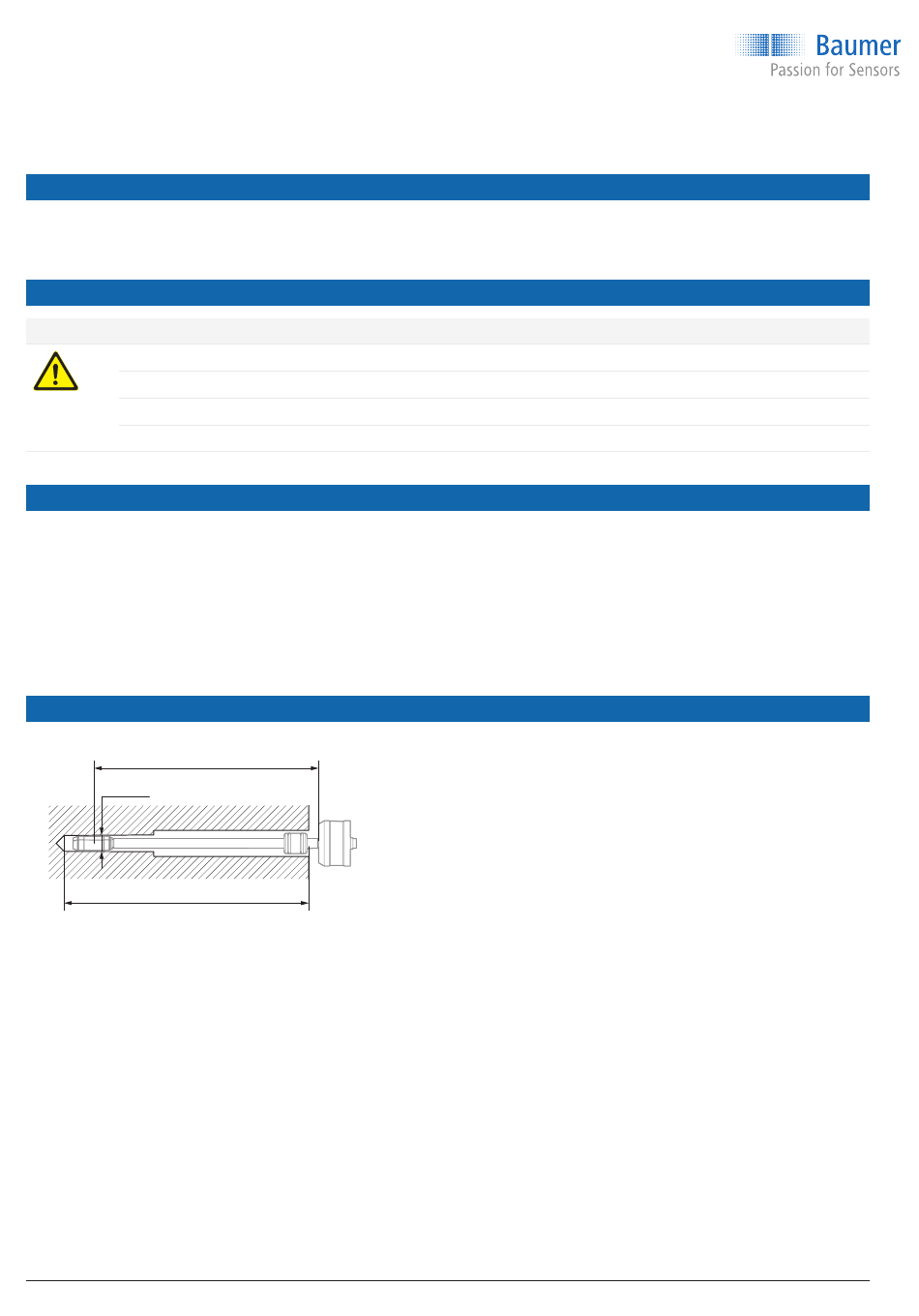

Fig. 3. Hole in the machine element
LM
Depth of measuring point
Ø DS Measuring head diameter
4 / 28
Force and strain sensors
Explanation
In situations which cause death or serious injuries.
In situations which can cause death or serious injuries.
In situations which can cause light or medium injuries.
For material damage
Operating Instructions
For installation notes see Page 5.
In the event of damage: Do not use strain probe.
f
„
Transport or store strain probe only in original
f
„
packaging.
Store strain probe where it will be secure against
f
„
shock.
Storage temperature: -40 ... +85 °C
Relative humidity: < 98 %
Prepare bore in the machine element or strut.
f
„
Length of hole: LM + 30 mm
Roughness: ra = 3.2 μm
Diameter precision at hole end: 0/+0.35 mm
www.baumer.com
