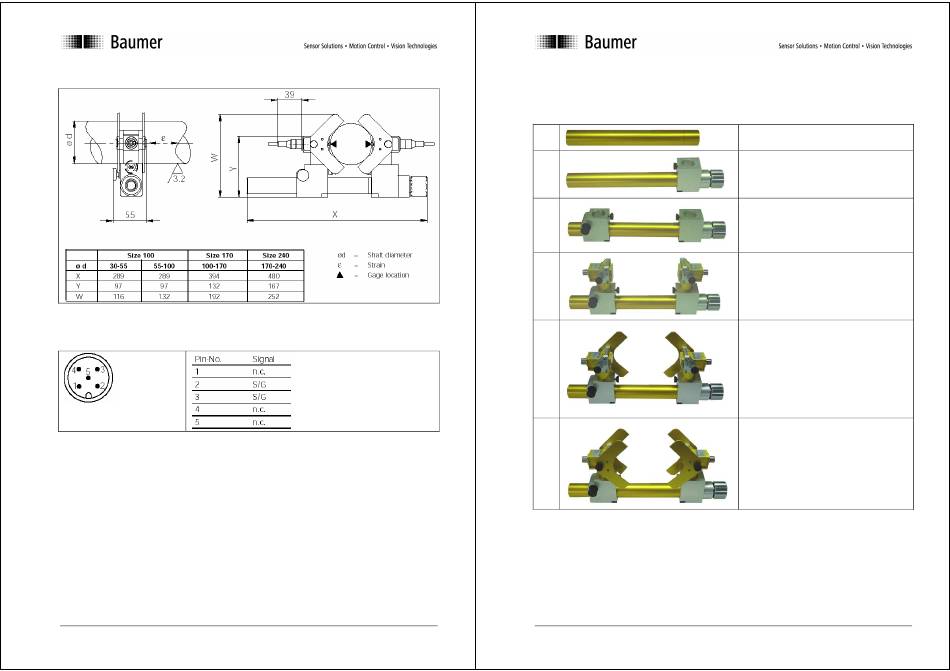

4.1.3

Dimensions

4.1.4

Electrical connections

21/32
V1.2
4.1.5

Assembly

Important!
Only assemble components of the same colour.
1
2
3
4
5
6
09.11.07
V1.2
Select the rack with the desired size
-
Push on the clamp slider at the end with
-
the two cut-ins.
Screw in until the first cut-in is just
-
visible.
Push the positioning slider onto the rack.
-
The positioning slider can be moved
-
freely by pressing the unlocking button.
Push the sensor heads with the correct
-
colour into the positioning and clamp
slides and tighten the sensor head
spring lock by hand.
Select the centring plates with the
-
corresponding colour (Yellow = two
diameter ranges, 30-55mm, 55-100mm)
Push the slot in the centring plate
-
beneath the centring plate retaining
screw.
Push the centring plate onto the locating
-
pins.
Tighten the centring plate retaining
-
screw by hand.
The sensor is then ready for use.
-
