Attachment to Operating Room Table
1. Open Base Unit Locking Levers.
2. Loosen knobs on link arm assembly.
3. Grasp auxiliary side rails on the side rail brackets and carefully place unit on the table's side
rails.
4. Align Base Unit with the operating table side rails and slide on.
5. Ensure operating table side rails protrude fully through the Base Unit auxiliary rails and
lock into place by tightening the side rail bracket locking knobs.
NOTE: For best alignment results, ensure the operating table side rails protrude evenly on
both sides of the Side Rail Brackets.
Downloaded from www.Manualslib.com
Open Locking Levers
Side Rail
Bracket
Operating
Table
Side Rail

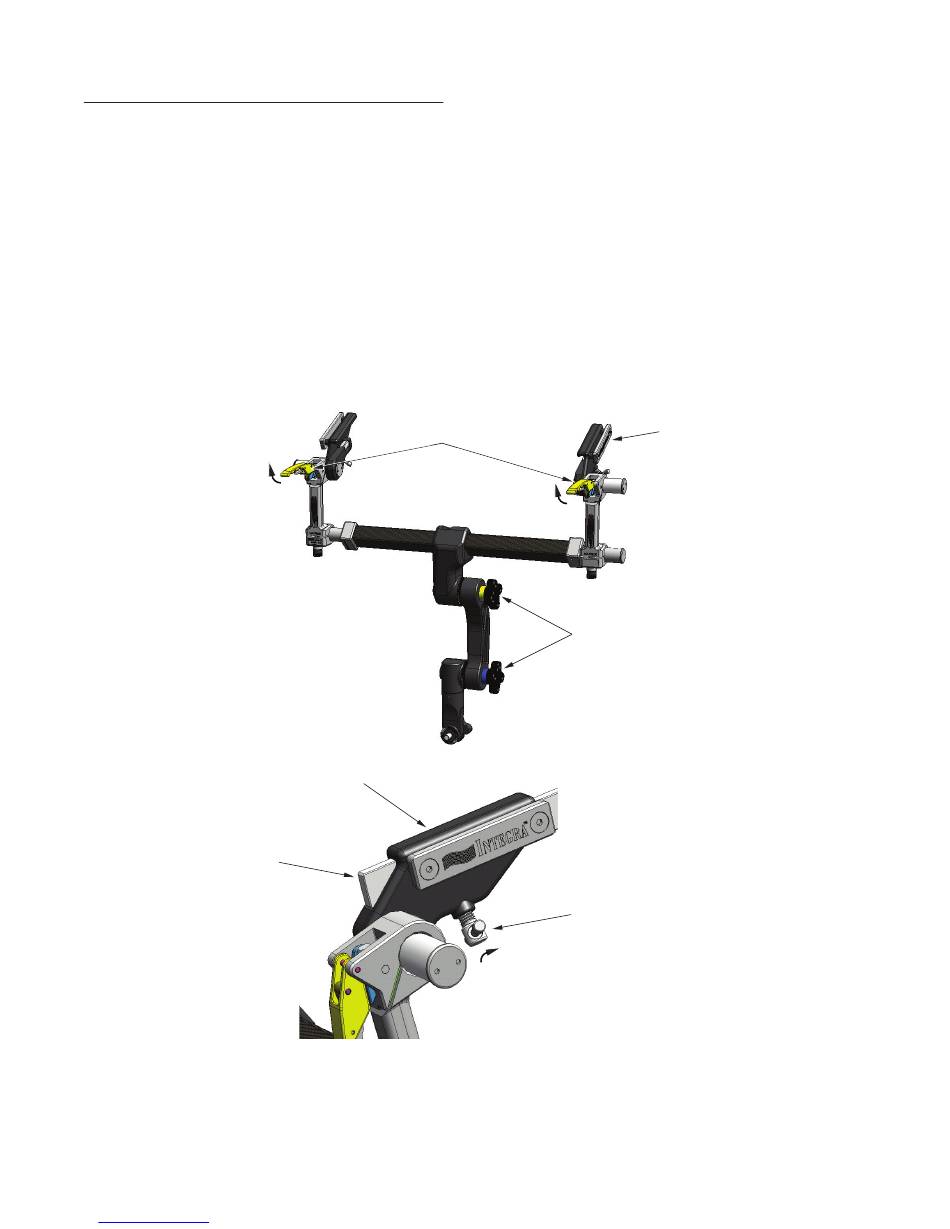

Figure 3 Mounting Base Unit to Operating Table
manuals search engine
Loosen
Link Arm
Knobs
Tighten Side
Rail Locking
Knobs
Page 5
Side
Rail
Brackets
