5. Maintenance

No maintenance!
To ensure the tool has a long service life, it must be cleaned after use. A light film of
oil should be applied to the visible, uncoated steel parts from time to time.

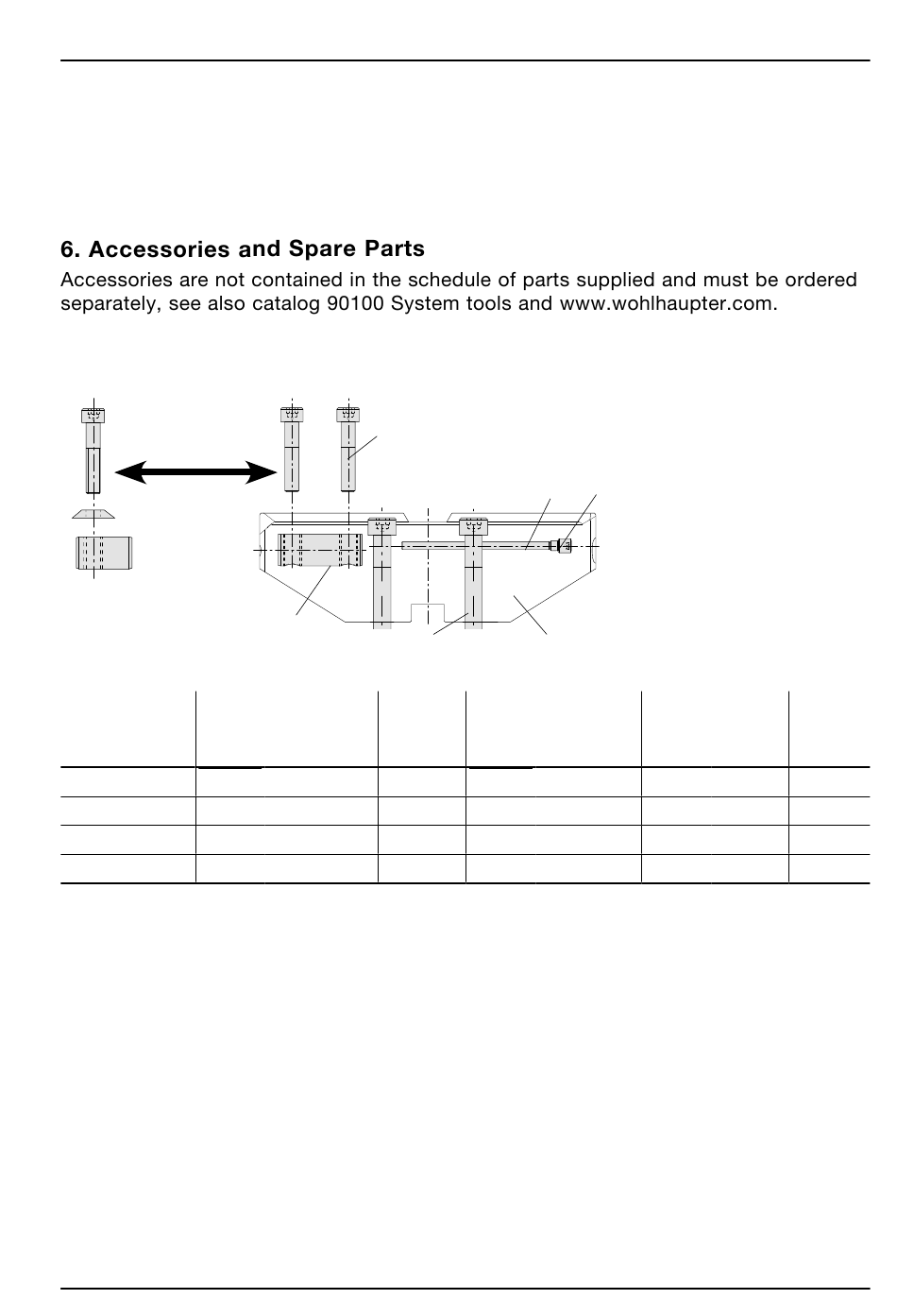

6.1 Basic D 60, Ø 200 – 505 mm (Ø 7.87" – 19.88")
Fixings for precision boring tool
537digital and 337 and counter
weight (not included
in the equipment supplied)
Serrated Cap screw ②
slide ①
Part No. Part No.
349051 (349001) 115170 s14/C (65 Nm) 115669
349052 (349002) 115170 s14/C (65 Nm) 115669
349053 (349003) 115170 s14/C (65 Nm) 115669
349054 (349004) 115170 s14/C (65 Nm) 115669
65 Nm = 575.30 in.lbs
④
③
②
Clamping-
Key bolt ③
(torque) Part No.
⑤
⑥
①
Cap screw ④
Key
Part No. (torque)
115118 s8/B (35 Nm) 115196 s4/F
115118 s8/B (35 Nm) 115196 s4/F
115118 s8/B (35 Nm) 115196 s4/F
115118 s8/B (35 Nm) 115196 s4/F
35 Nm = 309.78 in.lbs
English
Thread pin ⑤
Threaded
pin ⑥
Part No. Key Part No.
141112
141113
141114
141115
