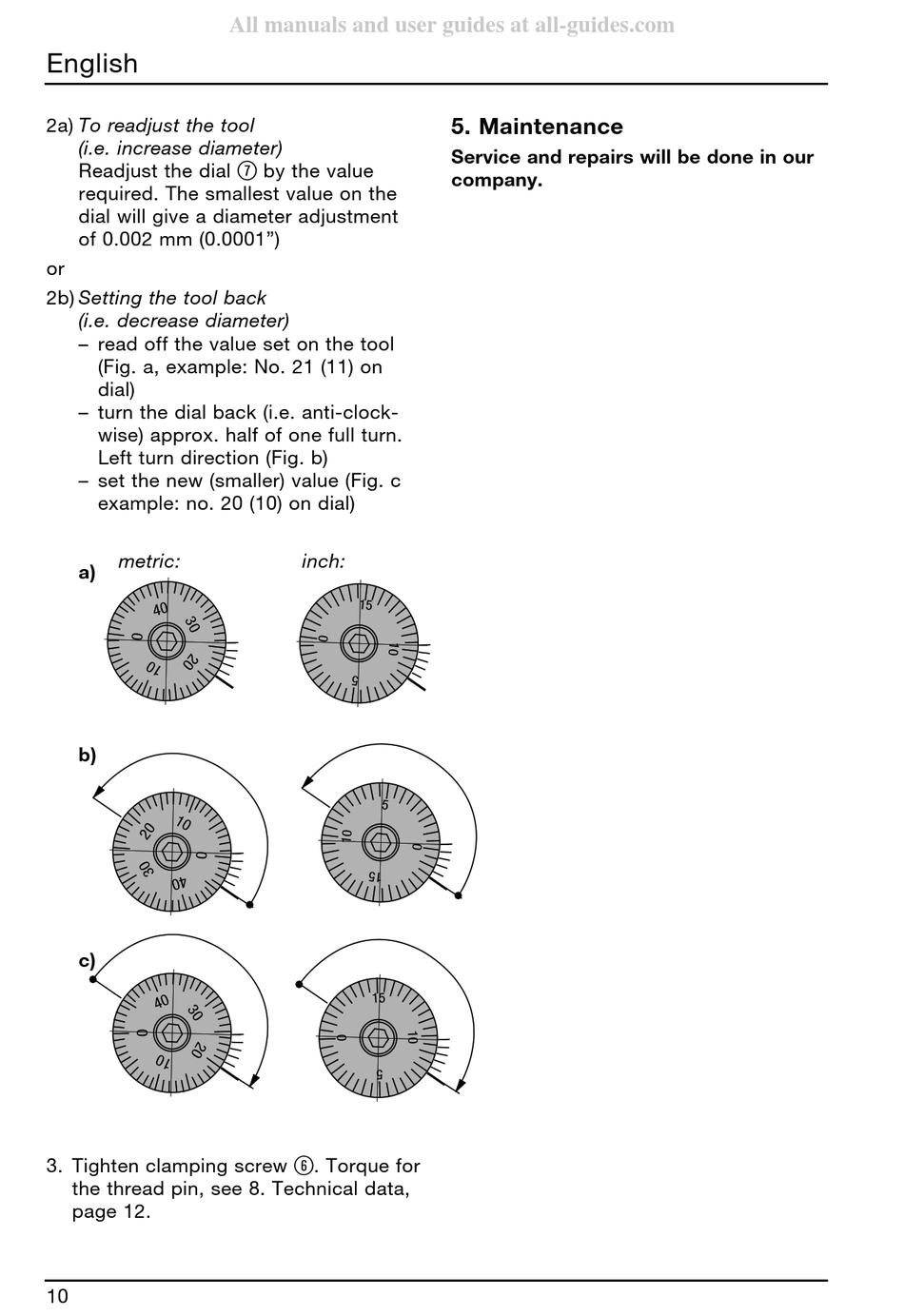

2a) To readjust the tool
(i.e. increase diameter)
Readjust the dial
required. The smallest value on the
dial will give a diameter adjustment
of 0.002 mm (0.0001")
or
2b) Setting the tool back
(i.e. decrease diameter)
– read off the value set on the tool
(Fig. a, example: No. 21 (11) on
dial)
– turn the dial back (i.e. anti-clock -
wise) approx. half of one full turn.
Left turn direction (Fig. b)
– set the new (smaller) value (Fig. c
example: no. 20 (10) on dial)
metric:
a)
b)
c)
3. Tighten clamping screw
the thread pin, see 8. Technical data,
page 12.
10
All manuals and user guides at all-guides.com
7
by the value
inch:
6
. Torque for

5. Maintenance

Service and repairs will be done in our
company.
