6.5 Insert holder

Insert holders for diverse applications and diverse reversible insert types:
see catalog 90100 System tools and www.wohlhaupter.com.
Information is also available on request.
Ð0,5

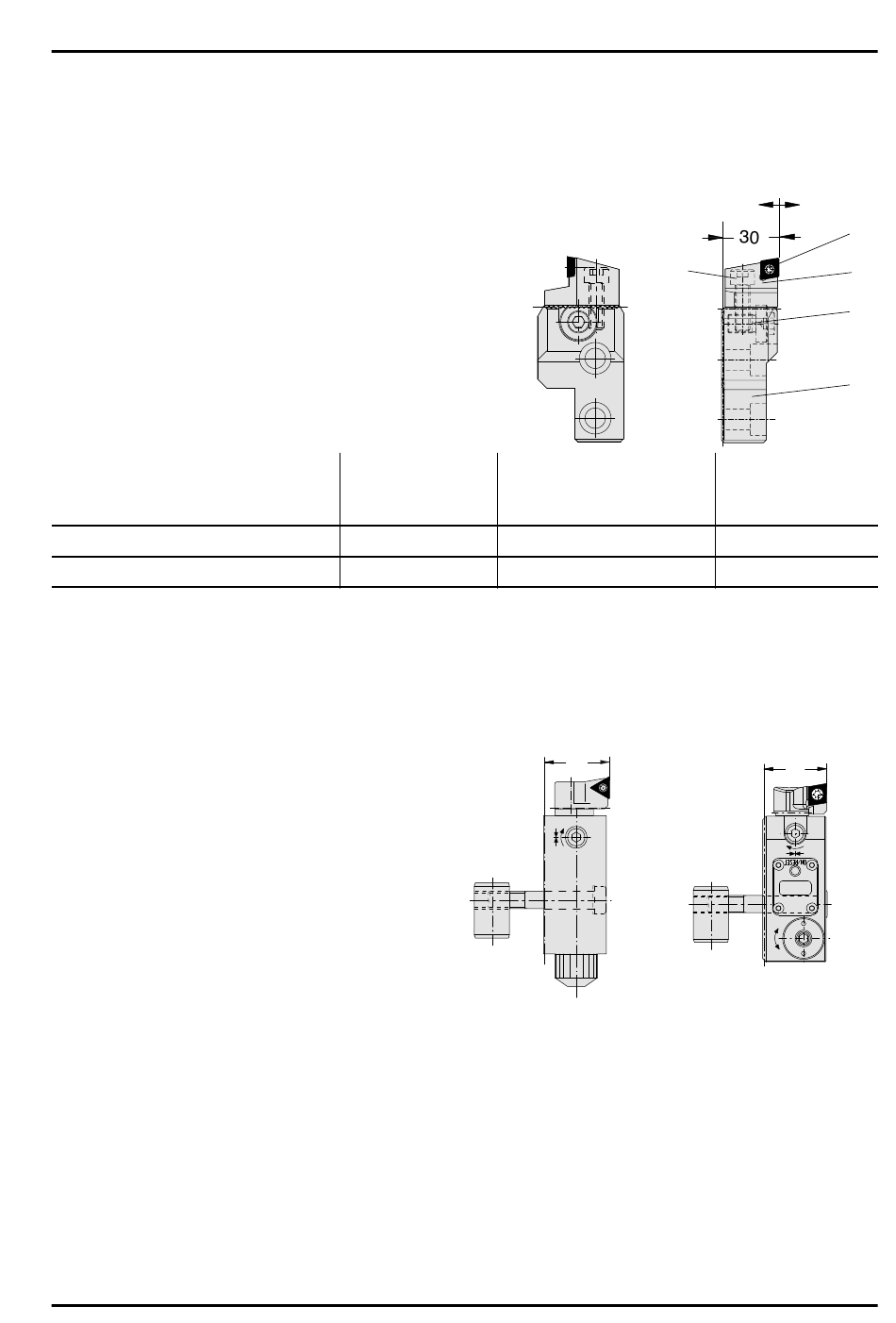

6.6 Height-adjustable insert holder
(Roughing Unit)
Support* ① Adjuster screw ②
Part No. Part No. Key
149055 315355
149055 315355
* including fixings ② und ④
Countersunk screw ⑤ see 6.9 fastening screws
6.7 Precision boring tools
337 und 537digital
See catalog 90100 System tools and
www.wohlhaupter.com as well as
Operating Instructions 102586.
27
+0,9
Insert holder ③
Part No. Form
149058
s6/B
149056
s6/B
Fixing screw ④
Insert Key
Part No. (torque)
070369
103 s6/B (20 Nm)
070369
104 s6/B (20 Nm)
20 Nm = 177 in.lbs.
Precision boring tool
337
30
+0,9
Ð0,5
④
Height-adjustable
insert holder
Part No.
149059
149057
Precision boring
tool 537digital
30
⑤
③
②
①
