Basic D 40:
Individual serrated slides, presetting of the
add-on tools (e.g. insert holder) by means
of threaded pin.
D 40, Ø 200 – 520 mm (7.87" – 20.47"):
Threaded pin in the serrated slide
Eco D 60:
Ø 465 – 1,020 mm (18.31" – 40.16"):
The base slide and the serrated slide are
joined using a groove-and-tongue connec-
tion. Fastening is with four cap screws and
two clamping bolts. The desired boring Ø is
then preset via the scale.
Flex D 60:
Ø 500 – 3,255 mm (19.69" – 128.15"):
The base slide and the serrated slide are
joined using a groove-and-tongue con-
nection. Fastening is with cap screws and
clamping bolts (the quantity depends on
the size of the serrated slide). Several zero
scale lines are applied on the base slide.
The allocation of the zero scale lines to the
serrated slides with the respective boring
range is shown on the type plate. The
smallest boring Ø in the respective boring
range is set if the zero scale line (of the
rule) of the serrated slide agrees with the
corresponding zero scale line of the base
slide, and if the respective add-on tool (e.g.
precision boring tool) is at zero.

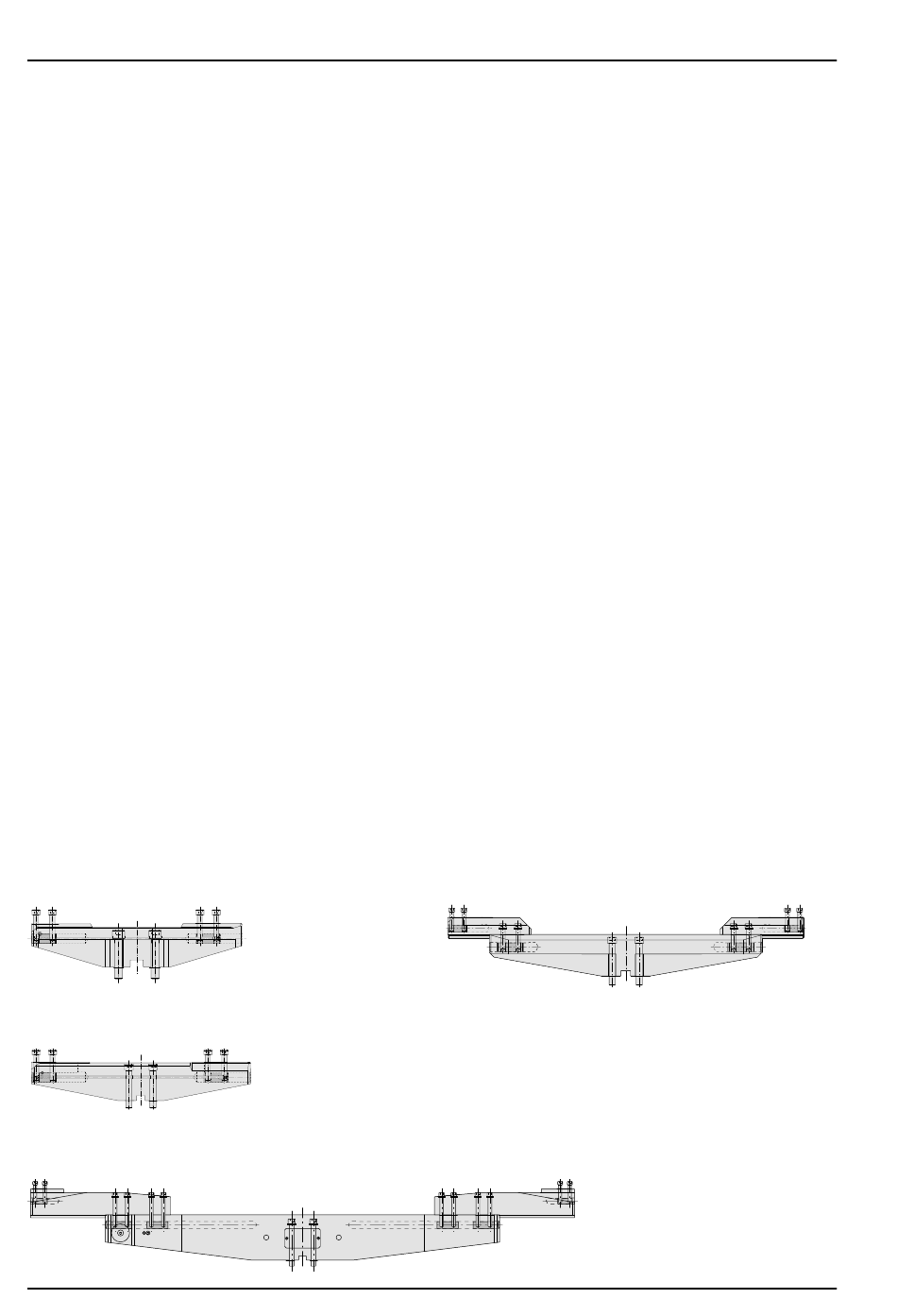

Basic D 60,
Ø 200 – 505 mm (7.87" – 19.88")
Basic D 40
Ø 200 – 520 mm (7.87" – 20.47")
Flex D 60
D60, Ø 500 – 3,255 mm (19.69" – 128.15")
20
The add-on tools (blade carriers and coun-
terweights) are then fastened on all serrated
slides with cap screws and clamping bolts.
Please note: The clamping bolt must be
installed so that the flat part points in the
direction of the screw head. This principle
applies to all clamping bolt fastening points.
The exact adjustment is made with an
adjusting device, via a gage or via a distan-
ce measurement with the aid of an auxiliary
fixture. With the Eco D 60 series, Ø preset-
ting via a measuring pin is possible for Ø
465 mm (Ø 18.3") and larger.
With the Basic D 40 series, there is an auxi-
liary bore in the middle of the serrated slide
(axis of rotation) to hold a cylindrical pin (Ø
10 mm) for Ø presetting.
All parts must be cleaned prior to installa tion
and then installed in a dry and grease-free
state.
Only original Wohlhaupter clamping ele-
ments are permissible for fastening all
components of this boring tool. See
„Accessories and spare parts" from page 23
for tightening torques.
Eco D 60,
Ø 465 – 1,020 mm (18.31" – 40.16")
See „Accessories and
spare parts" from page
23 for detail illustrati-
ons.
