AVENTICS | CD01-PA | R499050037–BAL–001–AH | English
Possible
Malfunction
cause
Pressure/flow Working
level is not pressure
reached or slowly too low
decreases.
Pressure/flow Leakage in
level is not the tubing
reached or slowly
decreases.

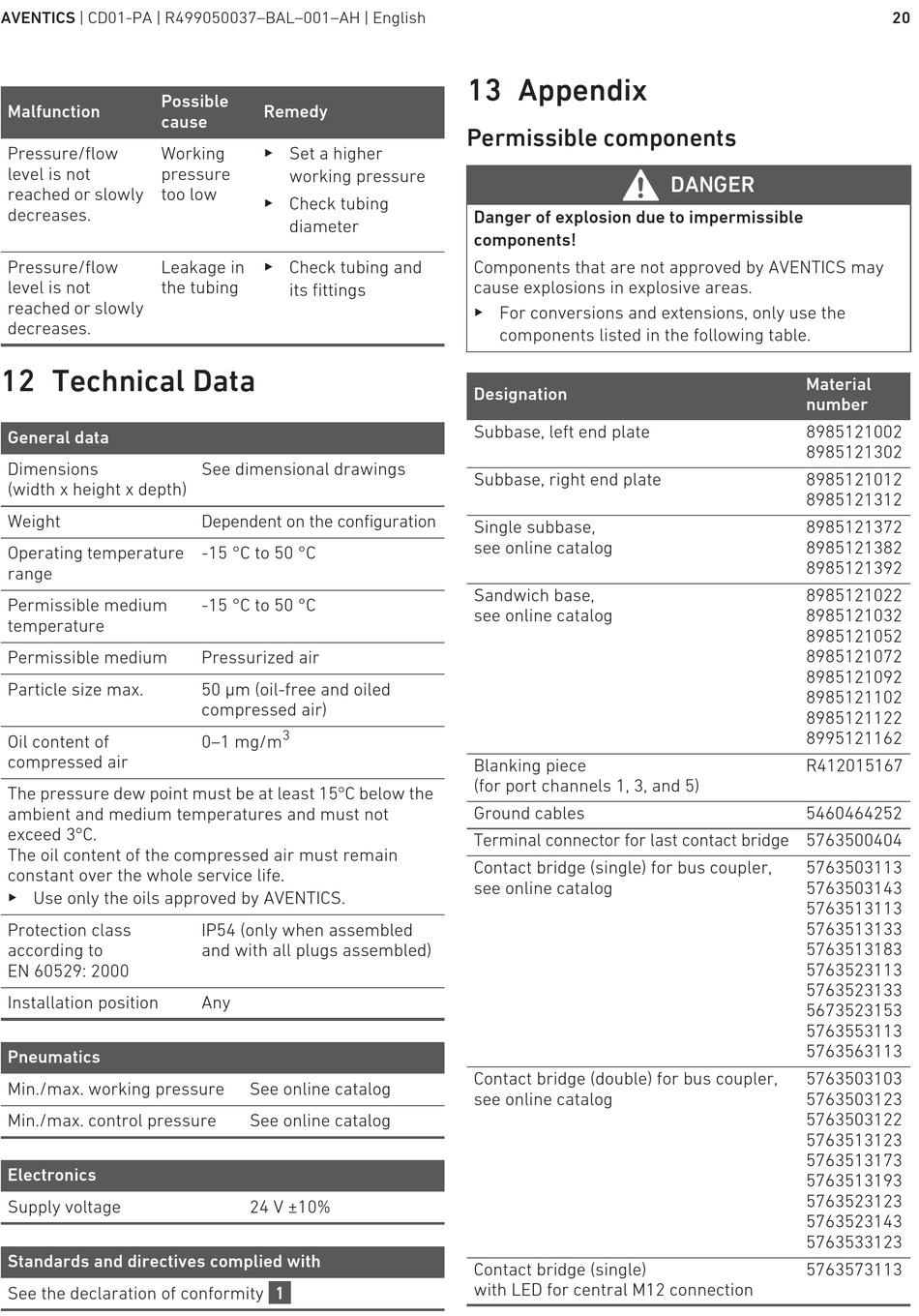

12 Technical Data

General data
Dimensions
(width x height x depth)
Weight
Operating temperature
range
Permissible medium
temperature
Permissible medium
Particle size max.
Oil content of
compressed air
The pressure dew point must be at least 15°C below the
ambient and medium temperatures and must not
exceed 3°C.
The oil content of the compressed air must remain
constant over the whole service life.
O Use only the oils approved by AVENTICS.
Protection class
according to
EN 60529: 2000
Installation position
Pneumatics
Min./max. working pressure
Min./max. control pressure
Electronics
Supply voltage
Standards and directives complied with
See the declaration of conformity
Remedy
O Set a higher
working pressure
O Check tubing
diameter
O Check tubing and
its fittings
See dimensional drawings
Dependent on the configuration
-15 °C to 50 °C
-15 °C to 50 °C
Pressurized air
50 μm (oil-free and oiled
compressed air)
3
0–1 mg/m
IP54 (only when assembled
and with all plugs assembled)
Any
See online catalog
See online catalog
24 V ±10%
1
13 Appendix
Permissible components
Danger of explosion due to impermissible
components!
Components that are not approved by AVENTICS may
cause explosions in explosive areas.
O For conversions and extensions, only use the
components listed in the following table.
Designation
Subbase, left end plate
Subbase, right end plate
Single subbase,
see online catalog
Sandwich base,
see online catalog
Blanking piece
(for port channels 1, 3, and 5)
Ground cables
Terminal connector for last contact bridge 5763500404
Contact bridge (single) for bus coupler,
see online catalog
Contact bridge (double) for bus coupler,
see online catalog
Contact bridge (single)
with LED for central M12 connection
DANGER
Material
number
8985121002
8985121302
8985121012
8985121312
8985121372
8985121382
8985121392
8985121022
8985121032
8985121052
8985121072
8985121092
8985121102
8985121122
8995121162
R412015167
5460464252
5763503113
5763503143
5763513113
5763513133
5763513183
5763523113
5763523133
5673523153
5763553113
5763563113
5763503103
5763503123
5763503122
5763513123
5763513173
5763513193
5763523123
5763523143
5763533123
5763573113
