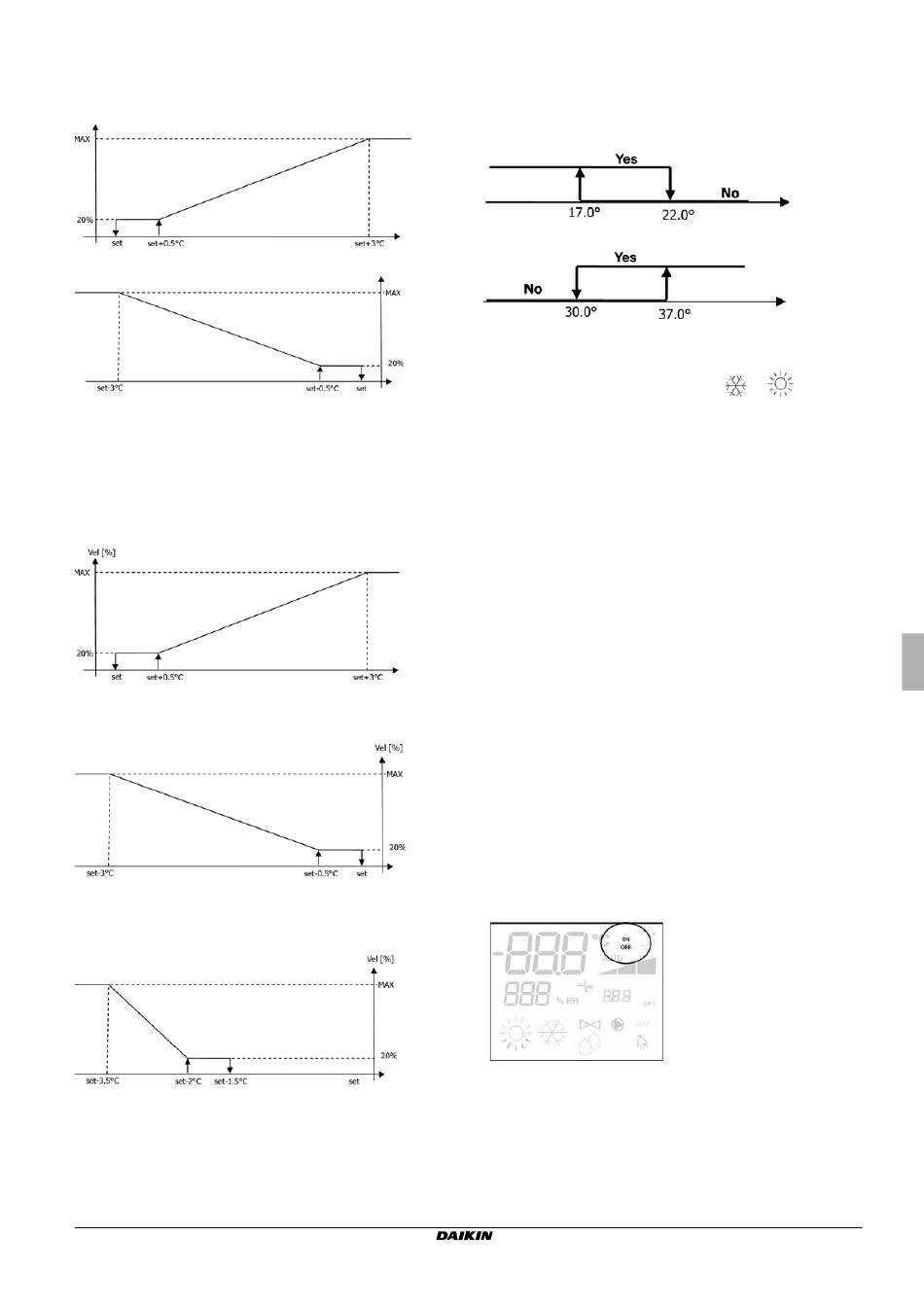

AUTOMATIC OPERATION LOGIC (AUTO):
WITH 3 OR 4-SPEED CONFIGURATIONS AND ON/OFF
VALVE(S) OR W/O VALVE(S):
COOLING
HEATING
N.B.: in case of 4-speed configuration and valve, ventila-
tion in heating mode is shifted by 0.5°C to permit
a natural convection phase.
WITH 3 OR 4-SPEED CONFIGURATIONS AND
MODULATING VALVE(S):
COOLING
HEATING WITH 3-SPEED CONFIGURATIONS
HEATING WITH 4-SPEED CONFIGURATIONS
FWEC3
Advanced plus electronic controller
FC66002765
WATER CONTROL
Irrespective of the type of fan present (modulating or non-
modulating), fan operation will be constrained by the system
water temperature control. Based on the operation mode, dif-
ferent heating or cooling thresholds will be enabled.
COOLING
Room
HEATING
temperature
Upon a call of the thermostat, the absence of the enabling
signal will be indicated on the display by the flashing of the
Room
symbol representing the active mode (
temperature
The enabling signal is ignored:
if the water sensor is not included (P04 = 0) or in alarm
status because disconnected
in the cooling mode with 4-pipe configurations
FORCED OVERRIDES
The normal fan operating logic (modulating or non-modulating)
will be ignored in particular override situations that may be
necessary to ensure correct control of the temperature or the
unit operation. This may occur:
in the cooling mode:
o n-board controller (P01 = 0) and configurations with valve:
the minimum speed available will be maintained even once
the temperature has been reached.
Room
o n-board controller and valveless configurations: after
temperature
every 10 minutes in which the fan remains idle a 2 minute
fan rotation is carried out at medium speed to enable the
air sensor to read the room temperature more correctly.
In the heating mode
w hile the heating element is on: the fan is forced to run at
medium speed.
o nce the heating element has gone off: a 2 minute
post-ventilation cycle will be run at medium speed.
(N.B.: this cycle will be completed even if the thermostat
is switched off or in the event of a changeover to the cool-
ing mode).
Room
temperature
DISPLAY
The display shows the fan status
Room
temperature
O n flashing: fan in standby mode
O n steadily lit: fan on
O FF: fan is disabled to operate by natural convection only
and fan speed (with indication of "automatic" logic if proper)
enabled or selected (in case of stand-by fan).
Water
temperature
Water
temperature
or
).
Installation and user manual
9
