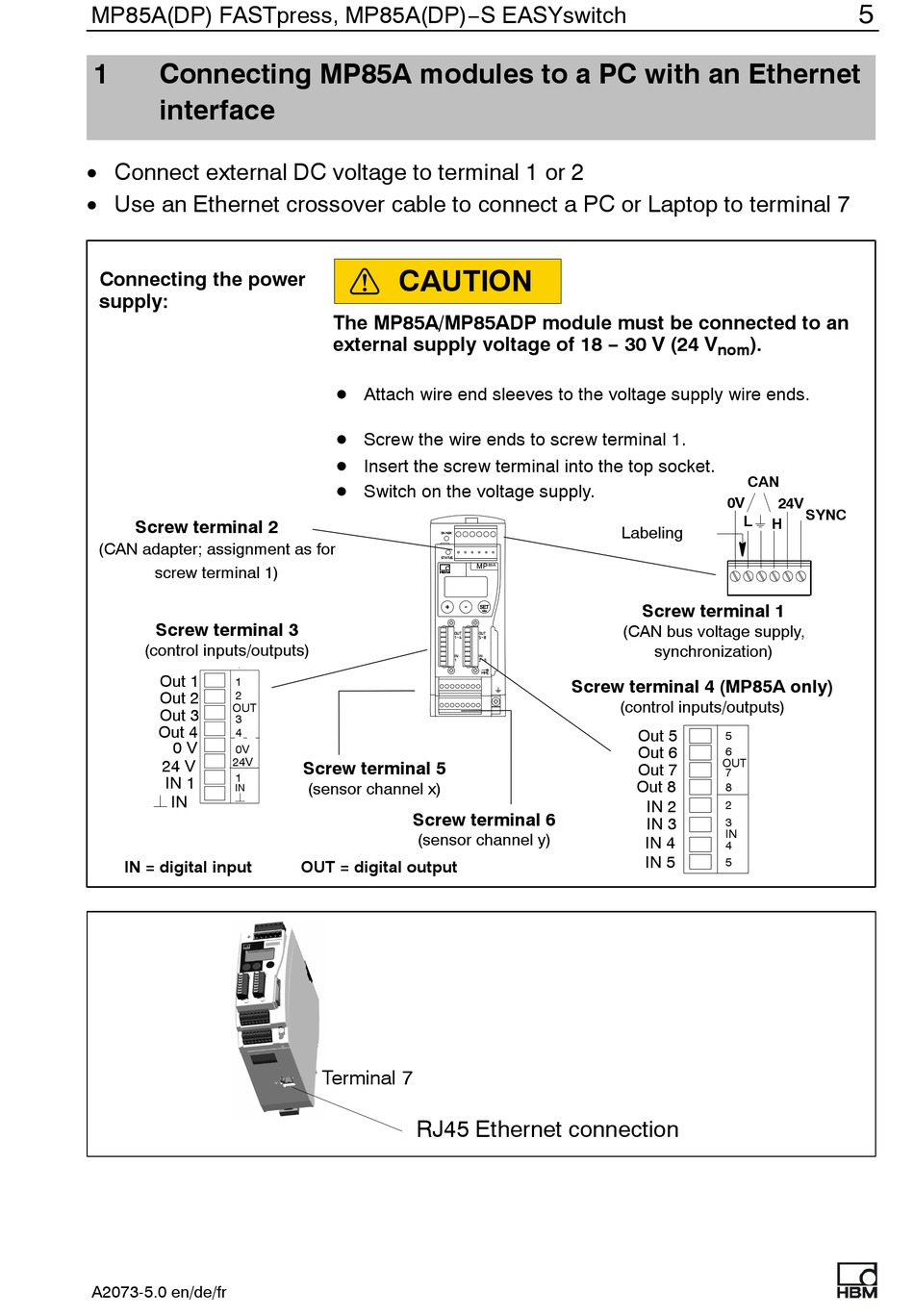

1 Connecting MP85A modules to a PC with an Ethernet
interface
• Connect external DC voltage to terminal 1 or 2
• Use an Ethernet crossover cable to connect a PC or Laptop to terminal 7
Connecting the power
supply:
Screw terminal 2
(CAN adapter; assignment as for
screw terminal 1)
Screw terminal 3
(control inputs/outputs)
Out 1
1
Out 2
2
OUT
Out 3
3
Out 4
4
0 V
0V
24V
24 V
1
IN 1
IN
IN
IN = digital input
A2073-5.0 en/de/fr
CAUTION
The MP85A/MP85ADP module must be connected to an
external supply voltage of 18 − 30 V (24 V
D Attach wire end sleeves to the voltage supply wire ends.
D Screw the wire ends to screw terminal 1.
D Insert the screw terminal into the top socket.
D Switch on the voltage supply.
Screw terminal 5
(sensor channel x)
Screw terminal 6
(sensor channel y)
OUT = digital output
Terminal 7
RJ45 Ethernet connection
nom
0V
L
Labeling
Screw terminal 1
(CAN bus voltage supply,
synchronization)
Screw terminal 4 (MP85A only)
(control inputs/outputs)
Out 5
5
Out 6
6
OUT
Out 7
7
Out 8
8
IN 2
2
IN 3
3
IN
IN 4
4
IN 5
5
5
).
CAN
24V
SYNC
H
