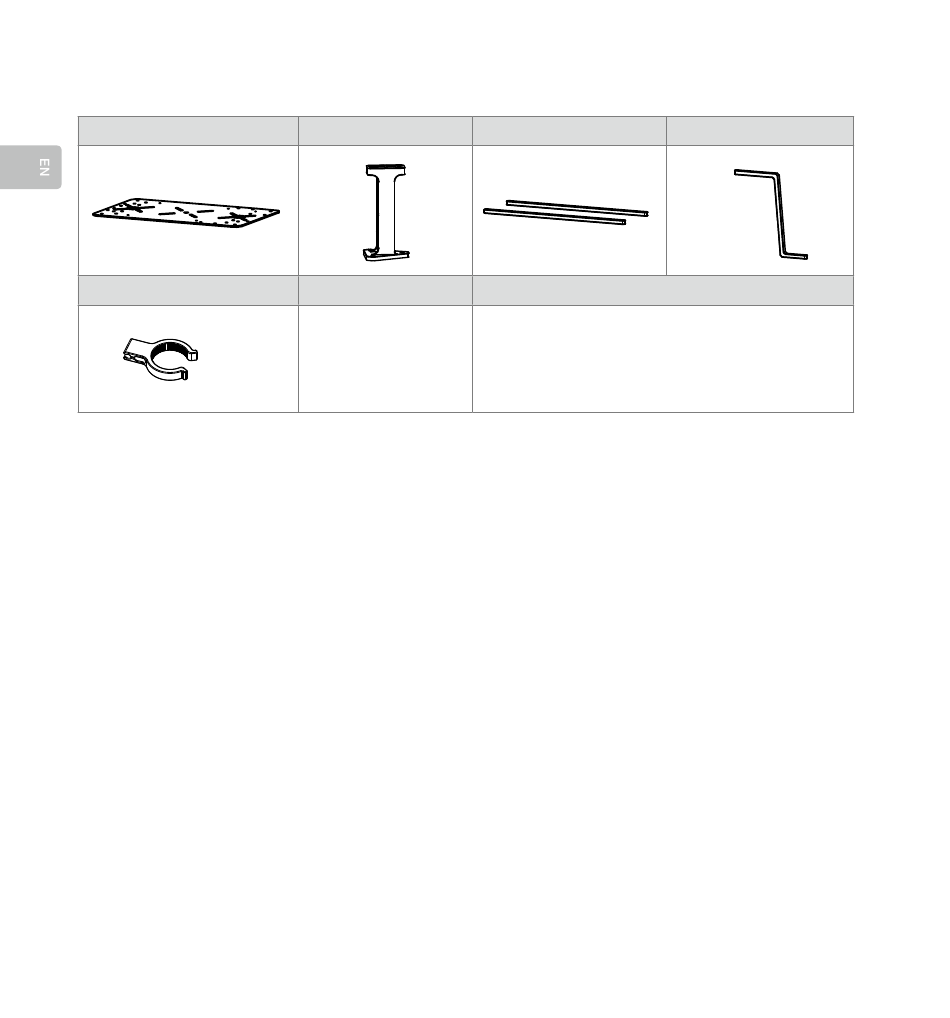

Matrice 600 Accessories*
Upper Expansion Plate×1 Bracket×4
Antenna Clip×2
*Complimentary with purchase of both the DJI Matrice 600 and D-RTK.
Ground System Installation and Connection
The following uses the DJI A3 Flight Control System, DJI DATALINK PRO 900 and DJI Intelligent Flight
Battery to illustrate a typical installation and connection.
Installation
1. Mount the DATALINK PRO Bracket onto the Base Board with two M2.5×5 screws.
2. Mount the GNSS Antenna onto the Antenna Bracket I with three M3.0×8 screws, and then fix the
Antenna Bracket I onto the Base Board.
3. Fix the D-RTK Processor onto the Base Board as the Ground System.
4. Fix the DATALINK PRO Base Station onto the DATALINK PRO Bracket.
5. Fix the battery in place with velcro and then fix the Base Board onto an appropriate tripod*.
*Supports ordinary camera and camcorder tripods mounted with 1/4-20 screws.
© 2016 DJI All Rights Reserved.
4
Assistant Bracket×2
Screw
M2.5×5
M3.0×8
Antenna Bracket III×4
