Inlet Screen Installation

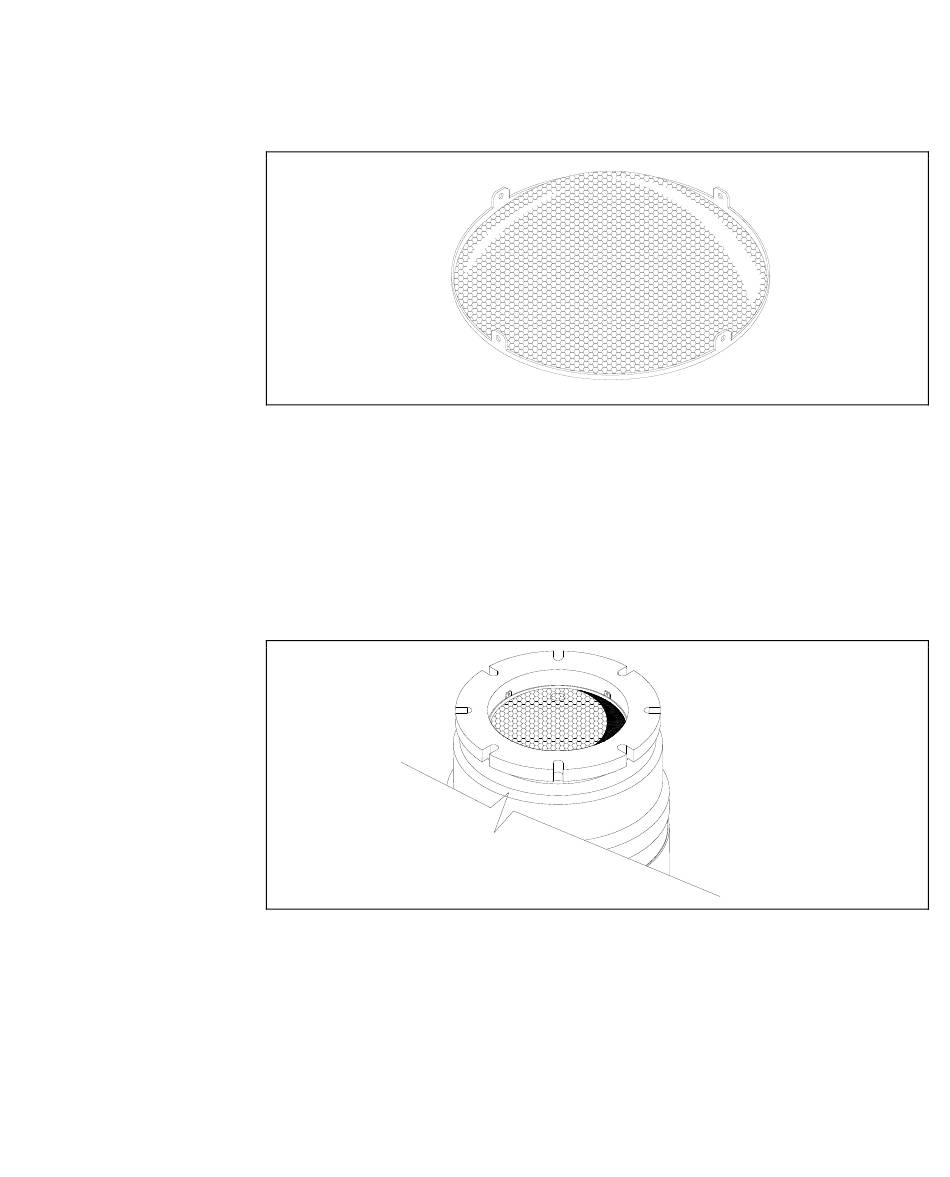

Figure 20
The inlet screen mod. 969-9302 prevents the blades of the pump from
being damaged by debris greater than 0.7 mm diameter. The inlet
screen, however, does reduce the pumping speed by about 10 %.
The inlet screen is fitted in the upper part of the pump, as shown in
the figure.
Figure 21
The screen can be mounted on each pump. The screen can be
removed as shown in the following figure.
Special Turbo-V 1K-G User Manual / 87-901-006-01 (A)
Technical Information
Inlet Screen Installation
17
237/258
