Problem
If you're having a problem with the CNB Chassis:
Buggy pulls to one side
Brakes seem ineffective
Clutch does not engage
Clutch does not
disengage
Buggy does not "go"
Suspension not smooth
or free
Shocks leaking oil
2-speed transmission
shifts at too low a speed
2-speed transmission
shifts at too high a speed
Screws loosen and/or fall
out during use
Steering sensitivity is
"sluggish"
lf your Buggy's steering seems sluggish or slow to react, the
servo saver spring could be too loose. To increase steering
response time, thread the servo saver adjustment ring up to
tighten the servo saver spring.
WARNING
Tightening the servo saver spring increases the
chance of damaging the steering servo during a crash. Do so at
your own risk.
FOR MORE TIPS AND TROUBLESHOOTING SOLUTIONS CHECK OUT
Cause
1. Steering trim out of adjustment
2. Toe angle out of adjustment
3. One wheel is hanging or has damaged bearing
1. Brake linkage out of adjustment
2. Brake disc(s) worn
1. Clutch shoes damaged or worn
2. Clutch bell damaged or worn
3. Clutch shoes glazed
Clutch spring(s) worn or damaged
1. Stripped or damaged spur gear(s)
2. Stripped differential gear(s)
3. Driveshaft(s) slipping and/or broken
4. Outdrive cups slipping
5. Clutch not engaging
6. Carburretor set too rich
1. One or more shocks sticking
2. Bent shock shaft
3. Bent or otherwise damaged hinge pin
1. Shock seals worn
2. Bent shock shaft
Shift point not adjusted properly
Shift point not adjusted properly
Vibration under normal use
Servo saver spring is set too loose
www.carson-modelsport.de
Solution
Readjust trim to center both wheels (p 9)
Readjust toe angle (p 22)
Remove wheel and clean bearing. Replace if
necessary
Readjust brake linkage (p 21)
Replace affected brake disc(s)
Replace clutch shoes
Replace clutch bell
Remove glaze using fine sandpaper and
reinstall
Replace clutch springs
Replace spur gear(s)
Replace differential gear(s)
Tighten grub screw and/or replace drive
shaft(s)
Tighten grub screw in outdrive cups
Check clutch assembly and repair or replace
Lean high speed needle valve (p 17)
Clean and/or rebuild the affected shock
Rebuild affected shock
Replace hinge pin
Replace shock seals
Rebuild affected shock
Readjust shift point to shift at a higher speed
(p 24)
Readjust shift point to shift at a lower speed
(p 24)
Clean screw(s) and/or replace and use Blue
Lock-Tite to secure them into place
Tighten servo saver spring – see below

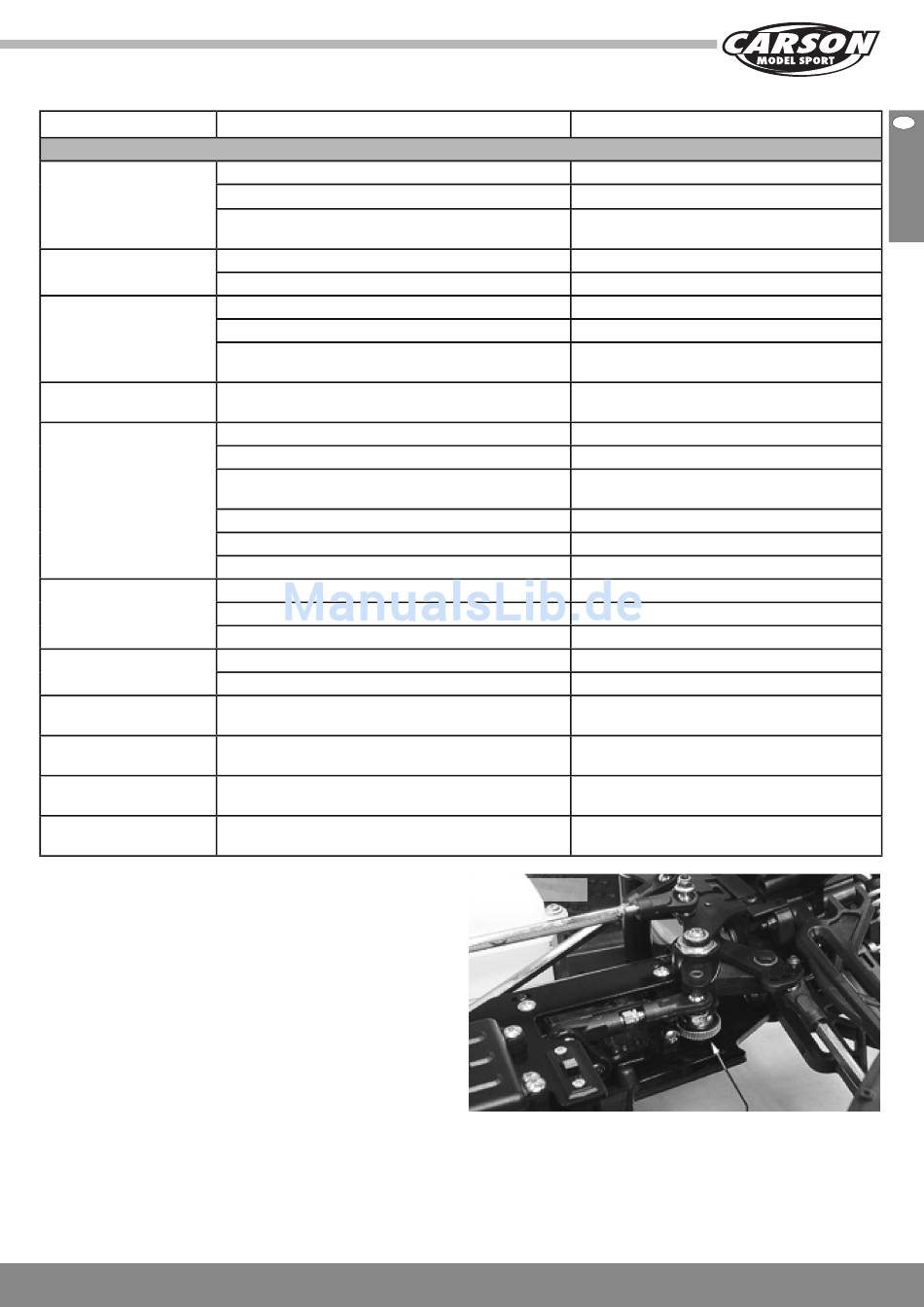

Picture 37
