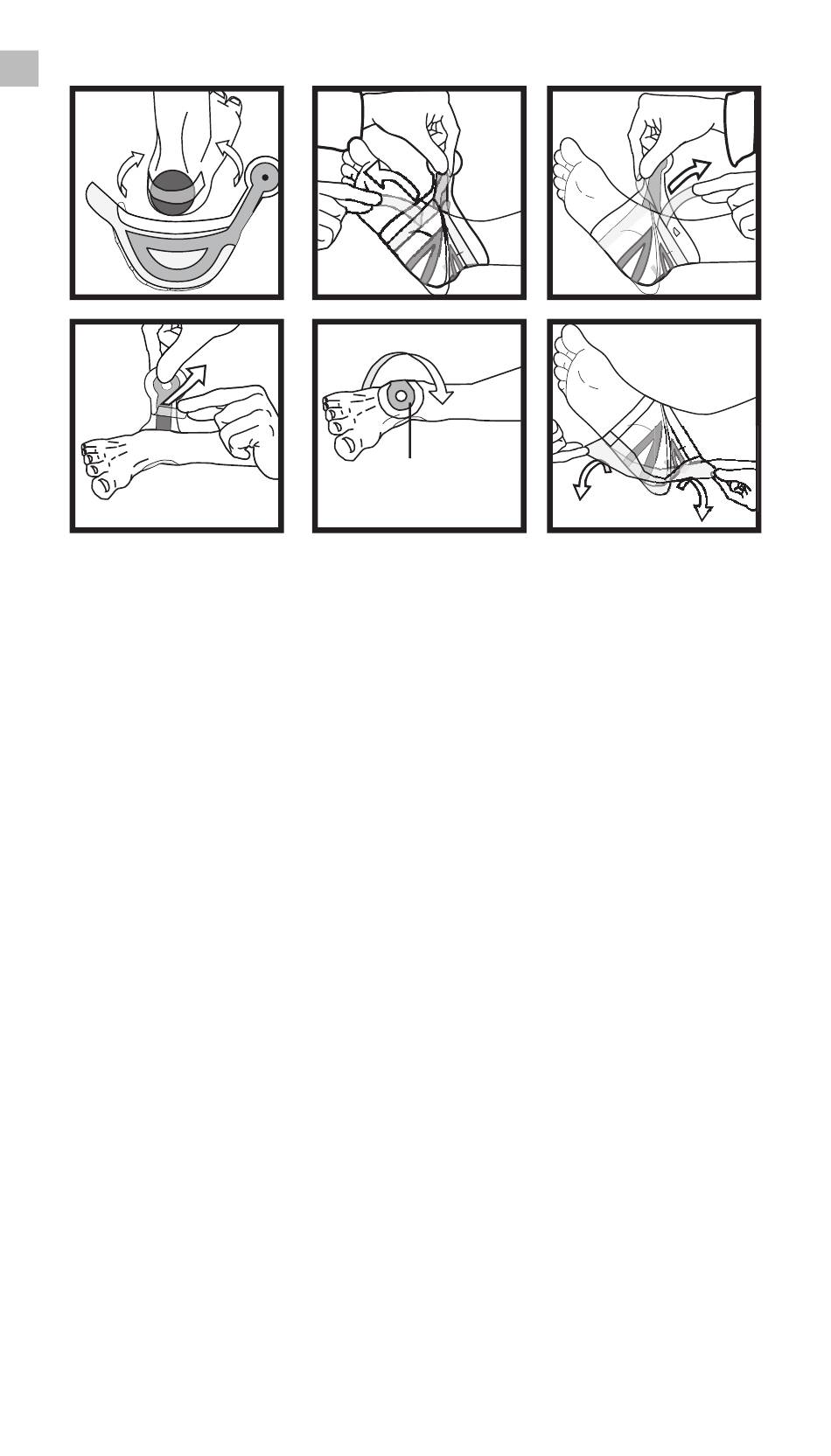

V.A.C. GrANufoAm™ HEEL drESSING AppLICATIoN
®
fig. 7
fig. 10
1. Place the heel into the V.A.C.
2. Smooth down the dressing edge at the bottom of the foot while removing the liner
strip from the bottom of the dressing (fig. 8).
3. Smooth down the dressing edge at the back of the heel while removing the liner strip from
the back of the dressing (fig. 9).
4. Remove the liner strip from the SensaT.R.A.C.™ / T.R.A.C.™ Pad Bridge (fig. 10) and smooth
down onto the top of the foot (fig. 11).
5. Remove protective film from outside of V.A.C.
fig. 8
fig. 11
SensaT.R.A.C.™ /
T.R.A.C.™ Bridge
GranuFoam™ Heel Dressing (fig. 7).
®
GranuFoam™ Heel Dressing (fig. 12).
®
16
fig. 9
fig. 12
