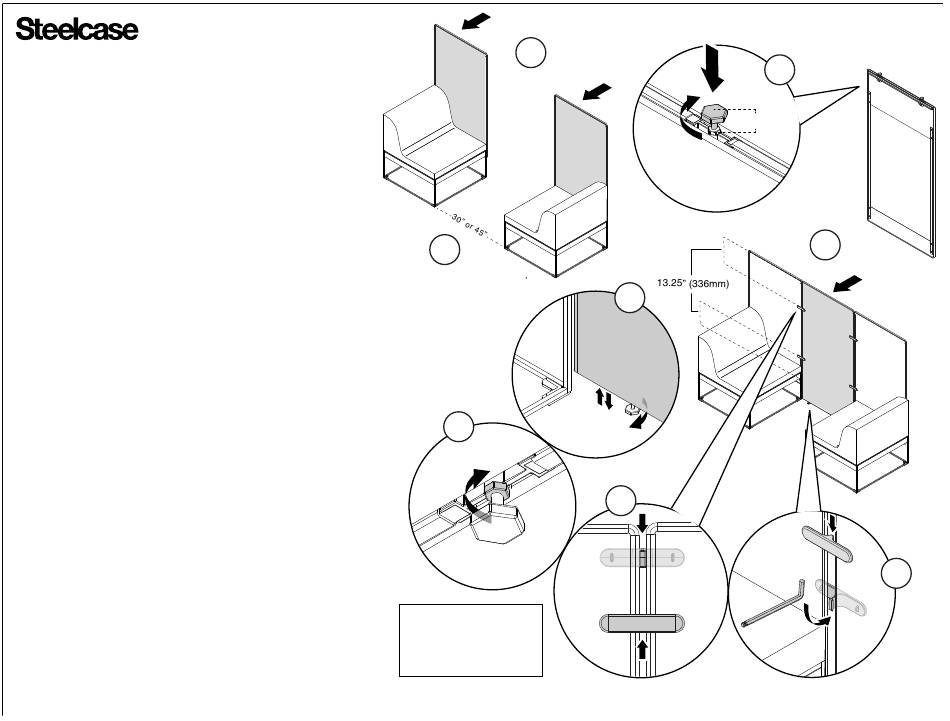

Pillow Spanner Screen Installation
1.
Install the two (2) standard screen on desired units
(see Fascia Removal and Screen Installation Instructions
on pages 6 & 9-10).
2.
Position the two (2) units 30" or 45" apart depending
on width of the Spanner Screen to be installed.
3.
Locate glide receptors in the bottom of the Spanner
Screen. Install glides into receptors with a height of
approximately 1" between bottom of screen and bottom
of the glide.
4.
Stand Spanner Screen up between the two (2) units
with the other screens already installed.
5.
Adjust the glides so that the Spanner Screen is in line
with the side screens.
6.
Tighten the lock nut on the glides against the bottom of
the Spanner Screen to lock them in position.
7.
Install two top screen connector clips on each side of
Spanner Screen to the unit screens.
8.
Install two bottom screen connector clips on each side of
Spanner Screen to the unit screens.
Note: Use allen wrench to assist with assembly.
9.
Adjust the location of the side lounge units to ensure
the Spanner Screen is held tight and in line with the units.
1
2
6
NOTE: Put male clip
on outside of screen
and female clip on the
inside.
3
1"
5
7
4
8
Page 17 of 187
96655 Rev E
