Spanner Screen Installation

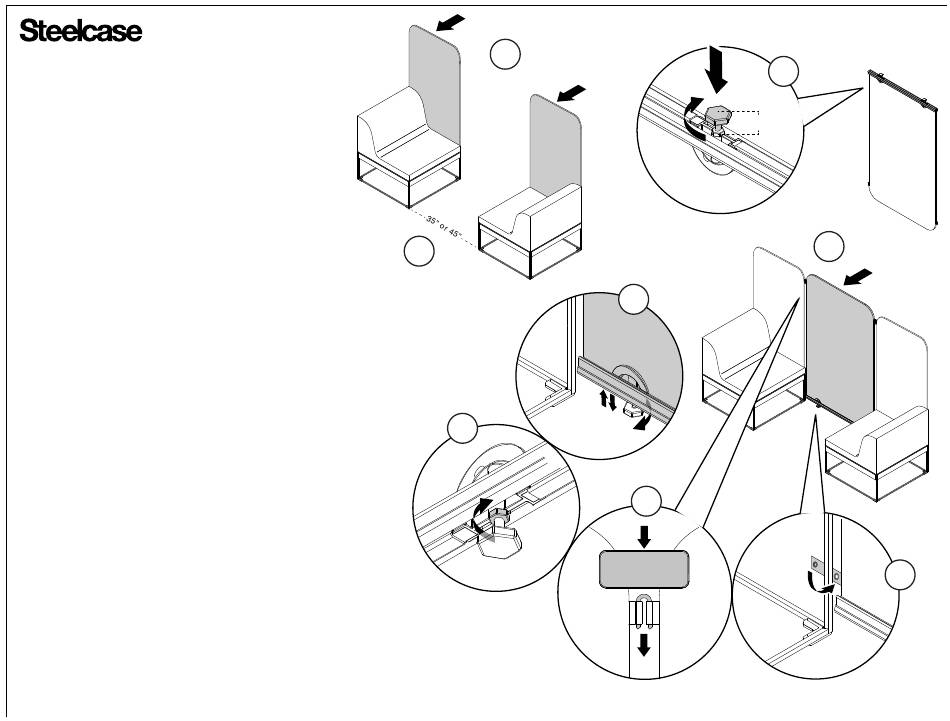

1.
Install the two (2) standard screen on desired units
(see Fascia Removal and Screen Installation Instructions
on pages 6 & 9-10).
2.
Position the two (2) units 30" or 45" apart depending
on width of the Spanner Screen to be installed.
3.
Locate glide receptors in the bottom of the Spanner
Screen. Install glides into receptors with a height of
approximately 1" between bottom of screen and bottom
of the glide.
4.
Stand Spanner Screen up between the two (2) units
with the other screens already installed.
5.
Adjust the glides so that the Spanner Screen is in line
with the side screens.
6.
Tighten the lock nut on the glides against the bottom of
the Spanner Screen to lock them in position.
7.
Install screen connector clip(s) on each side of Spanner
Screen to the unit screens. (2x - short screens, 4x - tall screens).
8.
Position bottom of Spanner Screen next to the legs of the
lounge units, then wrap and snap the connector straps to
the legs (4x).
9.
Adjust the location of the side lounge units to ensure
the Spanner Screen is held tight and in line with the units.
1
2
6
1"
5
7
2x
or
4x
3
4
4x
8
