5.2 Hoses and adapters for 2000 bar
Depending on the test type, connecting thread and installation situation, pre-assemble the blue
hose with the corresponding connecting pipe, nut and pressure ring (left-handed thread).
Use of 45° and 90° connecting pipes

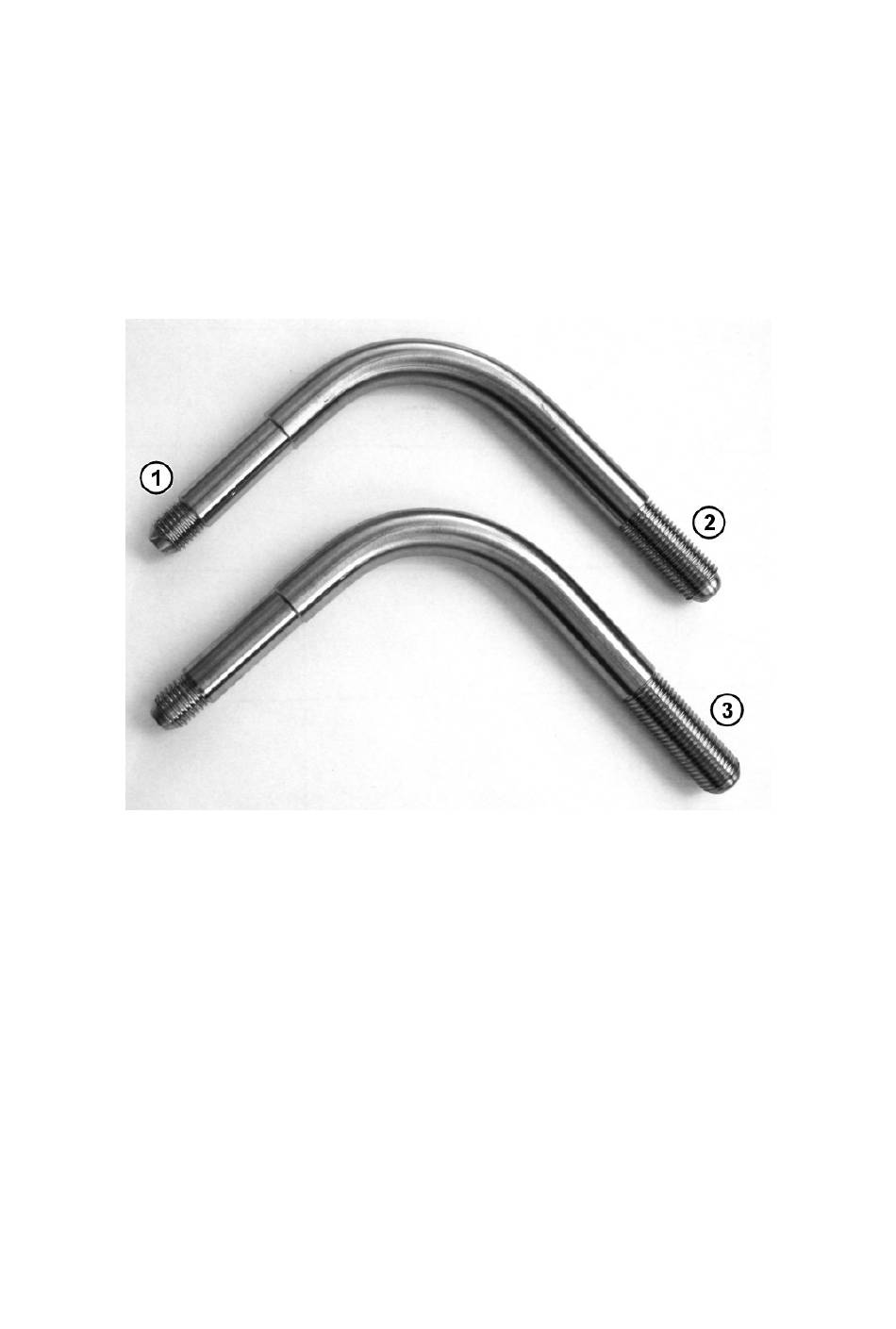

Example for 90° connecting pipe
1 = Connection side for rail type A
2 = Connection side for rail type B with high-pressure line Ø 6 mm
3 = Connection side for rail type B with high-pressure line Ø 8 and 9 mm
