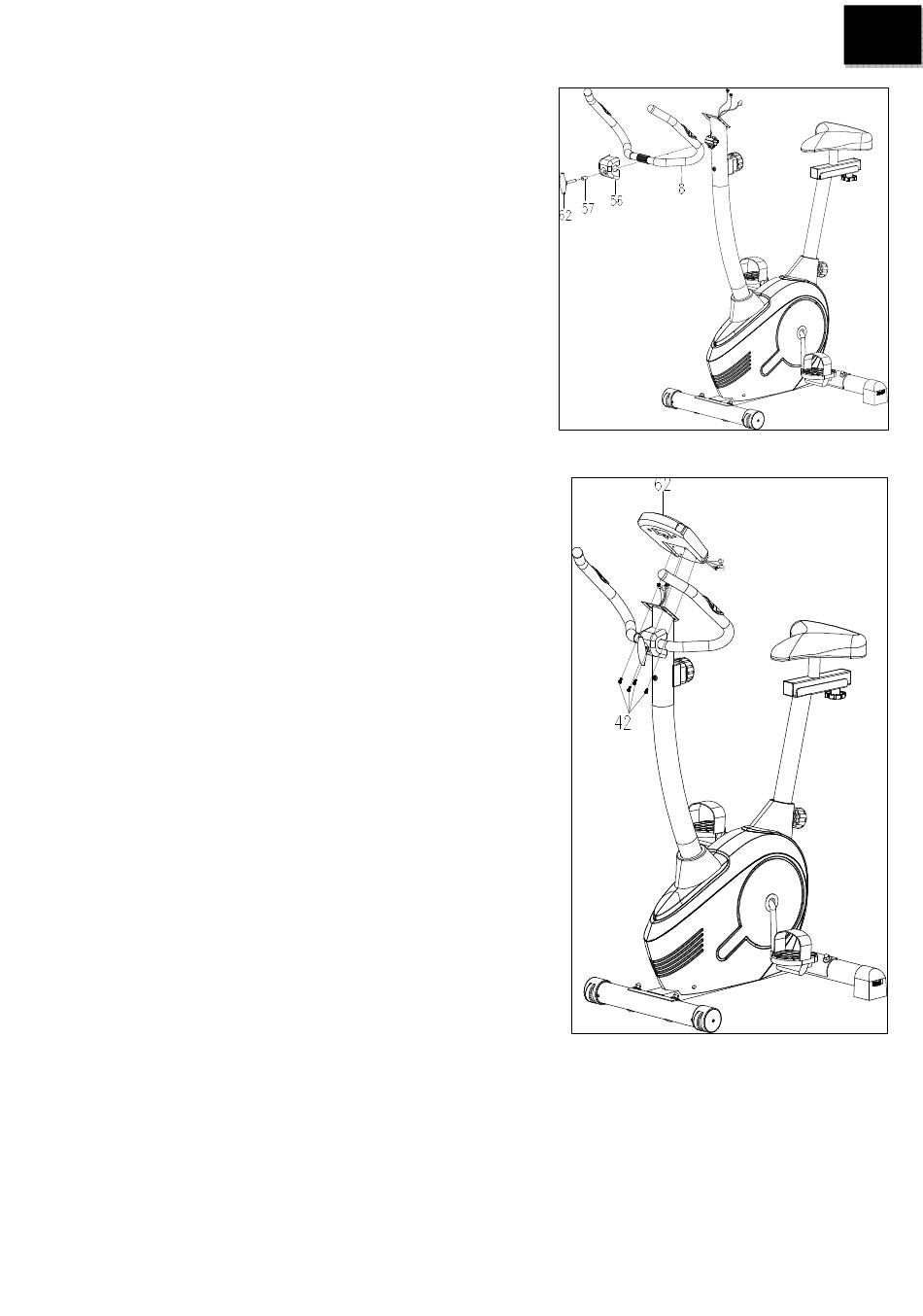

4. Handlebar Installation, Computer
Insert the Hand Pulse Sensor Wires (49) into the hole on the
Handlebar Post (7) and then pull them out from the top end of the
Handlebar Post (7). Place the Handlebar (8) through clamp on the
Handlebar Post (7) with hand pulse sensors facing the seat.
Hold the Handlebar (8) in desired position and fasten Clamp
Cover (56), Ø12x20x1.5 Spacer (57), and Handlebar T-Knob (62)
onto clamp. Tighten the Handlebar T-Knob (62) after adjustment.
NOTE: Handlebar T-Knob should be tightly secured before
using.
5. Computer Installation
Remove four M5x10 Bolts (42) from the Computer (62). Remove
bolts with the Multi Hex Tool with Phillips Screwdriver provided.
Connect the Hand Pulse Sensor Wires (49) and Extension Sensor
Wire (63) to the wires that come from the Computer (62). Tuck
wires into the Handlebar Post (7). Attach the Computer (62) onto
the top end of the Handlebar Post (7) with four M5x10 Bolts (42)
that were removed. Tighten bolts with the Multi Hex Tool with
Phillips Screwdriver provided.
