2. Seat Post, Seat Post Cover, Seat Cushion, and Seat Sliding Tube
Installation
Slide the Seat Post Cover (59) onto the tube of the Main Frame (1).
Insert the Seat Post (5) into the Seat Post Bushing (53) on the tube of
the Main Frame (1) and then attach the Seat Post Knob (48) onto the
tube of the Main Frame (1) by turning it in a clockwise direction with
Multi Hex Tool provided to lock the Seat Post (5) in the suitable
position. Remove three M8 Nylon Nuts (27) and three Ø16xØ8x1.5
Washers (10) from underside of the Seat Cushion (61). Remove
nylon nuts and washers with the Multi Hex Tool with Phillips
Screwdriver provided. Guide bolts on underside of the Seat Cushion
(61) through holes on top of the Seat Sliding Tube (6), attach with
three removed M8 Nylon Nuts (27) and Ø16xØ8x1.5 Washers (10).
Tighten nylon nuts and washers with the Multi Hex Tool with Phillips
Screwdriver provided.
Guide the Seat Sliding Tube Bolt on underside of the Seat Sliding
Tube (6) through hole on top of the Seat Post (5), attach with one
Ø10xØ20x2 Washer (10) and Seat Adjustment Knob (15).
3. Handlebar Post, Handlebar Post Cover, and Tension Control Knob Installation
Remove four M8x15 Bolts (19), four Ø20xØ8x2.0 Washers (14) from the
Main Frame (1). Remove bolts with the S6 Allen Wrench provided.
Slide the Handlebar Post Cover (58) up to the Handlebar Post (7).
Insert the Tension Cable (55) through into the bottom hole of Handlebar
Post (7) and pull it out from the square hole of Handlebar Post (7).
Connect the Sensor Wire (50) from the Main Frame (1) to the Extension
Sensor Wire (63) from the Handlebar Post (7). Insert the Handlebar Post
(7) onto the tube of the Main Frame (1) and secure with four M8x15
Bolts (19), four Ø20xØ8x2.0 Washers (14) that were removed. Tighten
bolts with the S6 Allen Wrench provided. Slide the Handlebar Post
Cover (58) down to the Handlebar Post (7).
Remove the M5x45 Bolt (40) and Ø5 Big Washer (41) from the Tension
Control Knob (54). Remove bolt with the Multi Hex Tool with Phillips
Screwdriver provided. Put the cable end of resistance cable of Tension
Control Knob (54) into the spring hook of Tension Cable (55) as shown

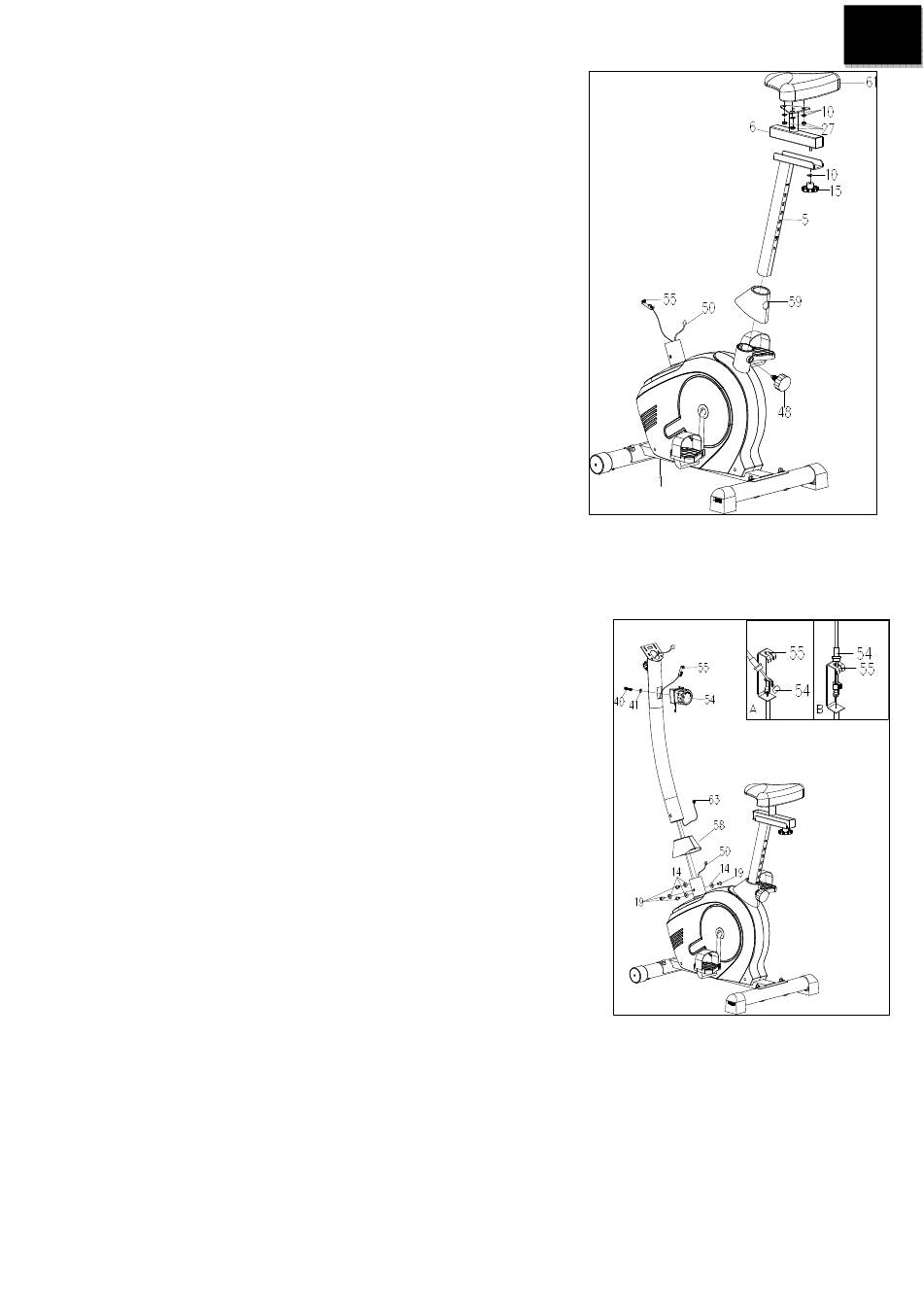

in drawing A of figure 3. Pull the resistance cable of Tension Control
Knob (54) up and force it into the gap of metal bracket of Tension Cable
(55) as shown in drawing B of figure 3. Attach the Tension Control Knob (54) onto the Handlebar Post (7)
with the M5x45 Bolt (40) and Ø5 Big Washer (41) that were removed. Tighten bolt with the Multi Hex Tool
with Phillips Screwdriver provided.
