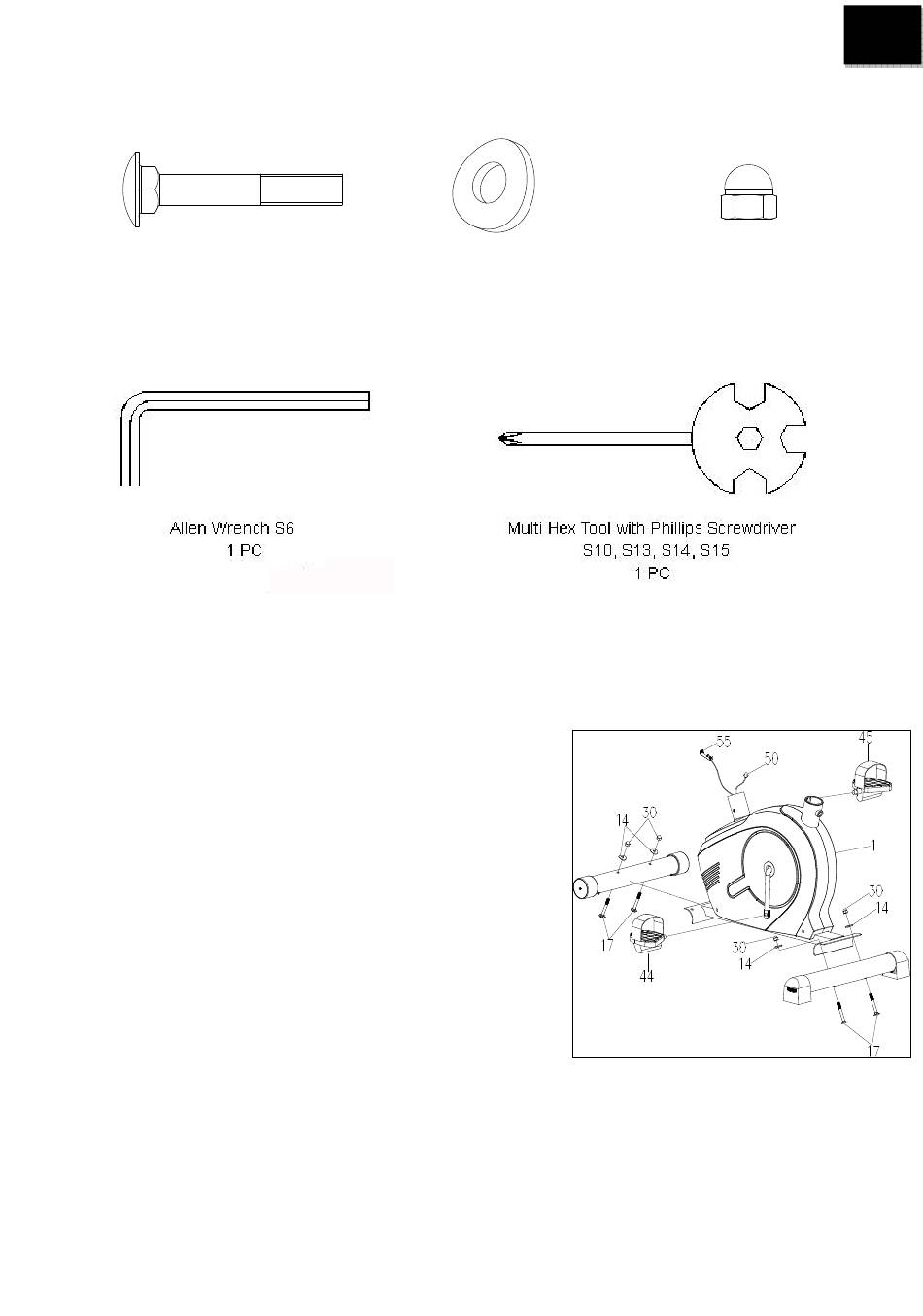

2. Assembly Pack Check List
(17) Bolt M8x70 (14) Big Curve Washer Ø8 (30) Cap Nut M8
4 PCS 4 PCS 4 PCS
3. Assembly
1. Front and Rear Stabilizers Installation
Position the Front Stabilizer (2) in front of the Main Frame (1) and
align bolt holes. Attach the Front Stabilizer (2) onto the front curve
of the Main Frame (1) with two M8x70 Bolts (17), two Ø8 Big
Curve Washers (14), and two M8 Cap Nuts (30). Position the Rear
Stabilizer (3) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (3) onto the rear curve of the Main Frame
(1) with two M8x70 Bolts (17), two Ø8 Big Curve Washers (14),
and two M8 Cap Nuts (30).
Foot Pedals Installation
The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are
marked "R" for Right and "L" for Left.
Insert the pedal shaft of Left Foot Pedal (44) into threaded hole in
the left Crank (39). Turn the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the threads.
Screwdriver provided Insert pedal shaft of Right Foot Pedal (45) into threaded hole in right Crank (39). Turn
the pedal shaft by hand in the clockwise direction until snug.
