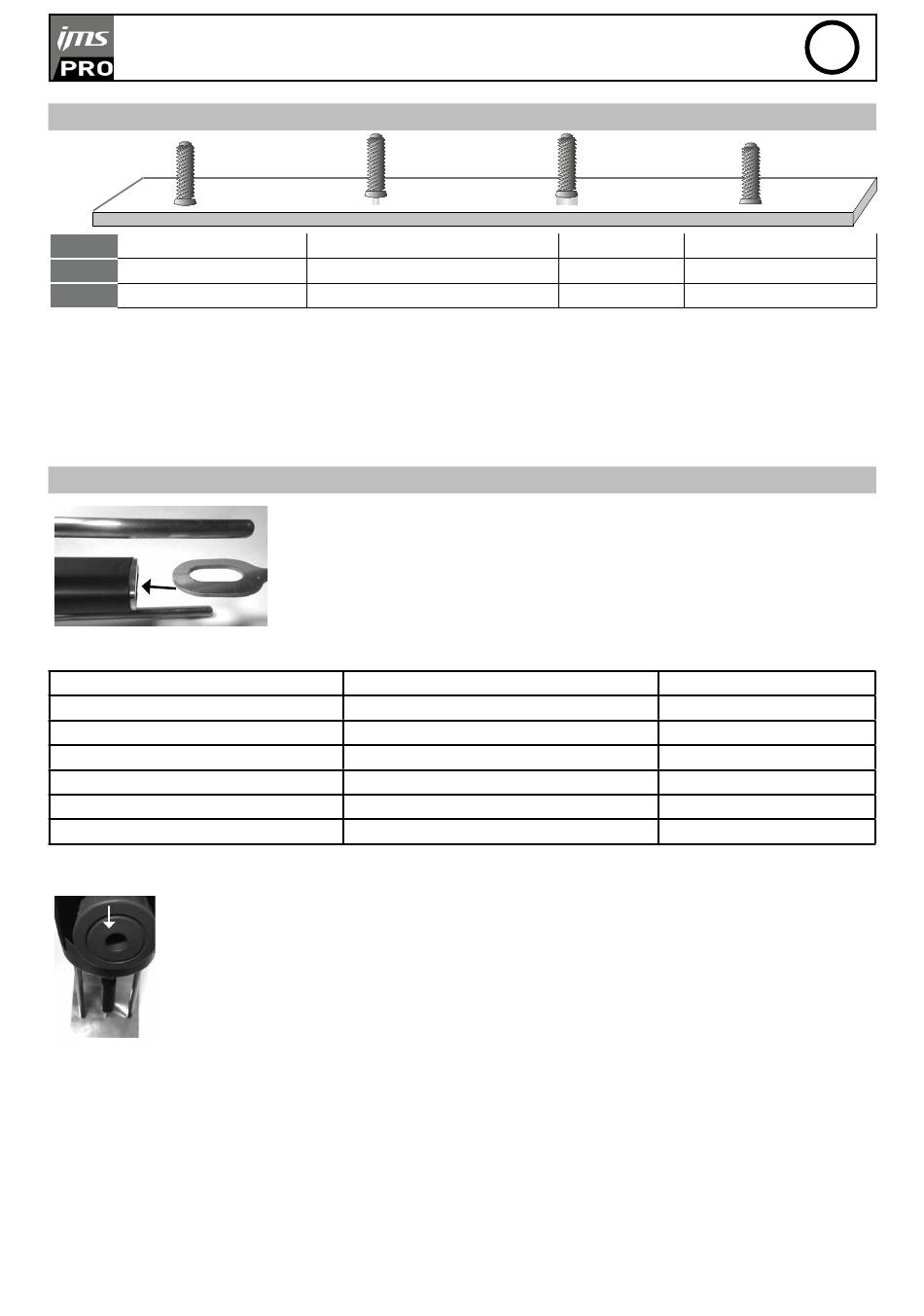

PROCESS OF WELDING RINGS AND STUDS USING PULLED ARC
Phase Arcing
T (ms)
I (A)
≈80-150A
* Arc current is limited to 100A when the product is connected to a 110Vac 50Hz/60Hz power supply.
Start : the electrode is in short-circuit. Pressing the trigger starts the welding process and creates an electric arc.
Cleaning phase : the low intensity electric arc cleans the metal sheet. The heat generated by the arc removes impurities
(grease, oils, protection zing, etc.) from the sheet.
The arc : the arc current creates a weld pool on the support sheet and melts the extremity of the electrode.
Attachment : the electrode.
WELDING OF RING AND THREADED STUD
Check the polarity of the gun dinse cables:
Materials
Steel
Galvanised
Zinc-plated
Aluminium
Aluminium Magnesium Silicium
Aluminium Magnesium
• Modify the welding settings if necessary (synergic mode or manual mode).
Molette de vérouillage des
• Unlock the earth rods using the scrollwheel.
tiges de reprise de masse :
• Position the gun on the sheet.
• Create contact between the electrode and the sheet (ring or threaded stud). As soon as the
gun creates a «beep» or that the LED contact (blue) is switched on, lock the earth rods using the
scrollwheel.
• Press the trigger.
• Once the welding is complete, raise the gun to release the electrode (ring or threaded stud).
• Welding rings must be done using either new rings or rings sharpened using an appropriate tool
(JBDC tool 056763 for steel rings).
• Clean and remove grease from the welding zone.
Note 1 : Welding rings must be done using either new rings or rings sharpened using an appropriate tool (JBDC tool
056763 for steel rings).
Note 2 : Clean and remove grease from the welding zone.
IMS SPOT ARCPULL 200
Penetration and cleaning
0 à 200
10 à 60A
• Mount the electrode holder on the gun (ring-holder or threaded stud-holder)
• Position an electrode (ring or threaded stud) on the tool side of the gun
Connection of the positive cable (red) Negative dinse cable
Steel dinse connector (Fe+)
Steel dinse connector (Fe+)
Steel dinse connector (Fe+)
Alu dinse connector (Al-)
Alu dinse connector (Al-)
Alu dinse connector (Al-)
Arc Attachment
10 à 500 0 à 50ms
0 à 200A* ≈80-150A
Alu dinse connector (Al-)
Alu dinse connector (Al-)
Alu dinse connector (Al-)
Steel dinse connector (Fe+)
Steel dinse connector (Fe+)
Steel dinse connector (Fe+)
