1-3 SAFETY PROTECTIONS

The STEFF Feed units are equipped
with special devices which make work
safe:
1) A protection side door prevents ac-
cidental access to internal moving
parts.
2) Two semiflexible brushes prevent
the operator's hand from being ac-
cidentally inserted.
3) Accurate design of the support
avoids all danger of splitting up of
the different parts, even in case of
incorrect tightening by the operator.
1-4 TRANSPORT - OVERALL DI-
MENSIONS
The STEFF Feed unit are packed in two
separate boxes in order to facilitate
their transport. It is advisable to keep
the packing material for subsequent
transport requirements.
Package
Feed unit 2034
Feed unit 2034CI
Feed unit 2044
Feed unit 2038
Feed unit 2038CI
Feed unit 2048
Feed unit 2068
Standard cross-shaped
support
Long cross-shaped
support

1-5 SETUP REQUIREMENTS

We can only guarantee the problem-
free, long-lasting functionality and pre-
cision of your machine and safe opera-
tion if the following requirements on the
setup area are fulfilled.
- The machine must stand in a dry,
enclosed room with temperatures
between +10°C and +40°C.
- There must be sufficient room
around the machine so the opera-
tor cannot be squeezed between the
machine and a wall when any move-
able parts are extended.
- The power cable must be laid so the
operator cannot trip over it.
Weight

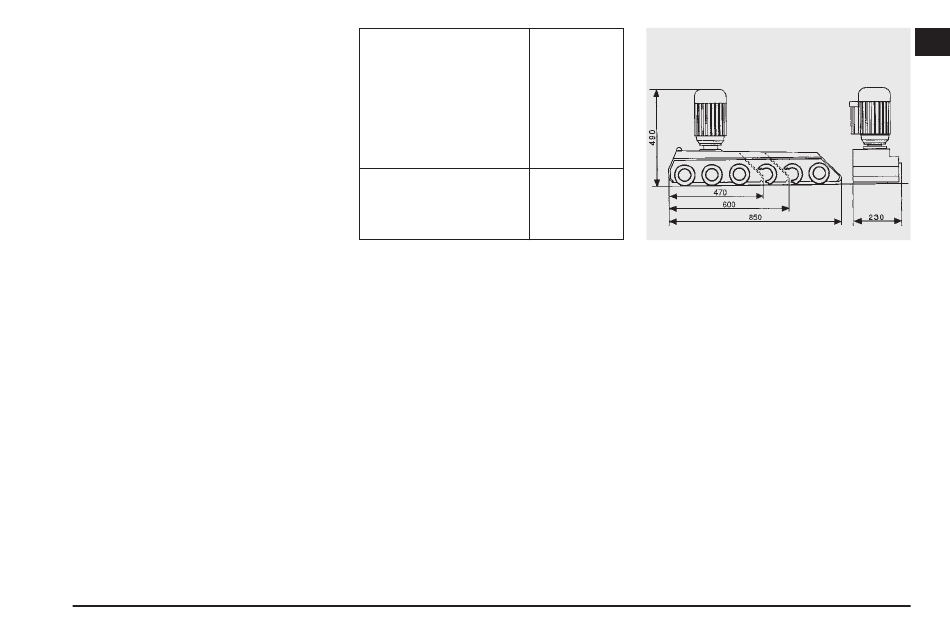

Dimensions of Feed unit
28 kg
28 kg
31 kg
29 kg
29 kg
32 kg
40 kg
34.5 kg
36.85 kg
- The machine must be connected to
a stable current supply with max.
deviations of ±10% in the rated volt-
age.
- The machine ground wire must be
connected to the system ground
wire.
