6.4 Electrical components

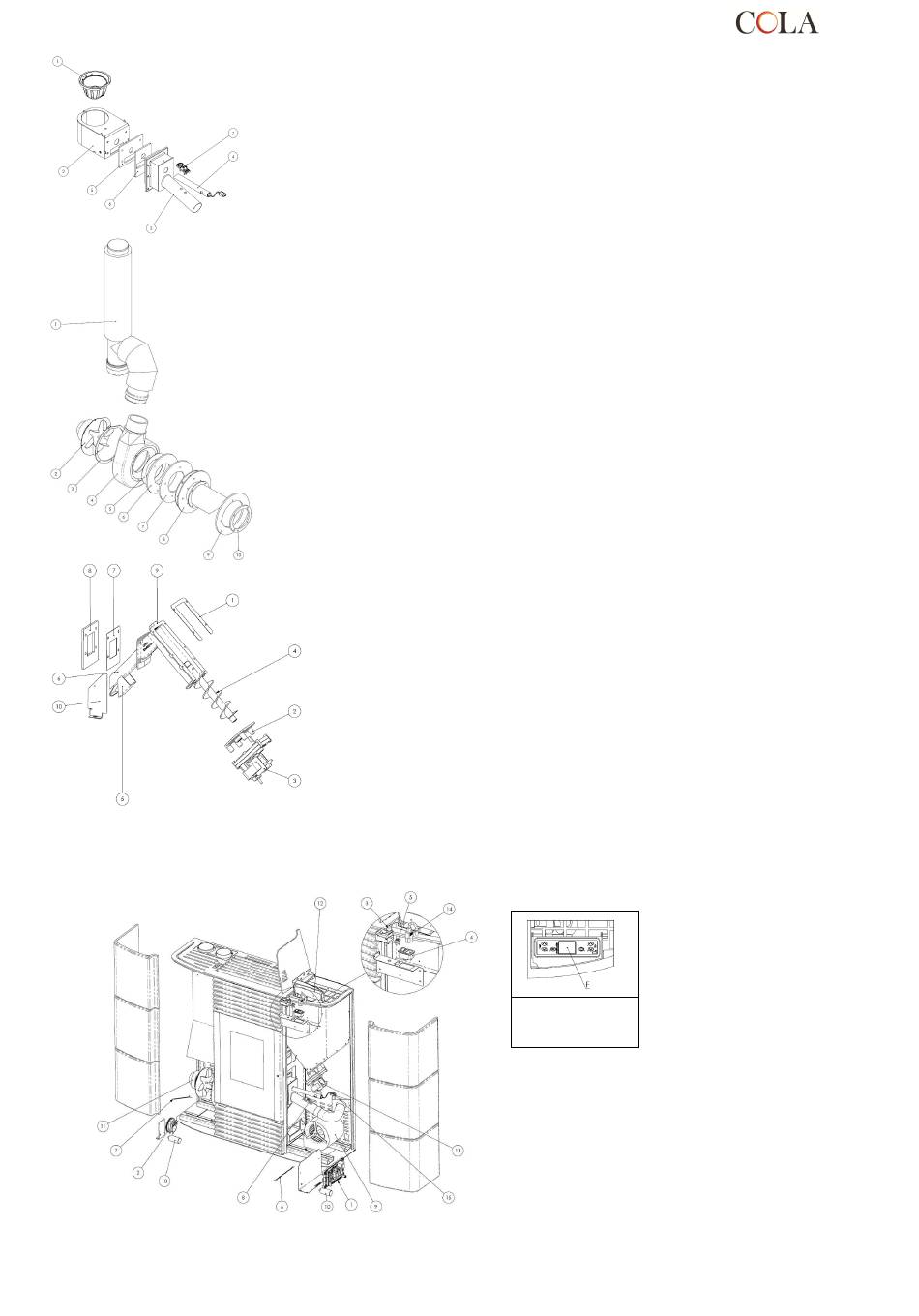

Exploded views of:
1 - Brazier assembly
2 - Fume extractor assembly
3 - Auger assembly
Key:
1 - Brazier
2 - Brazier holder
3 - Combustion air inlet pipe assembly
4 - Electrical element
5 - Brazier holder rear seal
6 - Suction unit front seal
7 - Air flow meter
Key:
1 - Fume extraction pipe
2 - Fume extractor
3 - Fume extractor -.conveyor seal
4 - Fume extraction volute
5 - Fume extraction volute plate
6 - Flange-conveyor seal
7 - Sprint fume extractor seal
8 - Fume extraction flanged pipe assembly
9 - Fume extraction external flange seal
10 - Fume extraction internal flange seal
Key:
1 - Conveyor - hopper seal
2 - Gearmotor support flange
3 - Gearmotor
4 - Auger
5 - Seal for chute
6 - Pellet chute
7 - Seal protection plate
8 - Conveyor chamber seal
9 - Pellet conveyor
10 - Chute bracket
Control panel
model F047
66
Key:
1 - Electronic board
2 - Control and safety vacuum switch
3 - Safety thermostat
4 - ON/OFF switch with fuses
5 - Serial connection port
6 - Room probe
7 - Fume probe
8 - Air flow meter
9 - Centrifugal fan
10 - Condensers
11 - Fume extractor
12 - Control panel model F047
13 - Auger control gearmotor
14 - Electrical connection cable
15 - Electrical element
