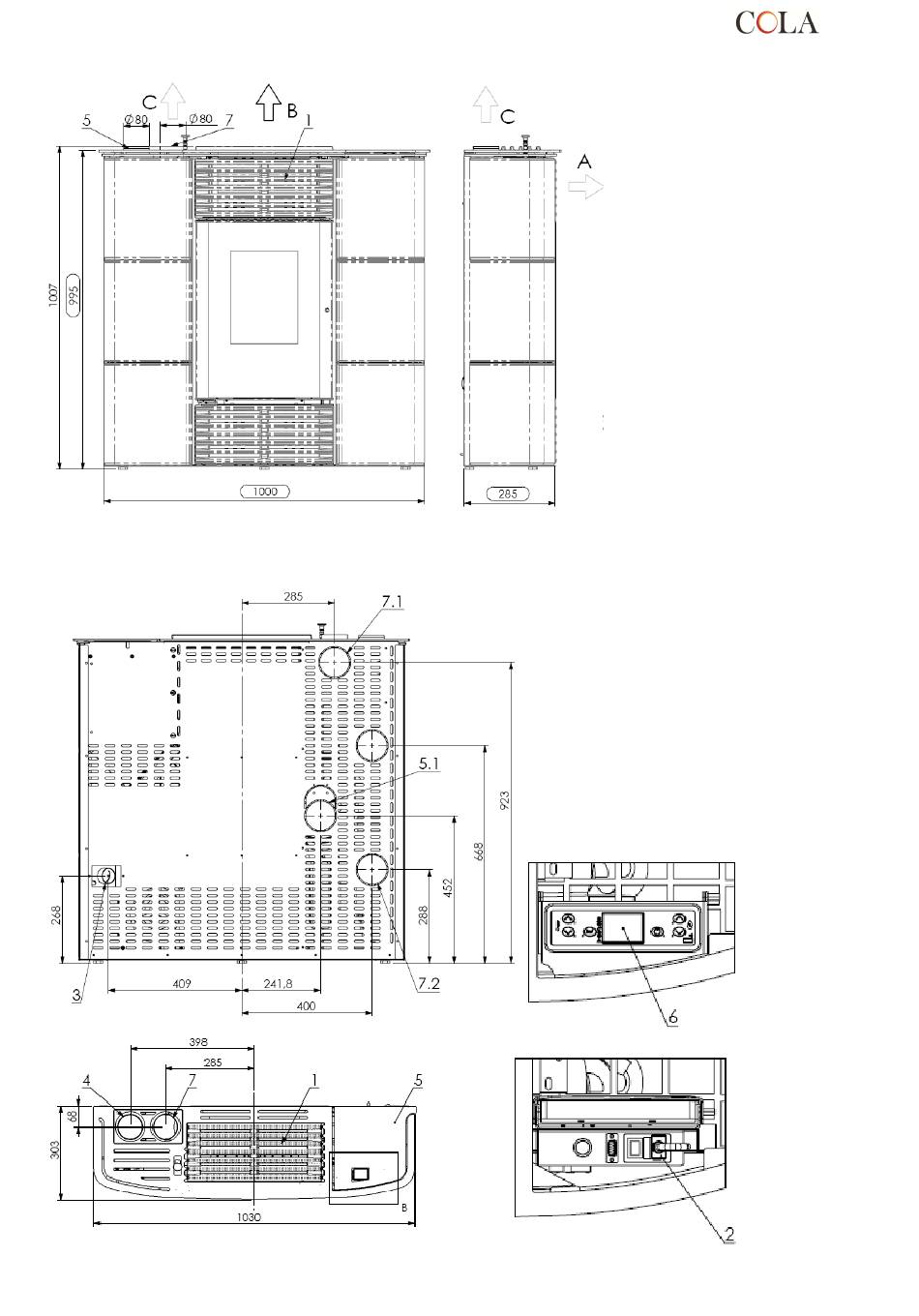

SPRINT pellet stove dimensions
Key:
1 - Air grilles
2 - Power cable connection
3 - Combustion air inlet Ø 50 mm
4 - Flue pipe standard connection Ø 80 mm
4.1-Arrangement for rear fume outlet
5 - Pellet hopper door
6 - Control panel model F047
7 - Ducted air upper outlet connection Ø 80 mm
7.1-Arrangement for Ø 80 mm rear ducting outlet,
high position
7.2- Arrangement for Ø 80 mm rear ducting outlet,
low position
