2.7 Electrical connection

Connect one end of the power cable to the stove socket located on
the front inside the hopper, and the other to the wall socket.
The voltage supplied by the system must match that specified on the
stove dataplate and in the technical data section of this manual.
During stove idle periods it is advisable to remove the power cable.
- Make sure the electrical system complies with the
regulations, and has an earth and differential switch in
conformity with the current Standards.
- The power cable must never touch the exhaust pipe
and the hot parts of the stove.

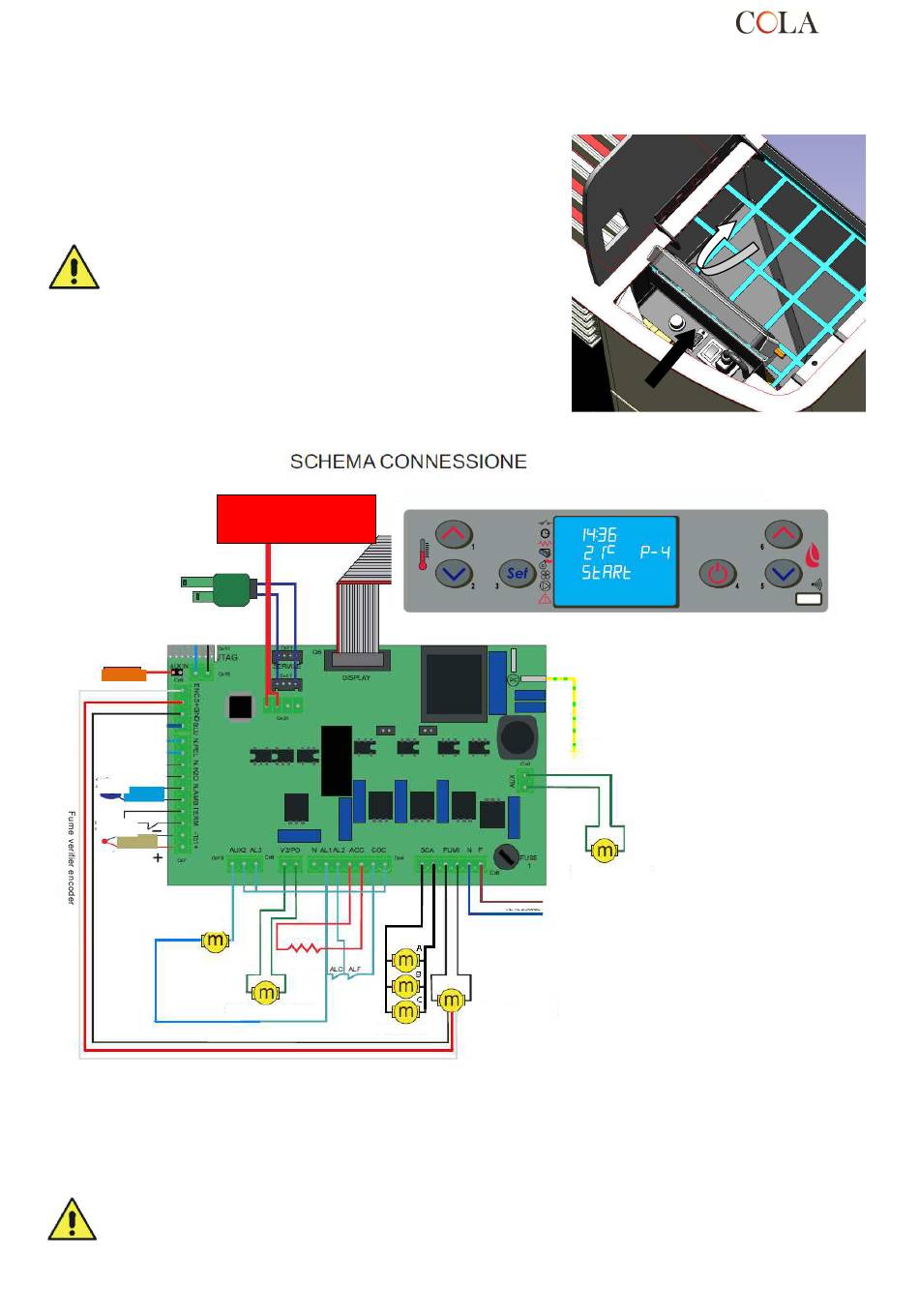

2.8 Wiring diagram

AIR FLOW METER
INPUTS
NTC
probe
room
probe
suppl.
thermostat
fume
probe
AUGER
2.9 Emergency
Suitable fire-prevention devices should be arranged for any eventuality.
In case of a fire, proceed as follows:
- Immediately disconnect the plug.
- Extinguish the fire using suitable fire-extinguishers.
- Call the fire department immediately.
- Do not use jets of waters to extinguish the fire.
PLC additional
accessories and console
IGNITER
EXCHANGER 2
EXCHANGER 1
Fume verifier encoder
EARTH
EXCHANGER 3
SYSTEM
ALF = main safety thermostat
ALC = low pressure gauge
FUME EXTRACTION
FAN
