How to Connect the Open-Collector Inputs of the
Controller

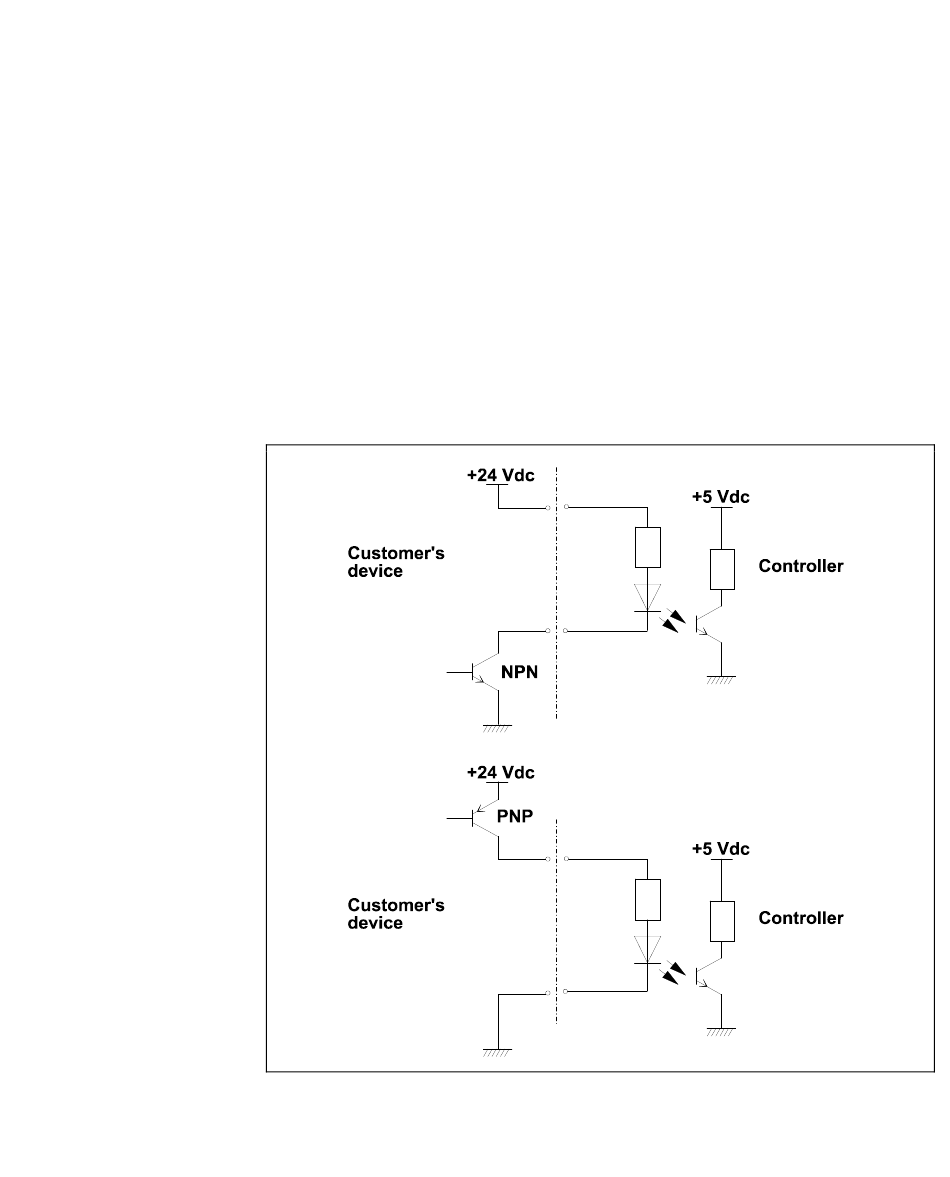

Here below there are the typical connections of the open collector
input of the integrated controller to an external system.
Two cases are considered:
1
2
Please note that on the connector a 24 Vdc, 60 mA voltage, a
GROUND signal and the open collector pin are available.
Figure 50
Turbo-V 750/850 TwisTorr User Manual / 87-901-020-01
the customer supplies the 24 Vdc
the customer does not supply the 24 Vdc
Case 1
Technical Information
Stop Speed Reading
(A)
