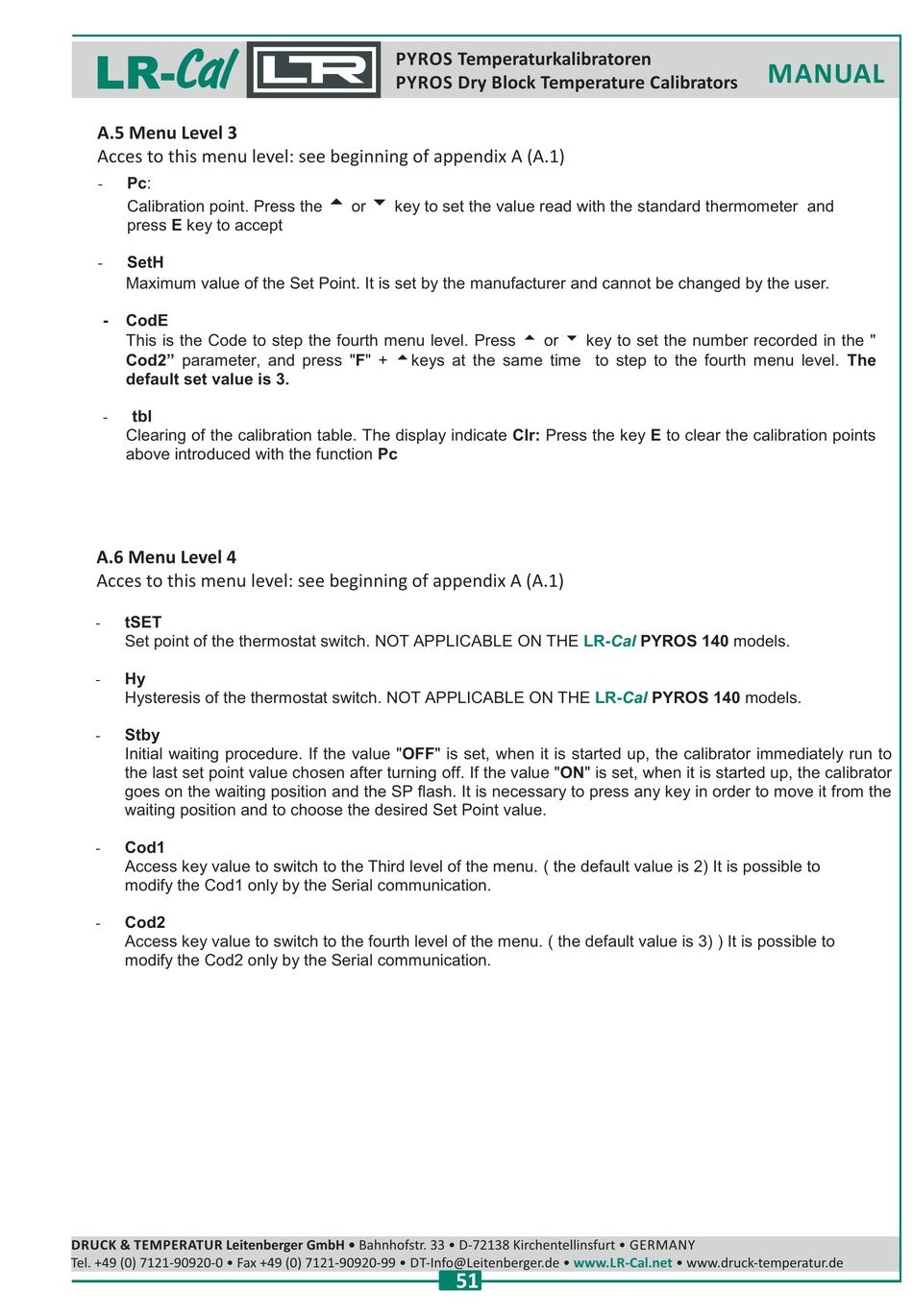

A.5 Menu Level 3
Acces to this menu level: see beginning of appendix A (A.1)
Pc:
-
Calibration point. Press the
press E key to accept
- SetH
Maximum value of the Set Point. It is set by the manufacturer and cannot be changed by the user.
- CodE
This is the Code to step the fourth menu level. Press 5 or 6 key to set the number recorded in the "
Cod2" parameter, and press "F" + 5keys at the same time to step to the fourth menu level. The
default set value is 3.
tbl
-
Clearing of the calibration table. The display indicate Clr: Press the key E to clear the calibration points
above introduced with the function Pc
A.6 Menu Level 4
Acces to this menu level: see beginning of appendix A (A.1)
- tSET
Set point of the thermostat switch. NOT P
Hy
-
Hysteresis of the thermostat switch. NOT P
- Stby
Initial waiting procedure. If the value "OFF" is set, when it is started up, the calibrator immediately run to
the last set point value chosen after turning off. If the value "ON" is set, when it is started up, the calibrator
goes on the waiting position and the SP flash. It is necessary to press any key in order to move it from the
waiting position and to choose the desired Set Point value.
- Cod1
Access key value to switch to the Third level of the menu. ( the default value is 2) It is possible to
modify the Cod1 only by the Serial communication.
Cod2
-
Access key value to switch to the fourth level of the menu. ( the default value is 3) ) It is possible to
modify the Cod2 only by the Serial communication.
