Product and function descriptions,

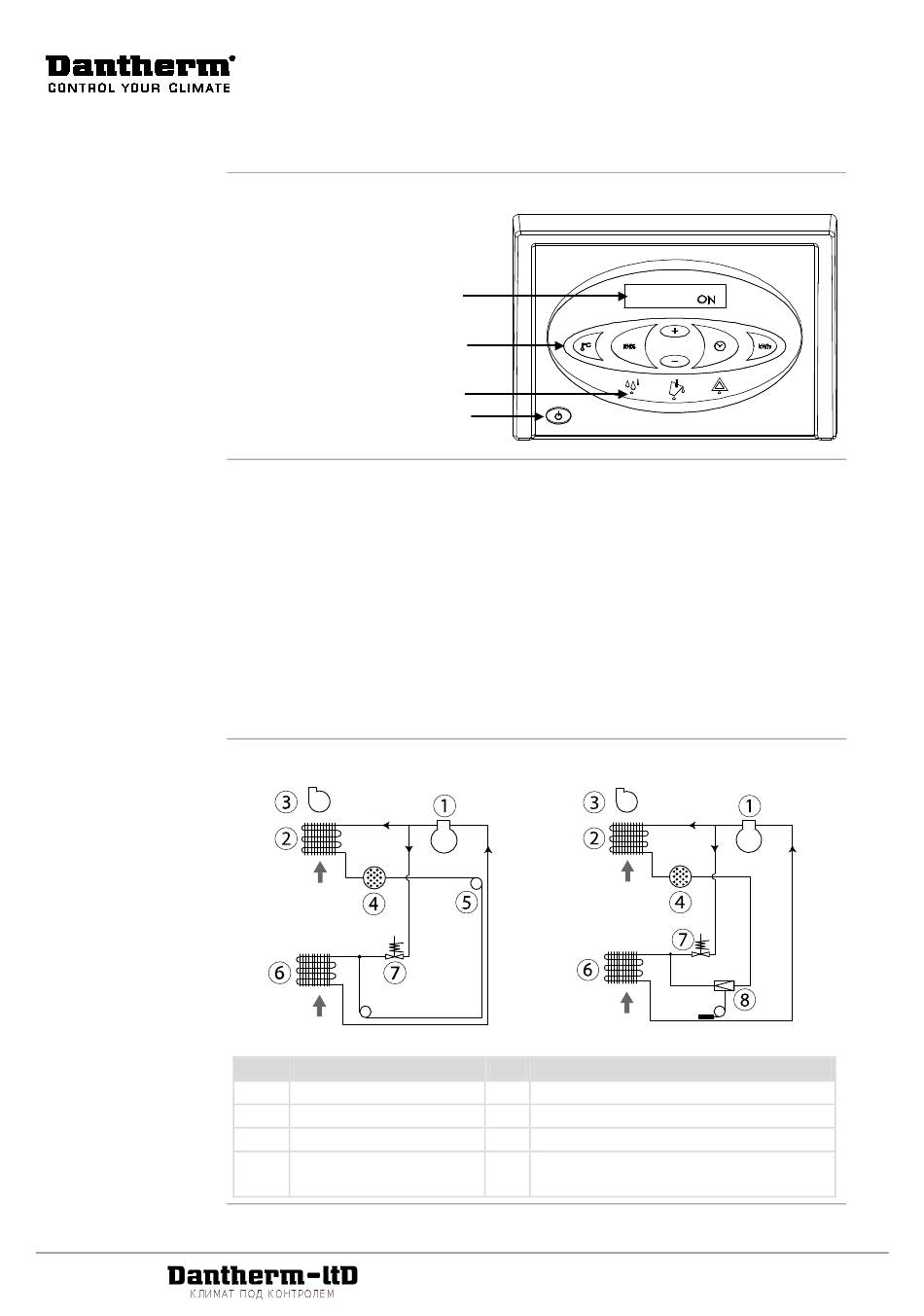

Control panel Illustration of control panel:
Functions Main functions:
Operation described in the user guide in this manual.
Cooling circuit
diagram
Pos.
4
Display
Function keys
Status indicators
Main switch
Manual or auto (built-in adjustable hygrostat).
•
External hygrostat socket.
•
Display of temperature, relative air humidity, hours and kWh consumption.
•
Hour counter and kWh consumed without 230V connection.
•
Adjustable service interval counter.
•
Supply of extra heat for higher dehumidification efficiency.
•
Targeted dehumidification, e.g. between floor decks.
•
CDT 30S MK II
Description
1 Compressor
2 Condenser
3 Fan
4 Dry filter
www.dantherm-ltd.ru • info@dantherm-ltd.ru • +7 (495) 545-48-79
Москва. Каширский проезд д. 19 стр. 2
cont.
Pos.
5 Capillary tube (CDT 30S only)
6 Evaporator
7 Solenoid
8 Thermostatic expansion valve
(not CDT30S)
CDT 40S MK II
Description
