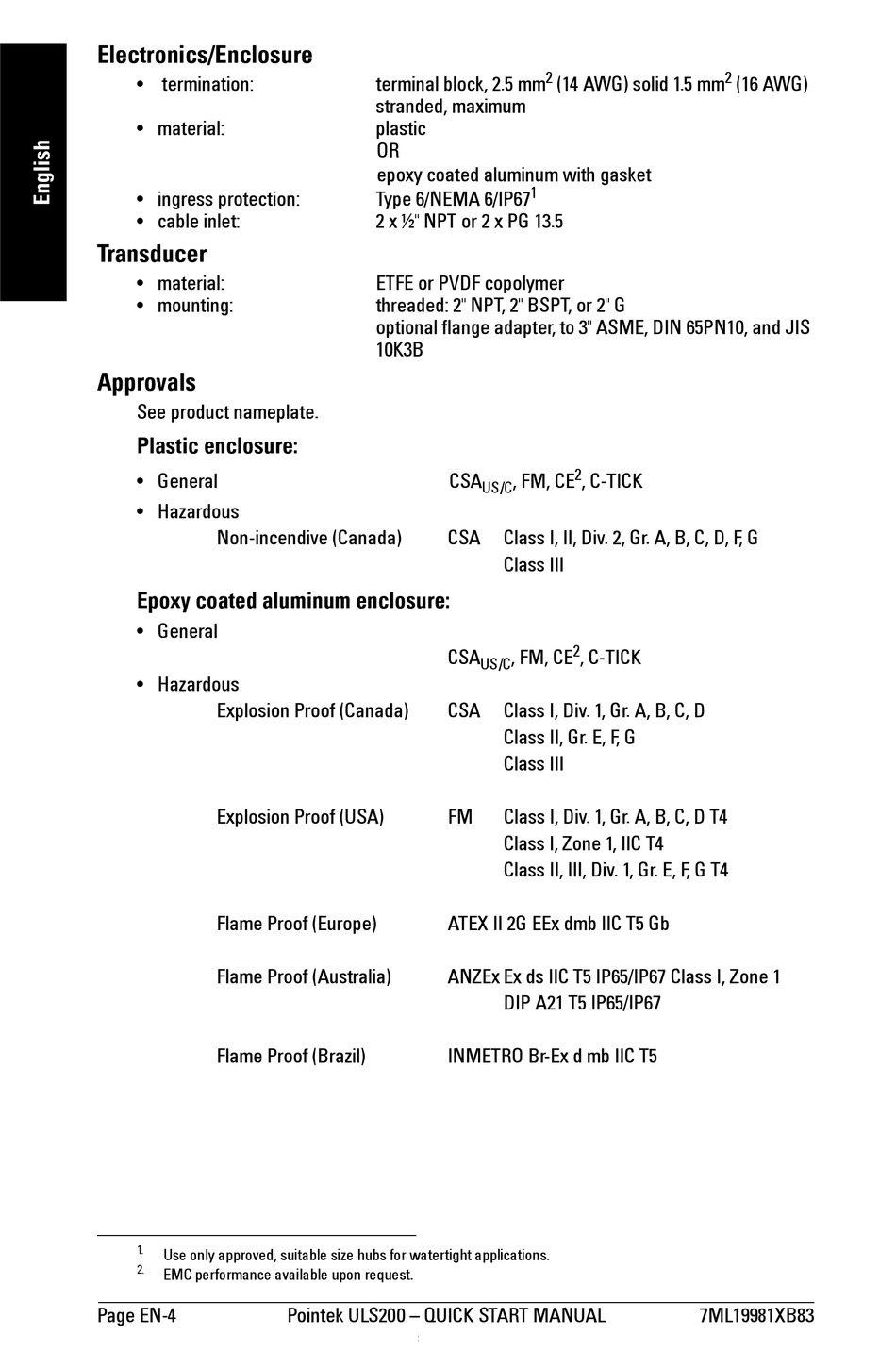

Electronics/Enclosure
• termination:
• material:
• ingress protection:
• cable inlet:
Transducer
• material:
• mounting:
Approvals
See product nameplate.
Plastic enclosure:
• General
• Hazardous
Non-incendive (Canada)
Epoxy coated aluminum enclosure:
• General
• Hazardous
Explosion Proof (Canada)
Explosion Proof (USA)
Flame Proof (Europe)
Flame Proof (Australia)
Flame Proof (Brazil)
1.
Use only approved, suitable size hubs for watertight applications.
2.
EMC performance available upon request.
Page EN-4
terminal block, 2.5 mm
stranded, maximum
plastic
OR
epoxy coated aluminum with gasket
Type 6/NEMA 6/IP67
2 x ½" NPT or 2 x PG 13.5
ETFE or PVDF copolymer
threaded: 2" NPT, 2" BSPT, or 2" G
optional flange adapter, to 3" ASME, DIN 65PN10, and JIS
10K3B
CSA
CSA
CSA
CSA
FM
ATEX II 2G EEx dmb IIC T5 Gb
ANZEx Ex ds IIC T5 IP65/IP67 Class I, Zone 1 
INMETRO Br-Ex d mb IIC T5
Pointek ULS200 – QUICK START MANUAL
2
(14 AWG) solid 1.5 mm
1
2
, FM, CE
, C-TICK
US/C
Class I, II, Div. 2, Gr. A, B, C, D, F, G
Class III
2
, FM, CE
, C-TICK
US/C
Class I, Div. 1, Gr. A, B, C, D
Class II, Gr. E, F, G
Class III
Class I, Div. 1, Gr. A, B, C, D T4
Class I, Zone 1, IIC T4
Class II, III, Div. 1, Gr. E, F, G T4
DIP A21 T5 IP65/IP67
2
(16 AWG)
7ML19981XB83
